Blum  |  SKU: 652299

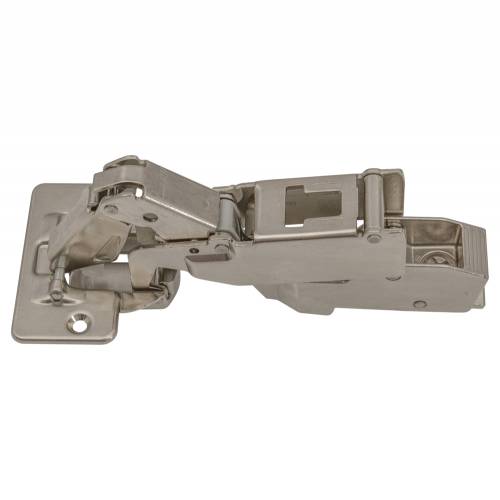

Blum 170 Degree Half Crank Hinge

$690 Each

Fasteners Not Included

Description

  • Blum 170 Degree Self-Closing Half Crank Hinge for inset or small overlay cabinet doors.
  • Note: This is the hinge only, and does not come with mounting plates or hardware. Select a bundle page below for complete units.

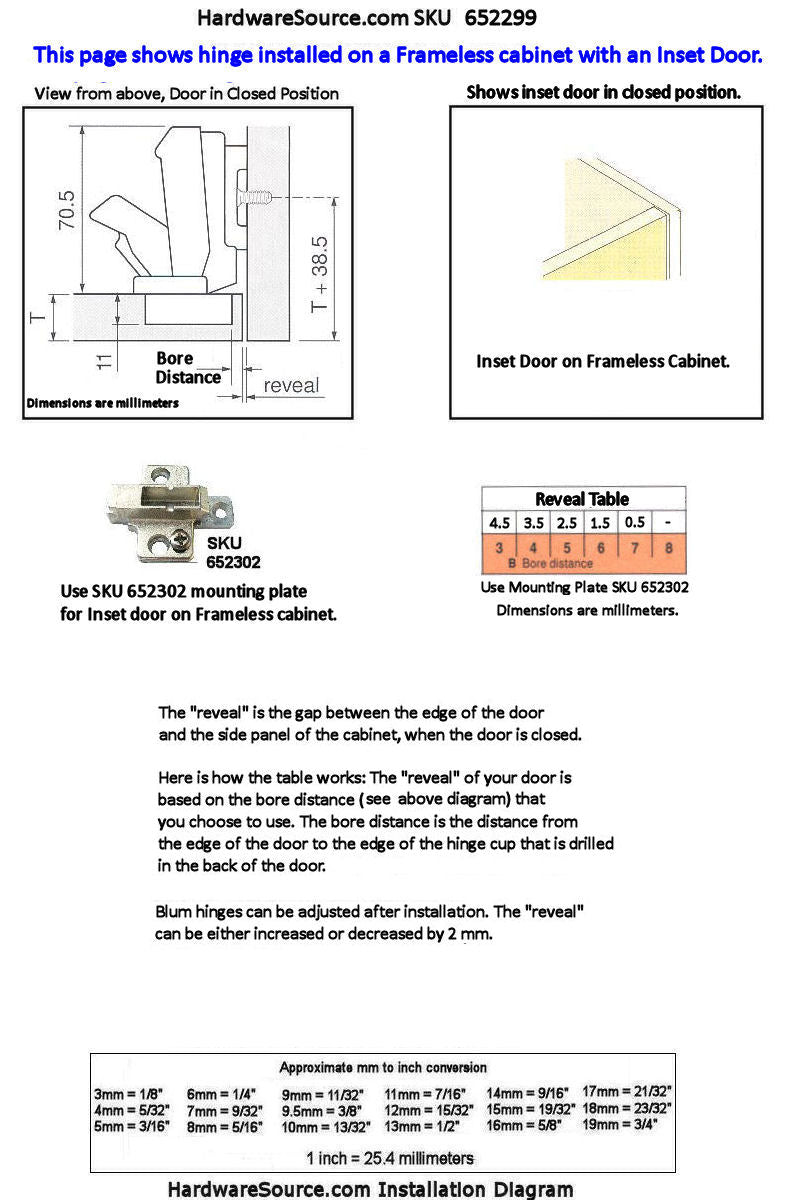

  • For frameless inset applications, check out our bundle page here.

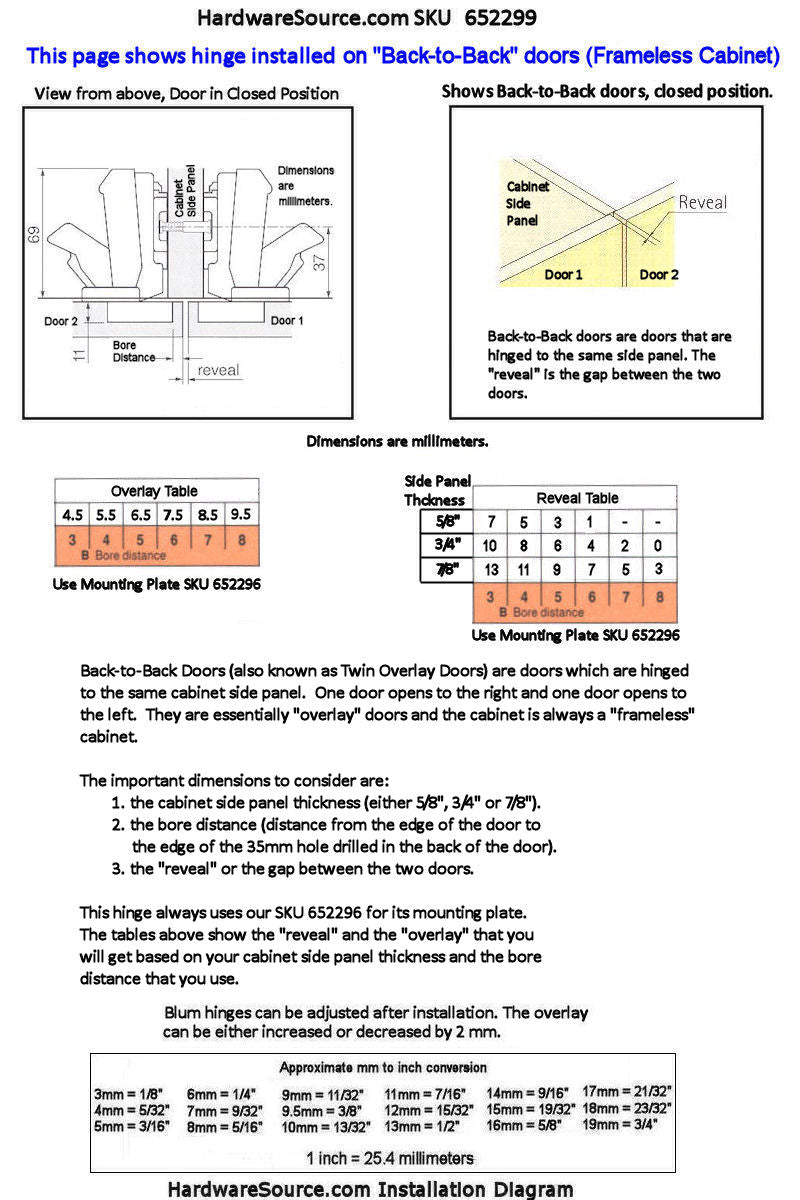

  • For back-to-back and small overlay applications, check out our bundle page here.

Available for purchase separately:

  • Plastic Dowels and dowel screws, used on manufactured wood products where wood screws do not hold well found here.
  • Restriction clip. Limits angle of opening to 130 degrees (SKU# 652033).
  • Blum Touch Latch for Self-Closing Doors found here.
  • 35mm Forstner Bit, for new installations (SKU# 204000).
  • Ecodrill, installation jig, for new installations (SKU# 701000).

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 652299

  • Manufacturer
    Blum
  • Model Number
    B71T665
  • Finish Name
    Nickel
  • Material
    Steel
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    170 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Screws (Our SKU 652360)
