Blum Tip-On Touch Latch for Self-Closing Doors

Overview

• Blum Tip-On cabinet touch latches open your cabinet door when you give the door a gentle push inward.
• For use with Self-Closing European hinges only. If you have non self-closing hinges, see our SKU G10007 (also found under related products).
• Works for both overlay and inset doors.
• Works best for doors that are 12" or wider.
• The Tip-On latch will push the door open wider than most other touch type latches (approximately 1.5"). This allows your hand to reach behind the door and pull it open.
• To close the cabinet door, simply push the door closed. Your existing self-closing hinge will keep the door closed against the cabinet frame. This Blum Tip-On does not use magnetic action.
• This product is sold in components. Please make sure to order one Tip-On and one Holder per door.

Holders and Installation

• Made to be installed in frameless cabinets (cabinets without a face frame).
• May be installed in face-frame cabinets by installing a block of wood behind the cabinet face-frame
• The Holder is available in two types
• In-Line Type (screw holes are not visible), Blum 956A.1201 / SKU 268818
• Wing Type (2 attachment screw holes are visible), Blum 956A.1501 / SKU 268820

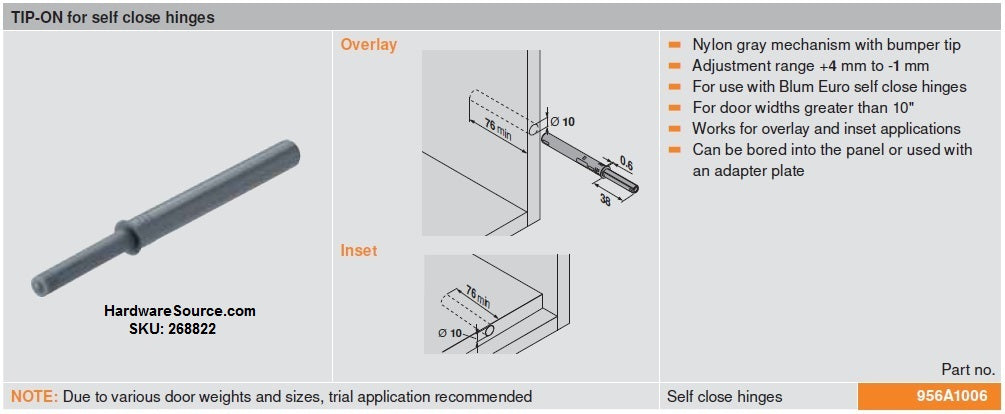

• Tip-On can be installed without a holder
• Drill a 10mm hole in the cabinet side panel
• Install the "Tip On" in the 10mm hole
• See the documents found under Downloads for further details on this installation method
• Screws are not included with either of the holders, but they are available to purchase separately. Order two #6 flat head screws (SKU 652360) per holder.
