D&D Technologies  |  SKU: 928520

SureClose Safety Bolt-On Hinge, Heavy Duty

Fasteners Not Included

Description

  • NOTE: Post mounting brackets sold separately. The recommended setup requires two hinges and two mounting brackets.
  • SureClose hinges for bolt-on applications.
  • Allows a gate to swing to a maximum of 90 degrees in one direction.
  • A separate gate stop (not included) must be installed to restrict gate from opening past 90 degrees. See the documents found under Downloads for further details.
  • Features final snap-close action which increases speed at the end of closing. This is ideal when using electric/coded locks.
  • Hinge requires face of gate and post to be flush.
  • Requires minimum post size of 3" x 3".
  • Self-closing or non self-closing versions available.
  • See swing diagram above for a clear visual representation of hinge functionality.
  • Hydraulics are concealed within the post, providing a controlled and quiet close in a tamper resistant design that will not leak.
  • Adjustable self-closing speed.
  • Does not offer resistance if closed quickly in an emergency.
  • Features dual thrust ball bearings to help withstand heavy loads.
  • Hinge gap between frame and gate is 1/2".

These hinges can be used in any of the following combinations:

  • Use 2 of our SKU 928520 to self-close a gate up to 260 pounds*.
  • Use 1 of our SKU 928520 and 1 of SKU 928512 to self-close a gate up to 180 pounds*.
  • Use 2 of our SKU 928512 to hold a gate up to 1500 pounds* (will not self-close).
  • * Weight ratings based on a maximum gate size of 72" high x 40" wide.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: G10055

  • Manufacturer
    D & D Technologies
  • Model Number

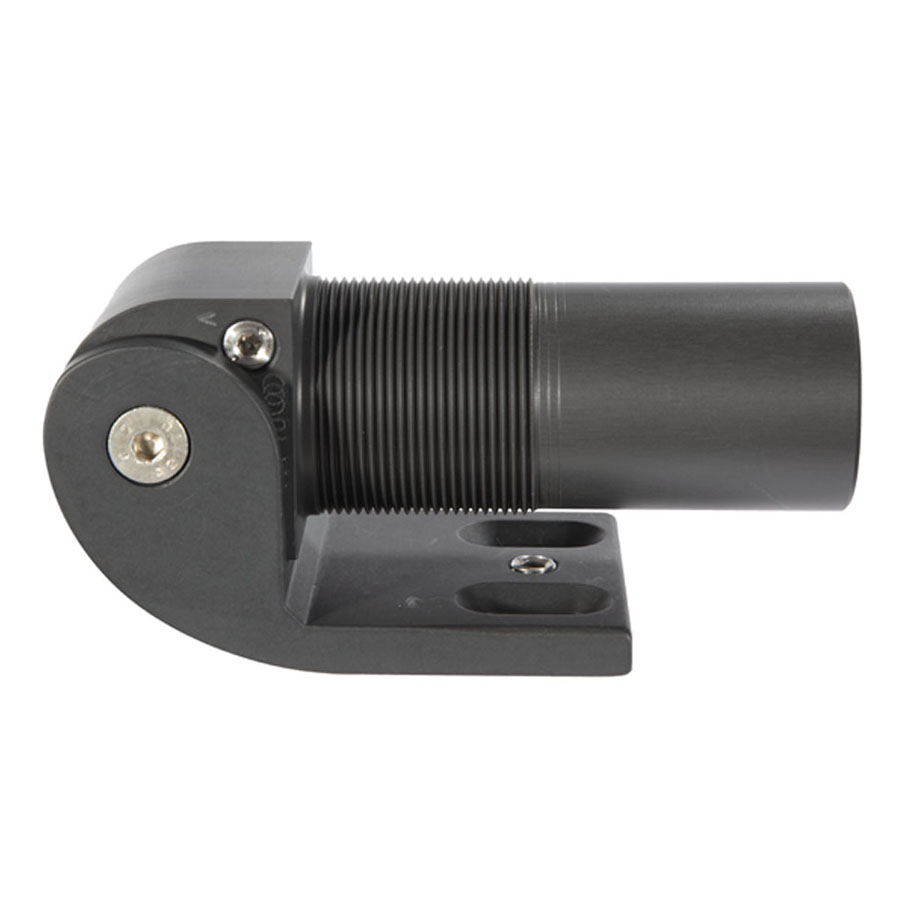

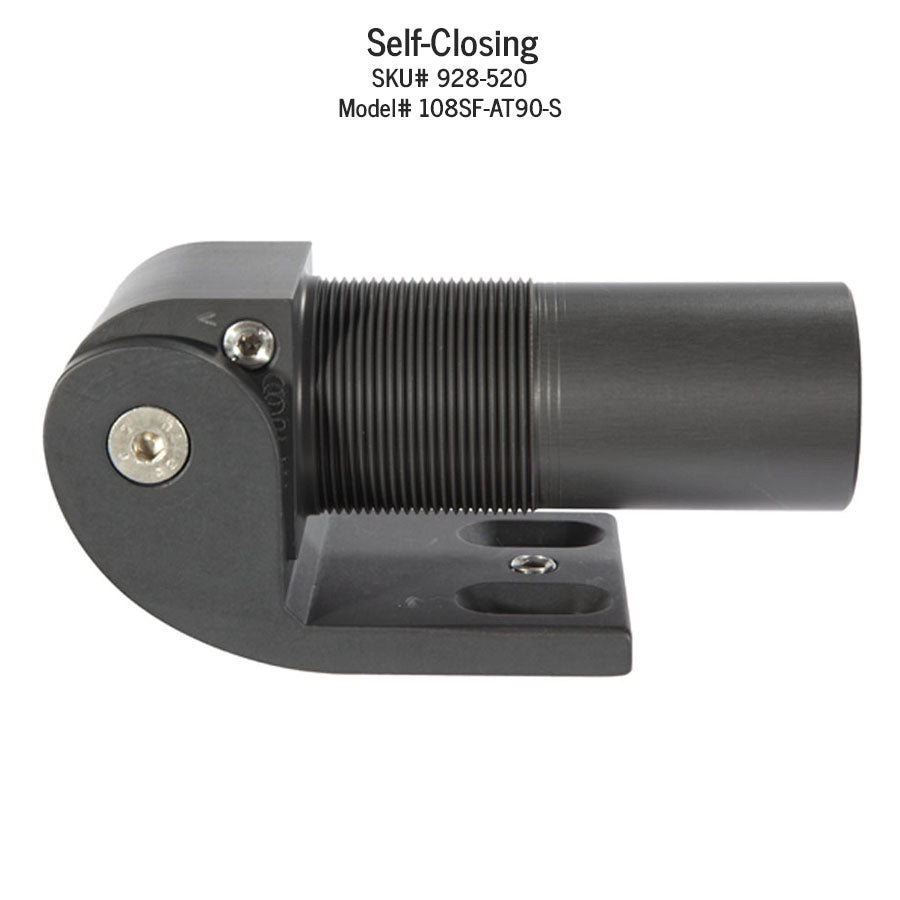

    108SF-AT90-S (Self-Closing)

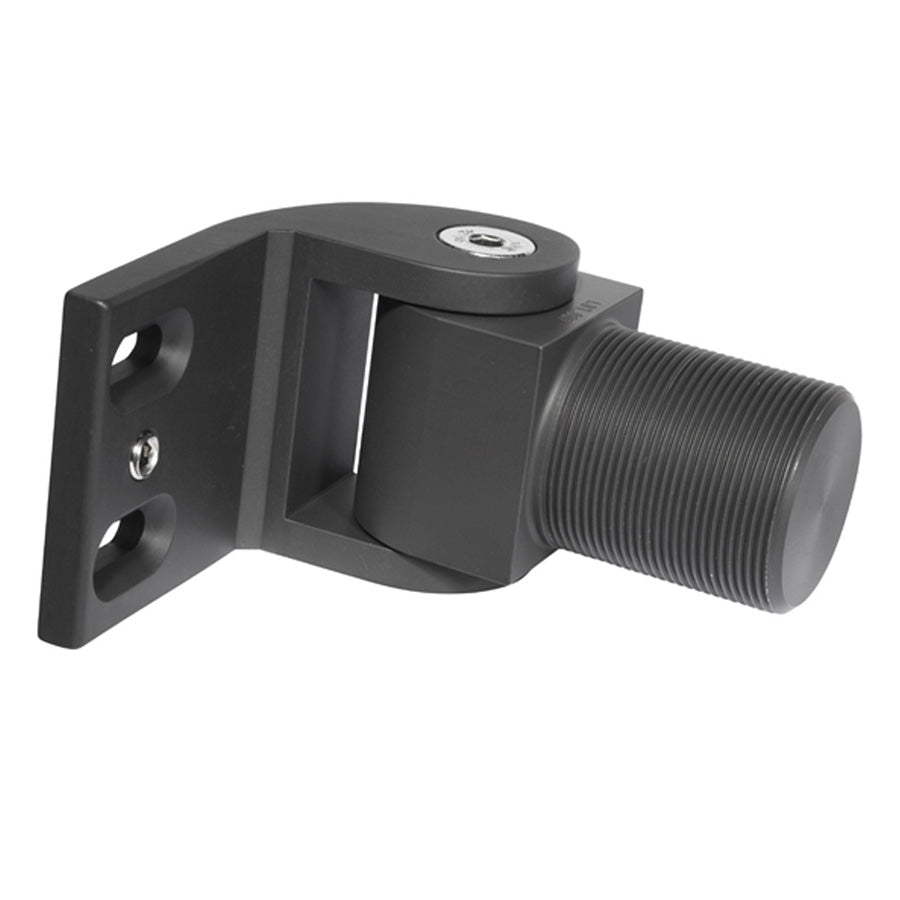

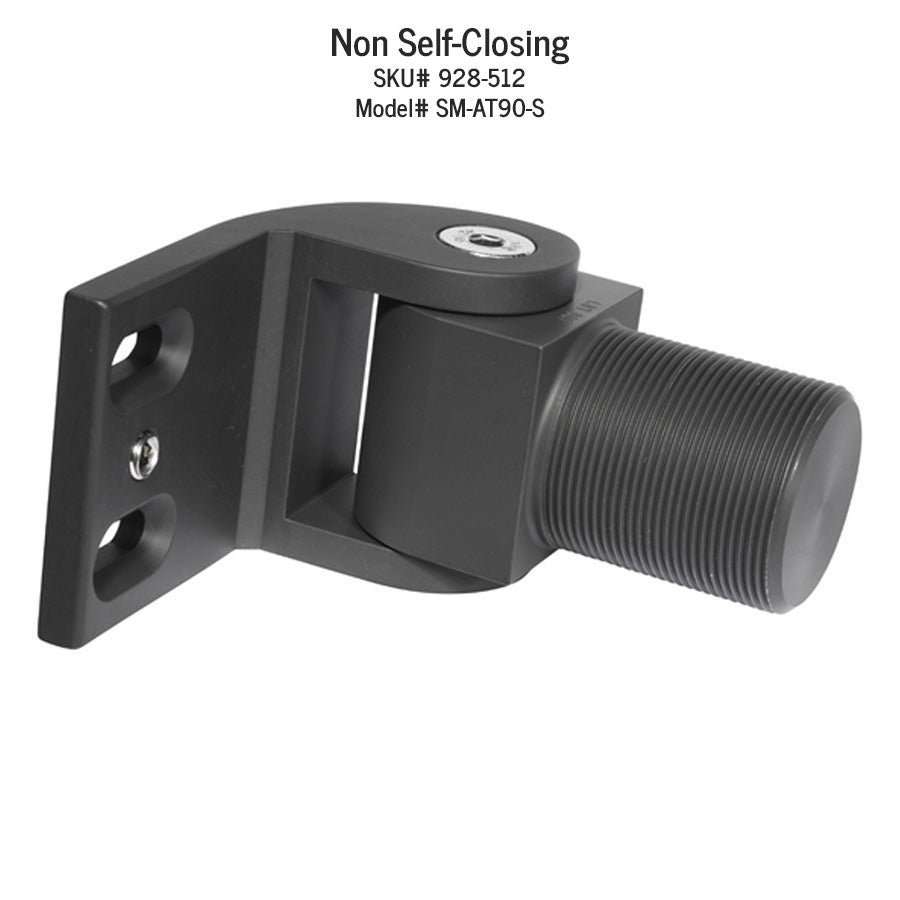

    SM-AT90-S (Non-Self-Closing)

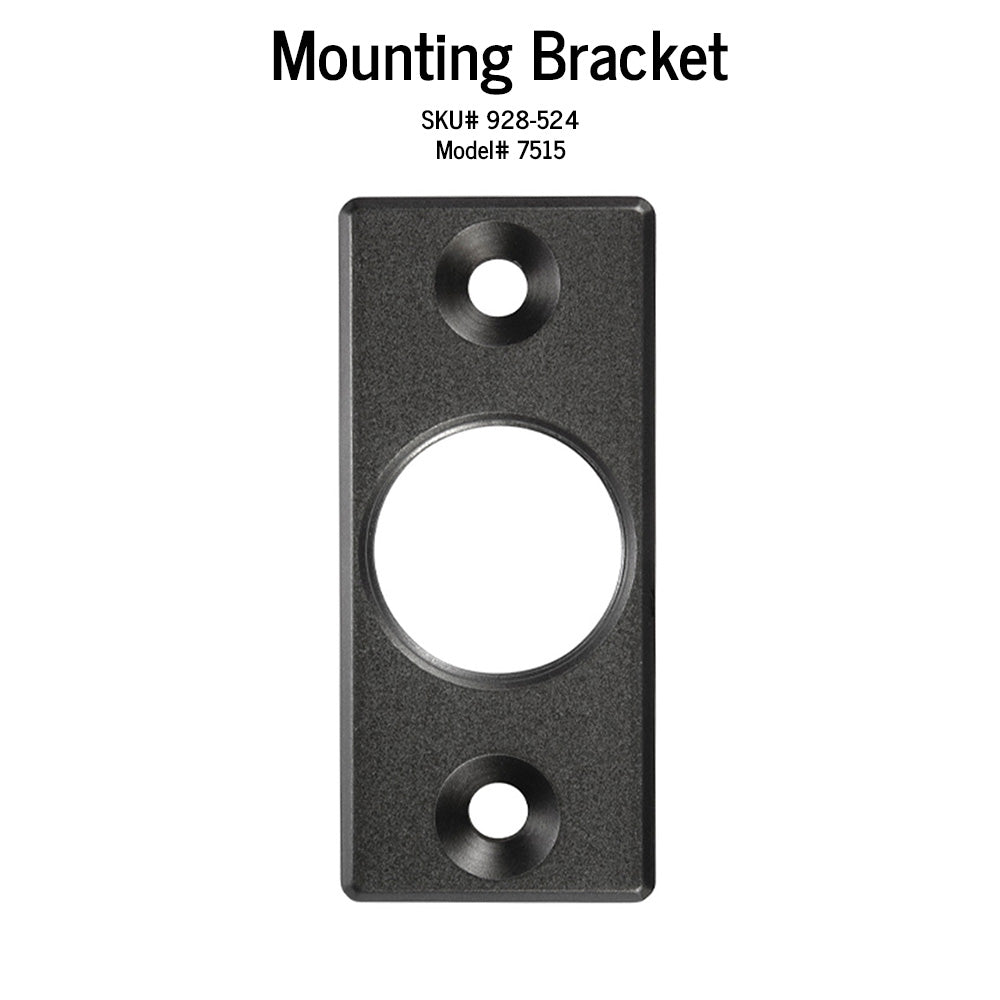

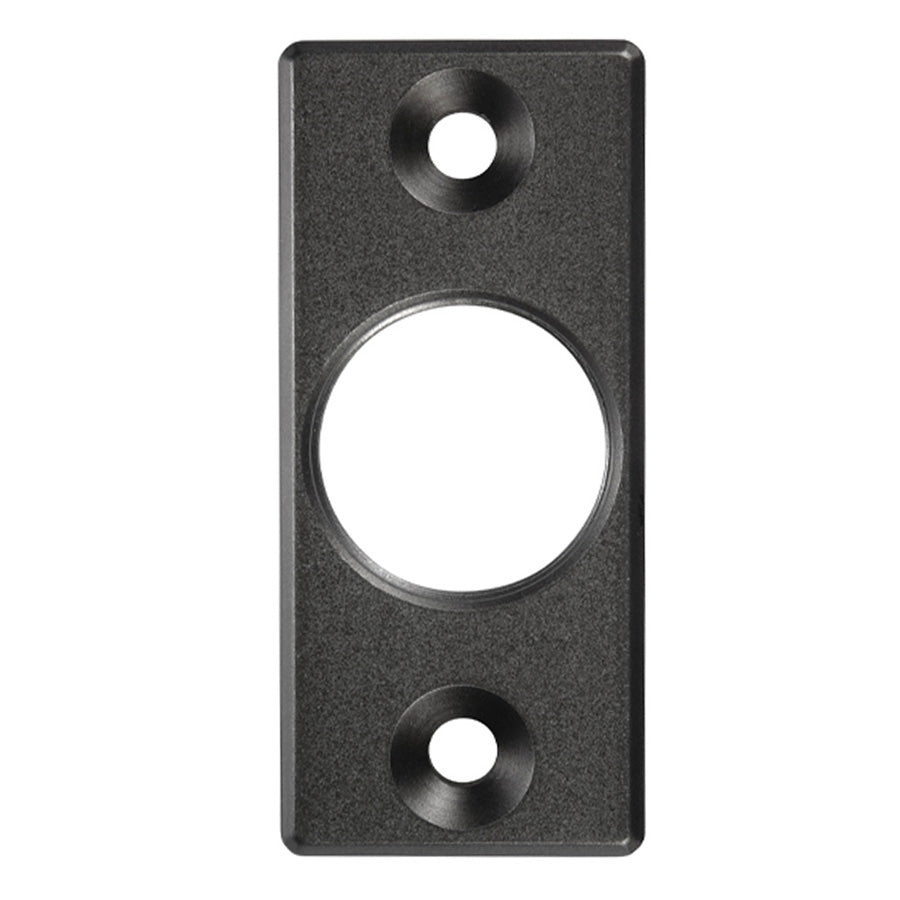

    7515 (Mounting Plate)
  • Finish Name
    Black
  • Material
    Steel
  • Heavy Duty Hinge Type
    Bolt-On
  • Bearings
    Ball Bearing
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    #14 Flat Head Fasteners
