SureClose Non Safety Bolt-On Hinge

Fasteners Not Included

Description

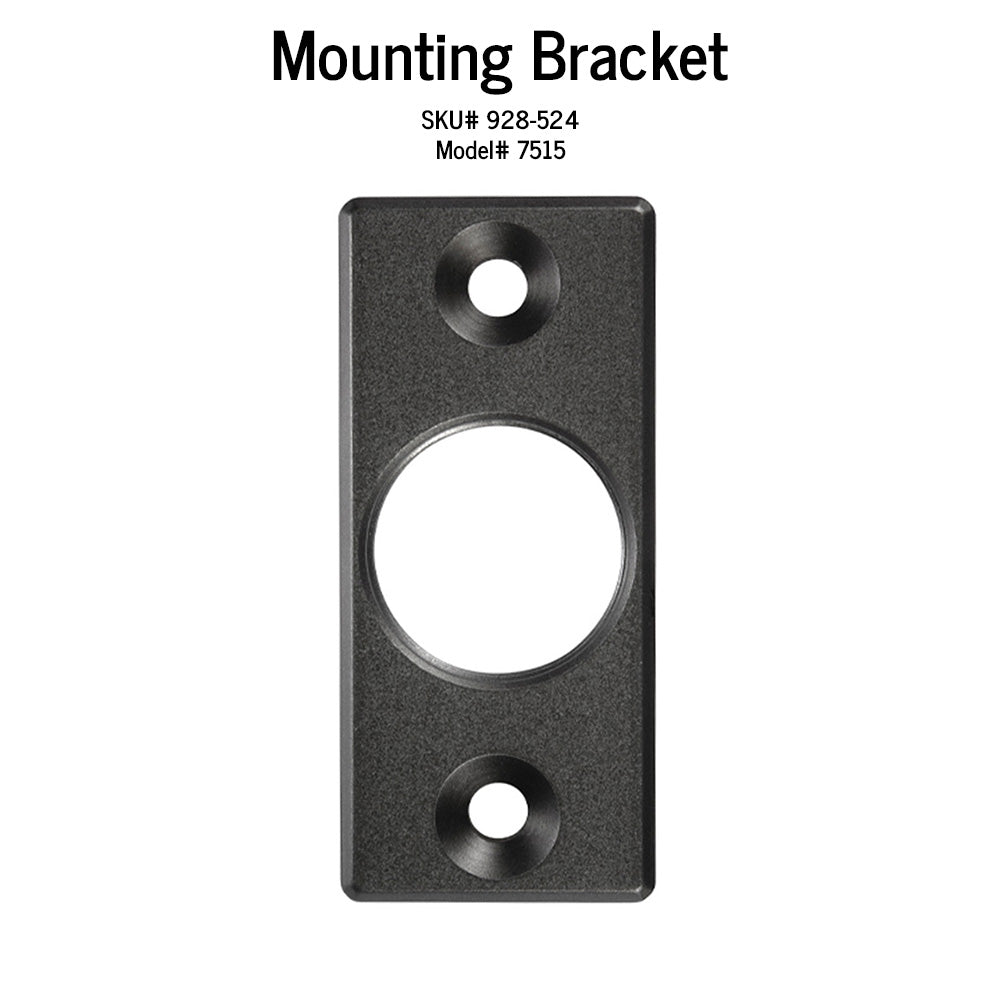

  • NOTE: Post mounting bracket sold separately. The recommended setup requires two hinges and two mounting plates.

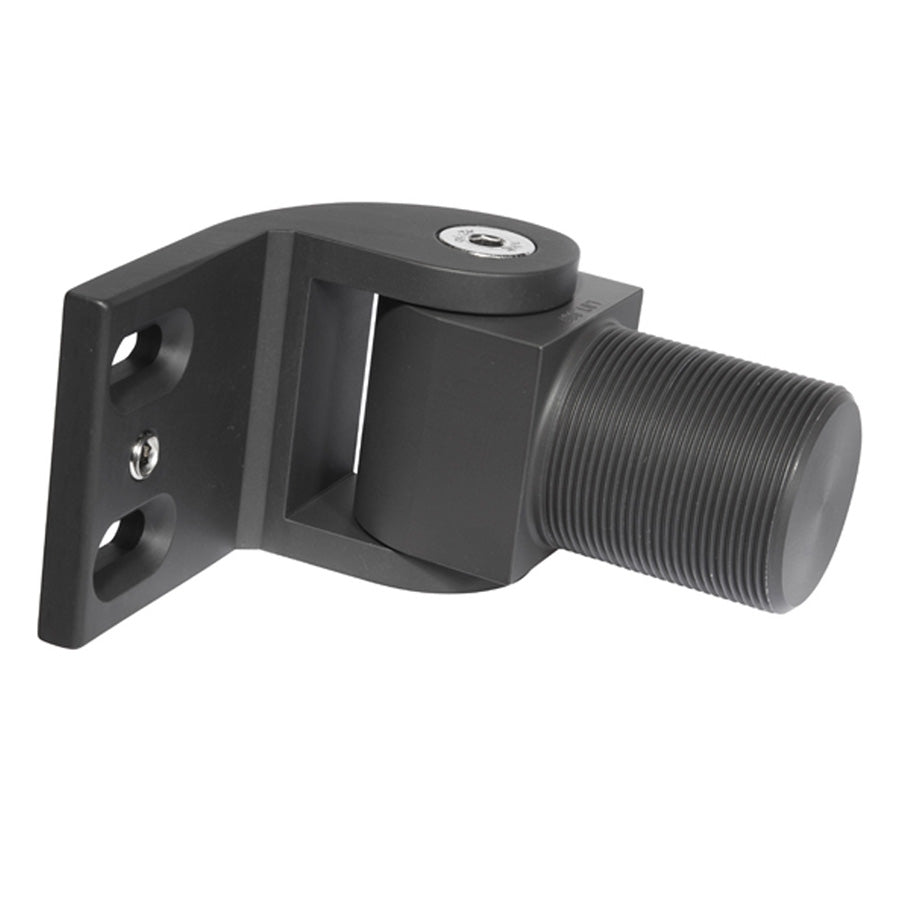

  • SureClose hinges for bolt-on applications.
  • Allows a gate to swing to a maximum of 180 degrees in one direction.
  • Hinge requires face of gate and post to be flush.
  • Requires minimum post size of 2" x 2".
  • Self-closing or non self-closing versions available.
  • Self-closing version closes from 0 to 85 degrees and holds open from 86-180 degrees.
  • Hold open feature renders this hinge not suitable for child/pool safety.

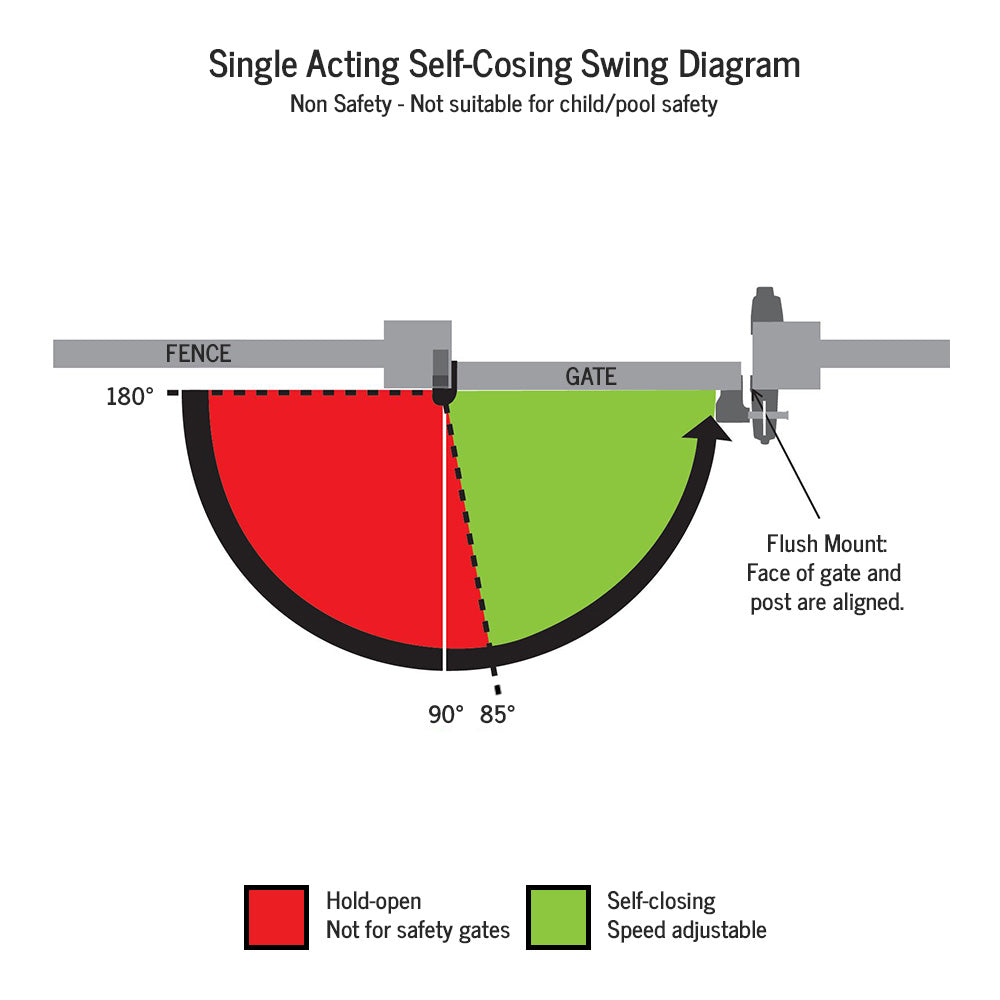

  • See swing diagram above for a clear visual representation of this info.
  • Hydraulics are concealed within the post, providing a controlled and quiet close in a tamper resistant design that will not leak.
  • Adjustable self-closing speed.
  • Does not offer resistance if closed quickly in an emergency.
  • Features dual thrust ball bearings to help withstand heavy loads.
  • Hinge gap between frame and gate is 1/2".

These hinges can be used in any of the following combinations:

  • Use 2 of our SKU 928514 to self-close a gate up to 180 pounds*.
  • Use 1 of our SKU 928514 and 1 of SKU 928512 to self-close a gate up to 90 pounds*.
  • Use 2 of our SKU 928512 to hold a gate up to 1500 pounds* (will not self-close).
  • * Weight ratings based on a maximum gate size of 72" high x 40" wide.

Warranty

WARRANTIES & LIABILITY

All D&D Technologies’ (“D&D”) proprietary* products are warranted to be free of defects in materials and workmanship to the original purchaser for as long as they own the product.

If a structural defect appears, the original purchaser may return the item, freight prepaid, together with proof of purchase to D&D or its approved international agents.

D&D or its agent will, at their discretion, repair or replace the defective item or part without charge to the purchaser.  THIS WARRANTY SHALL NOT APPLY WHEN the product has been tampered with, when repairs or attempted repairs have been made by unauthorized persons, where the item has been subjected to misuse, abuse, accident or damage in transit, or where the installer has not followed the instructions set out during installation, operations or Maintenance Requirements.

IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. No warranty is given other than that set out above. No other express or implied warranties (including statutory warranties) apply, other than warranties which may not be legally excluded.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: G10048

  • Manufacturer
    D & D Technologies
  • Model Number

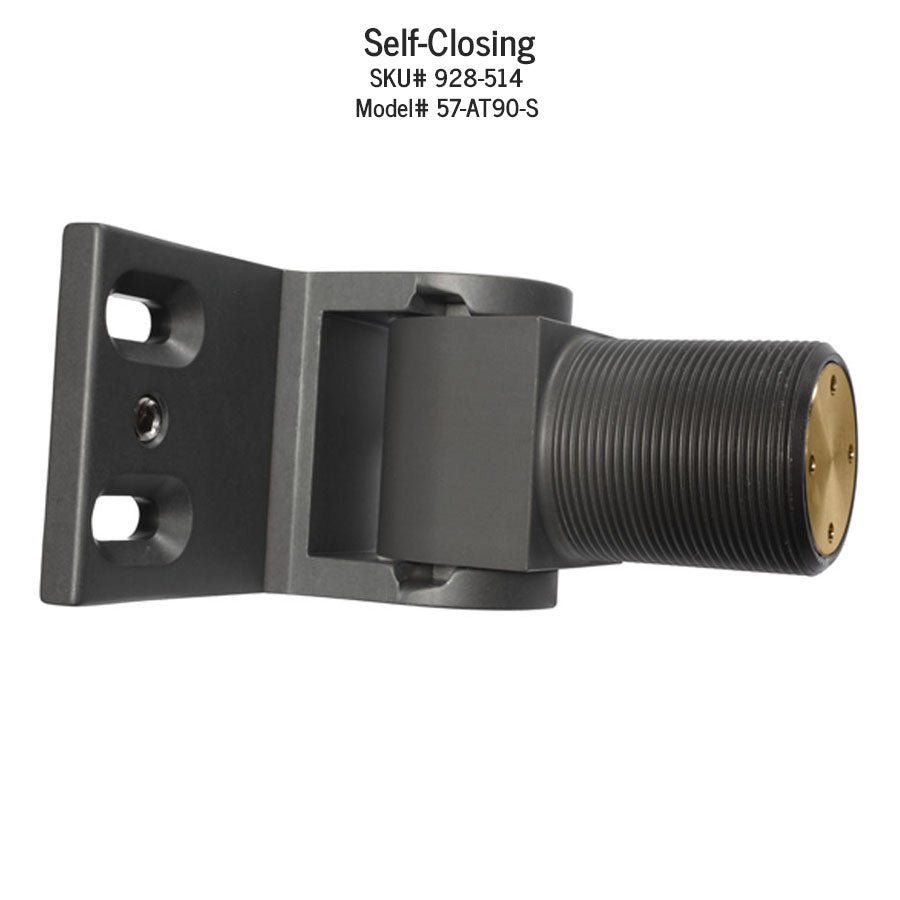

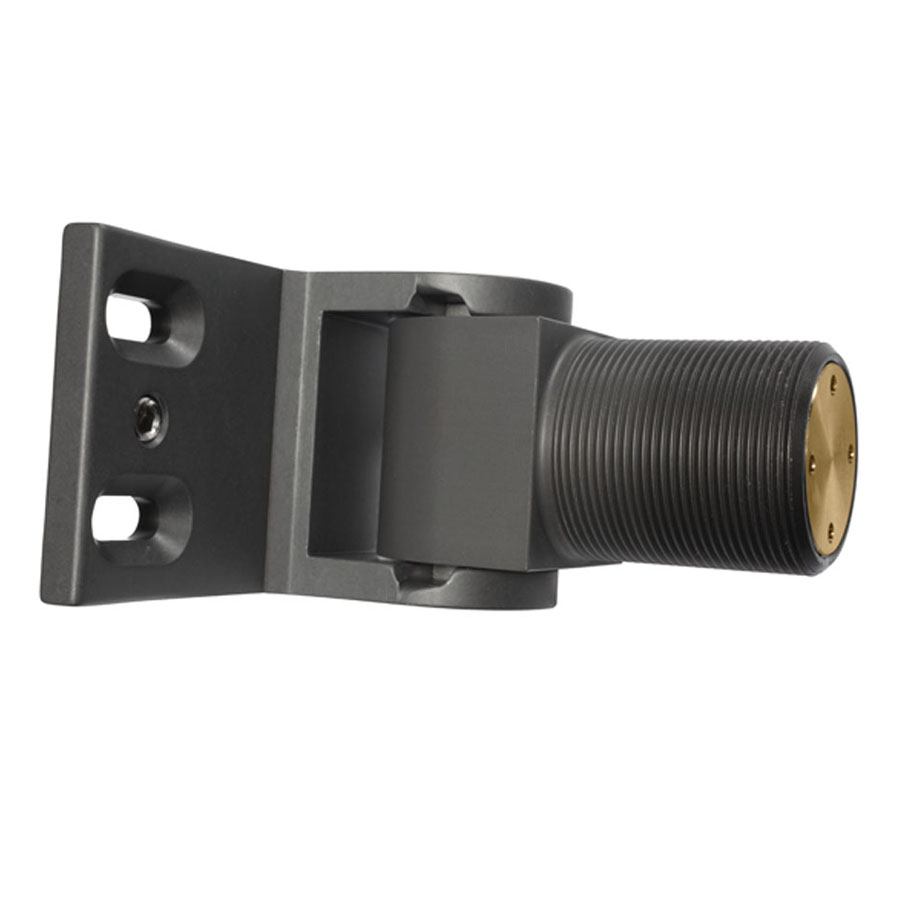

    57-AT90-S (Self-Closing)

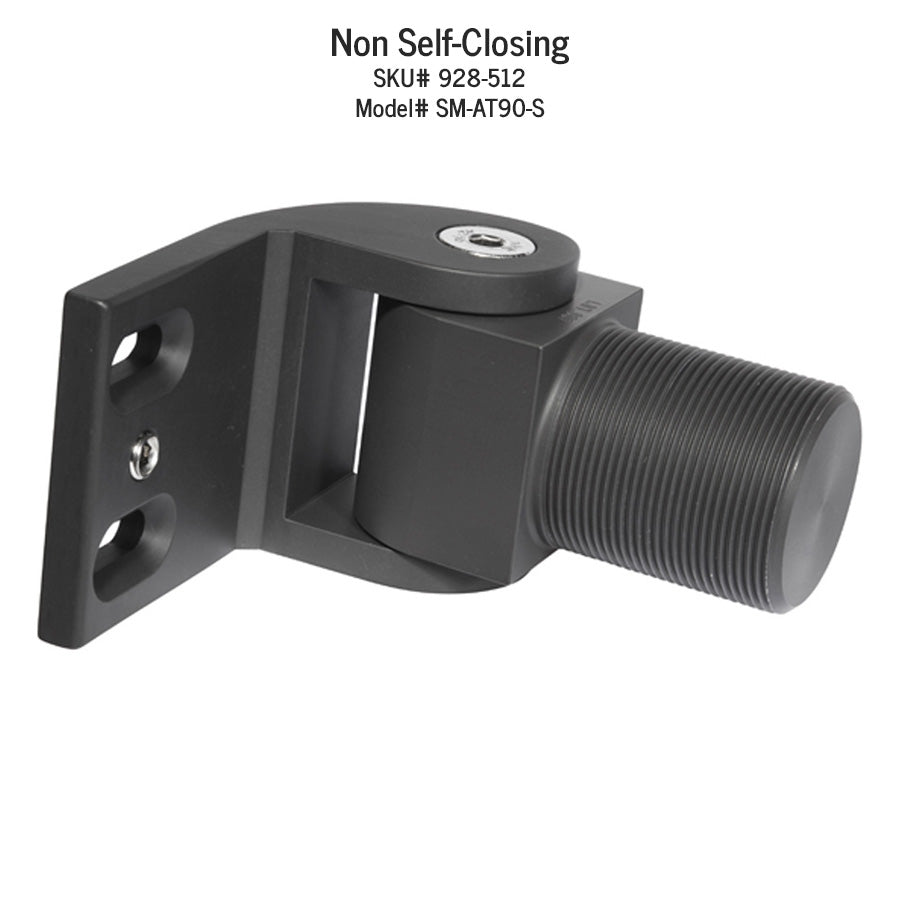

    SM-AT90-S (Non-Self-Closing)

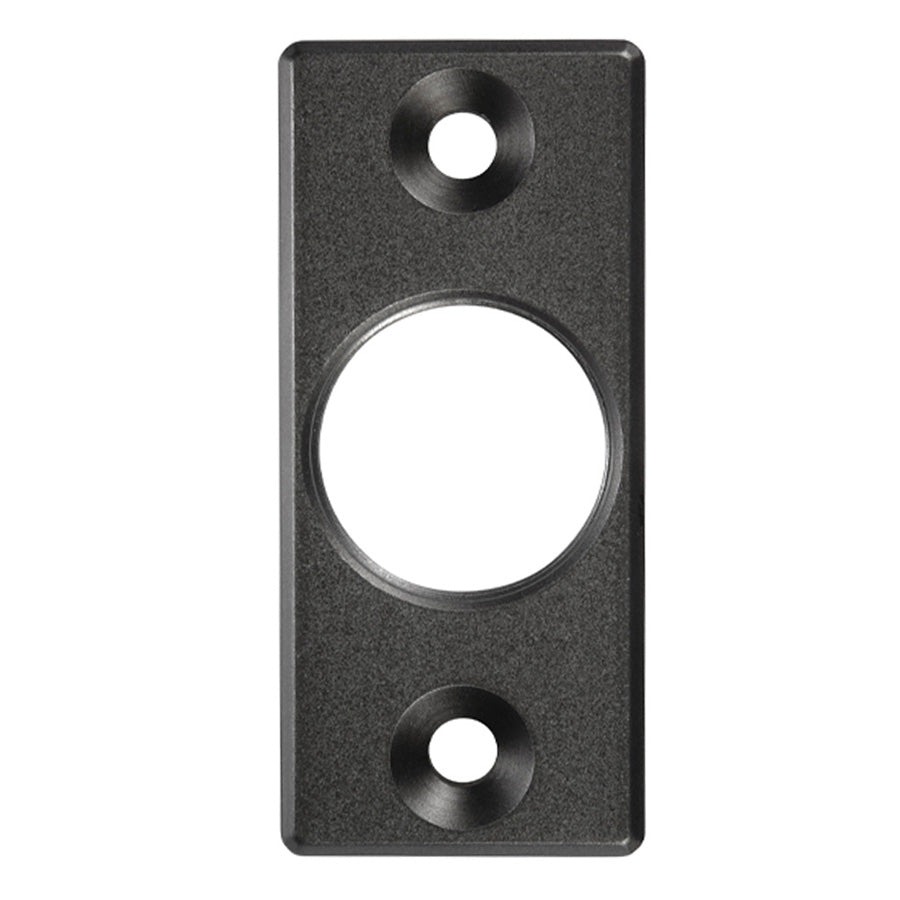

    7515 (Mounting Plate)
  • Finish Name
    Black
  • Material
    Steel
  • Heavy Duty Hinge Type
    Bolt-On
  • Bearings
    Ball Bearing
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    #14 Flat Head Fasteners
