Sugatsune  |  SKU: 658903

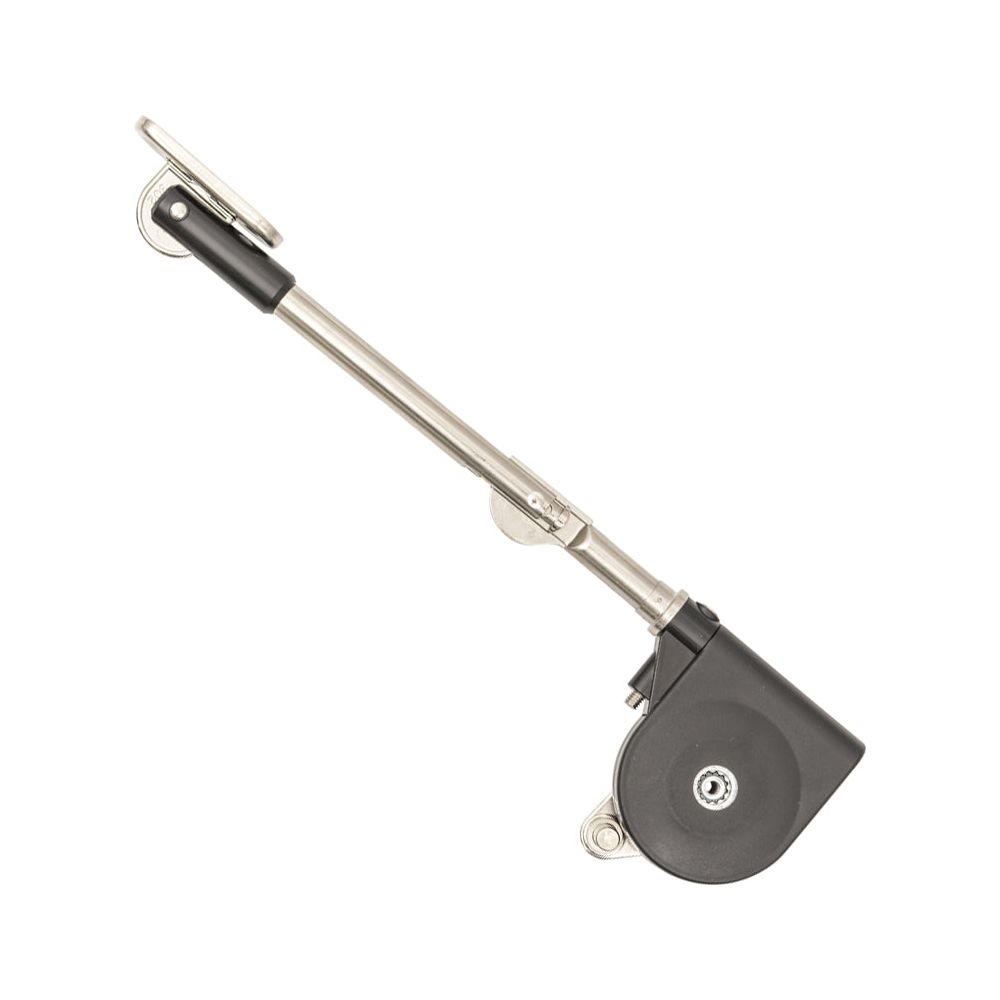

Soft Down Support

$2310 Each
Finish Name: Black

Description

  • Soft down support for vertical cabinet doors, toy boxes, bench seats, and box lids.
  • Note: this product requires hinges to be installed on the door (either European hinges, piano hinge or butt hinges). Hinges are not included and must be ordered separately.
  • Before ordering check the weight chart at the document found under Downloads. Your door weight must be between the minimum and the maximum weights shown for its corresponding door height. The chart is for two stays on a door. If one stay is used, divide the minimum and maximum weights by 2.
  • This product is sold by the each. In many cases, you will need to order two stays per door. Again consult the weight chart.

For Vertical Cabinet Doors

  • A vertical cabinet door is one which is hinged at the top and opens from the bottom.
  • This soft down stay holds the door when it is in the open position and allows the door to gently close when pulled shut.
  • This product can only be used on frameless cabinets, not for face frame cabinets.
  • Can be used on the following door types:
    • An overlay door that is hinged with a European hinge on a frameless cabinet.
      • For this installation type use our SKU 652020 with mounting plate SKU 652301.
      • If you drill a 3/16" bore distance this will give you a door with a 1/2" overlay.
      • Bore distance is the distance from the edge of the door to the edge of the 35mm cup drilled in the back of the door.
    • An inset door that is hinged with a European hinge on a frameless cabinet (as shown in the video)
      • For this hinge use our hinge SKU 652022
      • And use mounting plate SKU 652296
    • An inset door that is hinged with a piano or butt type hinge
    • An overlay door that is hinged with a piano or butt type hinge
  • Stay is reversible, may be used on either the left hand or right hand side of the cabinet.

For Lids and Seats

  • This soft down lid supports the door when it is in the open position and allows the door to gently close when pulled shut.
  • Please click on the links below for specific installation information.
  • Can be used on the following lid or door types:
    • An overlay lid or door that is hinged with a European hinge
    • An inset lid or door that is hinged with a piano or butt type hinge
    • An overlay lid or door that is hinged with a piano or butt type hinge

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10465

  • Manufacturer
    Sugatsune
  • Model Number
    SDS-C301N
  • Material
    Steel
  • Handing
    Reversible
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Matching Fasteners

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet
Blum 110 Degree Hinge for Frameless Overlay Cabinets - Bundle
View details
Blum 110 Degree Hinge for Frameless Inset Cabinets - Bundle
View details

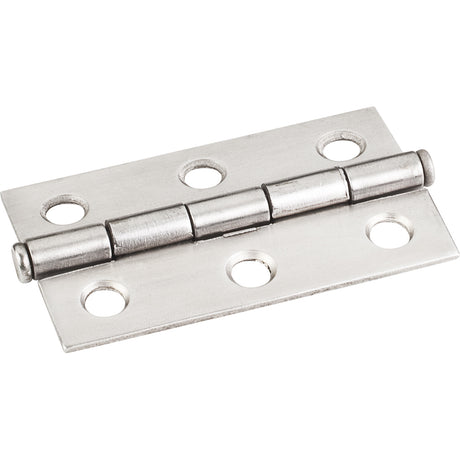

Small Stainless Steel Butt Hinge
View details

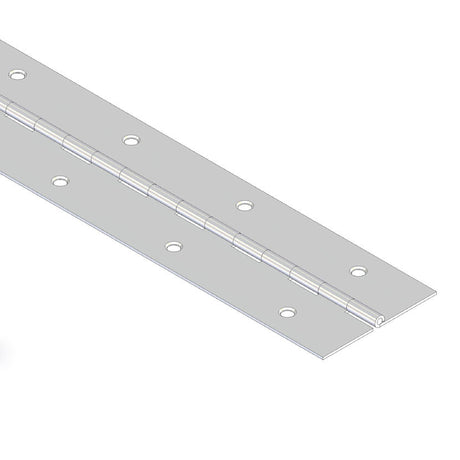

72" Nickel Plated Piano Hinge
