Blum 110 Degree Hinge for Frameless Inset Cabinets - Bundle
Couldn't load pickup availability
Description
Description
- Please reference the minimum reveal information document under Downloads to verify if this bundle will work for you.
- Blum's full cranked clip top hinge for frameless inset cabinets.
- Available in self-closing and free swinging functionalities.
- ADVISORY: This hinge requires that the cup drilled in the back of your door is at least 13mm (1/2" deep). Prior Blum Clip top hinges required a 12.5mm cup depth. We recommend that you measure the cup depth on your doors before ordering. Many cabinet makers used a 13mm cup depth even though the requirement was only 12.5mm so yours may actually already be drilled to 13mm. If your cup depth measures only 12.5, purchase the hinge cup spacer plate which you can install under the hinge cup to make up for the 0.5 mm difference. The hinge cup spacer plate is offered as an optional accessory.
What's Included
- 1 Blum Full Cranked Hinge
- 1 Blum 0mm Frameless Mounting Plate
- Four #6 x 5/8" screws for the hinge and the mounting plate
Available for purchase separately:

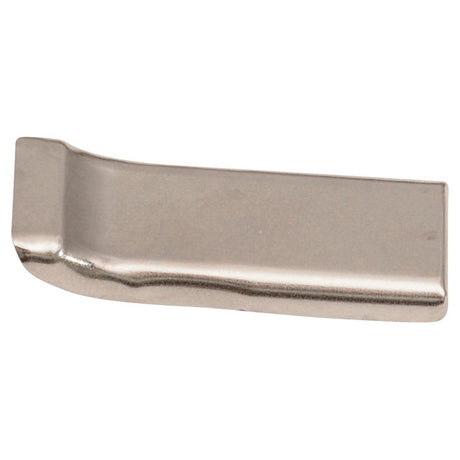

- Cover Plate for Arm Part of Hinge - Hides the screws on the hinge arm providing a cleaner appearance
- Cover Plate for Cup Side of Hinge - Hides the screws on the cup side providing a cleaner appearance
- Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action
- Note: Soft close does not work with free swinging hinge.
- Cup Spacer Plate - For doors with only a 12.5mm cup depth
- Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
- Restriction clip. Limits angle of opening to 86 degrees (SKU 701113)
- Blum Touch Latch for Self-Closing Doors (SKU 268822)
- 35mm Forstner Bit, for new installations (SKU 204000)
- Ecodrill, installation jig, for new installations (SKU 701000)
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10102
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeFlush Inset
-
Soft CloseNo
-
Self-ClosingYes, No
-
Plate Connection Type
-
Opening Angle110 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
