Generic European Hinge for Full Inset Doors - Bundle

272215, 272203, 652360

In stock

Mounting Plate Type

Regular price $9.46 Per Bundle
Sale price $9.46 Per Bundle Regular price

  • Fast Shipping
  • Secure Checkout
  • Trusted Since 1892

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Resources

  • Generic European style hinge bundle made for 3/4" thick door.
  • Hinge is fully adjustable after installation.
  • For cabinets with full inset doors and no face-frame (frameless).
  • A 3mm bore distance (distance between the edge of the door and the edge of the 35mm cup drilled in the back of the door) will produce a reveal of 1mm. The reveal is the gap between the edge of the door and the cabinet side panel.

Mounting Plates

  • Two different mounting plate options are offered. Both are 0mm plates.
  • The "For Wood Screws" mounting plate uses two #6 x 5/8" wood screws (included).

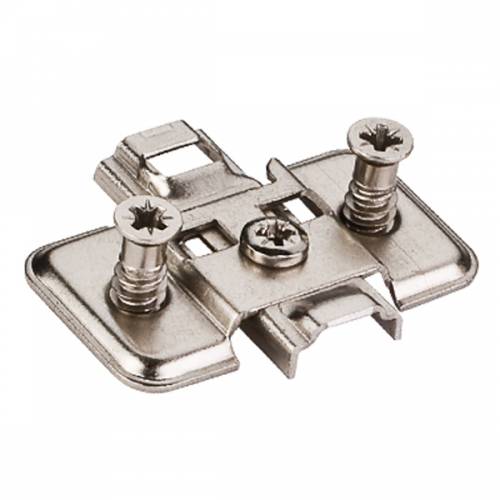

  • The "6mm Screws Preattached" mounting plate is made to be used with cabinets where there are holes pre-drilled for press-in shelf supports. Both mounting plates offer full adjustability.

What's Included

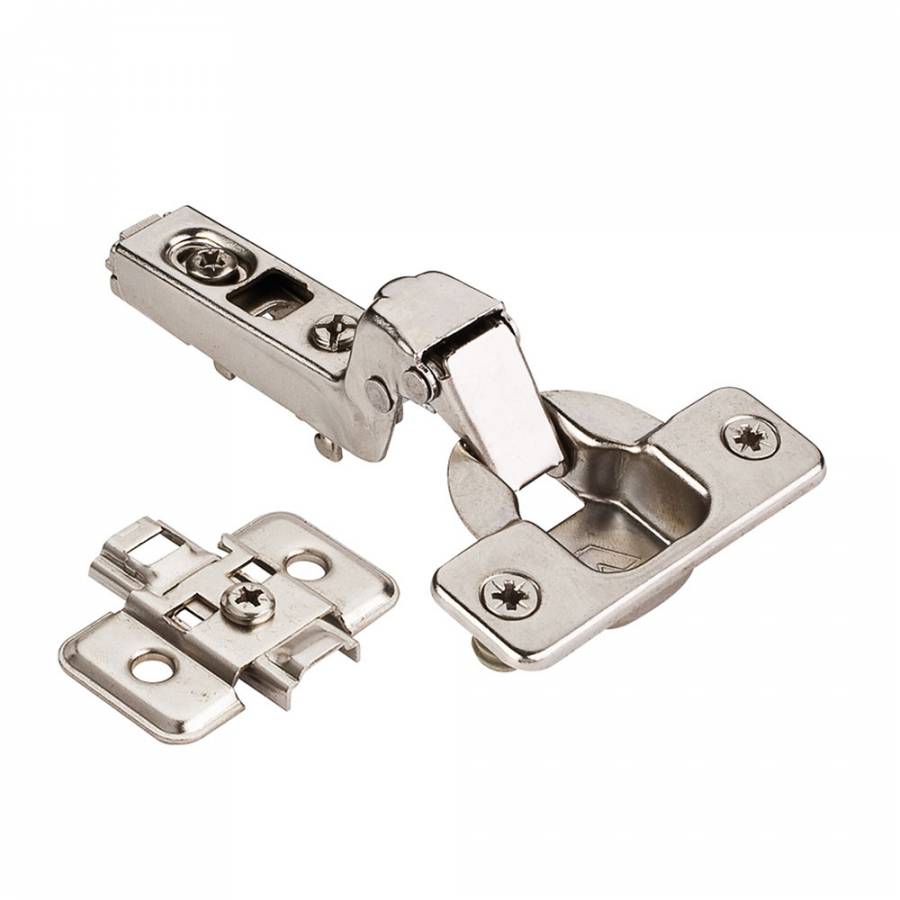

  • 1 x Generic Full-Cranked European Hinge
  • 1 x Frameless Mounting Plate (two options)
  • 2 x Dowels and Screws - preattached to the hinge
  • 2 x #6 x 5/8" Flat Head Wood Screws

Notes

  • Dowels and screws come preattached to the hinge. Dowels are typically used when hinges are attached to MDF or particle board material. If mounting in solid wood, remove the dowels and use the included wood screws.
  • A European hinge is made up of two parts, a hinge and a mounting plate that snap together. Please make sure to order at least two hinge bundles for each door you are hanging. Larger doors may require more than two.

Specifications

Finish NameNickel
MaterialSteel
Cabinet Door TypeFlush Inset
Soft CloseNo
Self-ClosingYes
Plate Connection TypeClip-On
Opening Angle110 Degrees
Cup Diameter35mm
Screw Hole Spacing45mm (1-3/4")
Mounting Hardware IncludedYes
Mounting Hardware TypeTwo #6 x 5/8" Flat Head Wood Screws

Downloads

 CA Prop 65 Warning

Generic European Hinge for Full Inset Doors - Bundle

$9.46

How long does it take to get my hardware once it's been ordered?

The delivery time depends on how far you live from our San Diego warehouse. Generally, your order will reach you in 1 to 5 business days. Shipments do not move on weekends and holidays.

Do you ship merchandise outside the United States?

At this time, we only ship to addresses in the continental United States, Alaska, and Hawaii. For APO/FPO/DPO and Canadian orders, please email info@hardwaresource.com with a list of the SKU numbers and quantities you would like to purchase, along with your complete ship to address. Once we receive this information we will email you a shipping quote. Please note: Canadian shipments have a $50.00 minimum order.

Some of your hinges are sold by the each and some sell by the pair. What is the difference?

When the unit of measure says “pair” that means two hinges. Usually you need one pair of hinges per door. When the unit of measure says “each” that means one hinge. You would usually order 2 “each” hinges per door.

I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?

Unfortunately, hinge manufacturers have never standardized the location of their screw hole patterns. Every manufacturer puts their screw holes in a slightly different place. This means that when you replace hinges you will almost certainly have to do some filling and redrilling. The exception to this is Architectural door hinges which are built to a standardized template for each size hinge.
