Blum  |  SKU: 268045, 268044, 268000

Blum Aventos Stay Lift System

$5955 Per Pair
Weight Rating

Description

  • This Blum Aventos HK-S Stay Lift System allows the door to open easily, remain in any desired position and close silently.
  • Door opening angle is 107 degrees.
  • The Blum Aventos Stay Lift System is ideal for smaller cabinets with lift-up doors (cabinet heights of 7-3/8" to 15-3/4" and cabinet widths of 15" to 39").
  • Uses Blum's Blumotion soft-close technology to softly and quietly close the door.
  • Can be installed on cabinets with either overlay doors or inset doors.
  • Fasteners and a gray plastic cover (not shown in photo)are included with the purchase. Door and cabinet shown in image are not included.
  • This product is sold by the pair. Order one pair per door you are installing.
  • Mounting plates are mandatory and sold separately, you can purchase them HERE.

Installation

  • The Blum Aventos HK-S is easy to adjust and install.
  • Instructions are included with purchase.
  • We recommend that you download and print out the much more complete PDF Instructions at the document found under Downloads.
  • Works on both face frame and frameless cabinets. For face frame cabinets, it is necessary to install a wooden mounting block behind and flush with the face frame. This block is not included and must be fabricated by the installer ("blocking out" the face frame).

Choosing a Model

  • There are three models available. Choose your model depending on the size and weight of your door.
  • Calculate the "Power Factor" of your door using the following:
    • Weight of door in pounds (Door Weight). The weight of the door must include double the weight of any cabinet knob or pull that is going to be attached to the door. So if the door weighs 10 lbs and your cabinet pull weighs 1/4 lb your Door Weight equals 10 lbs plus double the cabinet pull weight (1/2 lb) for a total of 10.5 lbs.
    • Cabinet Height in inches (Door Height)
  • Calculate the "Power Factor" by multiplying the Door Weight times the Cabinet Height. Sample Calculation:
    • Door Weight is 10 lbs
    • Cabinet Height is 15 inches
    • Door Pull or Knob Weight is 0.25 lbs
    • Calculation: [10+ (2 x 0.25)] x 15 = 157.5
  • For a Power Factor of from 19 to 39 use the lightweight model (Blum #20K2B00.NA / SKU 268045) Note this model is meant for the smallest sized doors. Because of this, only one of the arms is powered. The second arm is free-swinging. This is normal and not a defect.
  • For a Power Factor of from 40 to 85 use the medium weight (Blum #20K2C00-NA / SKU 268046)
  • For a Power Factor of from 86 to177 use the heavy weight model (Blum #20K2E00-NA / SKU 268047)
  • Optional Item: A restriction clip is available that restricts the normal 107 degree opening angle to 75 degrees. This is useful for high doors where it might be difficult to reach the door handle. Also useful if the door hits something above it when in the full 107 degree open position.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10054

  • Manufacturer
    Blum
  • Model Number
    20K2B00.N1 (Light Duty)
    20K2C00.N1 (Medium Duty)
    20K2E00.N1 (Heavy Duty)
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    #7 x 5/8" Flat Head Wood Screws

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet

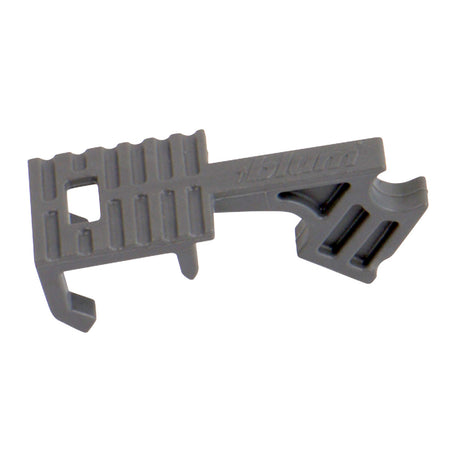

Restriction Clip for Blum Aventos HK-S
