SKU: 286142

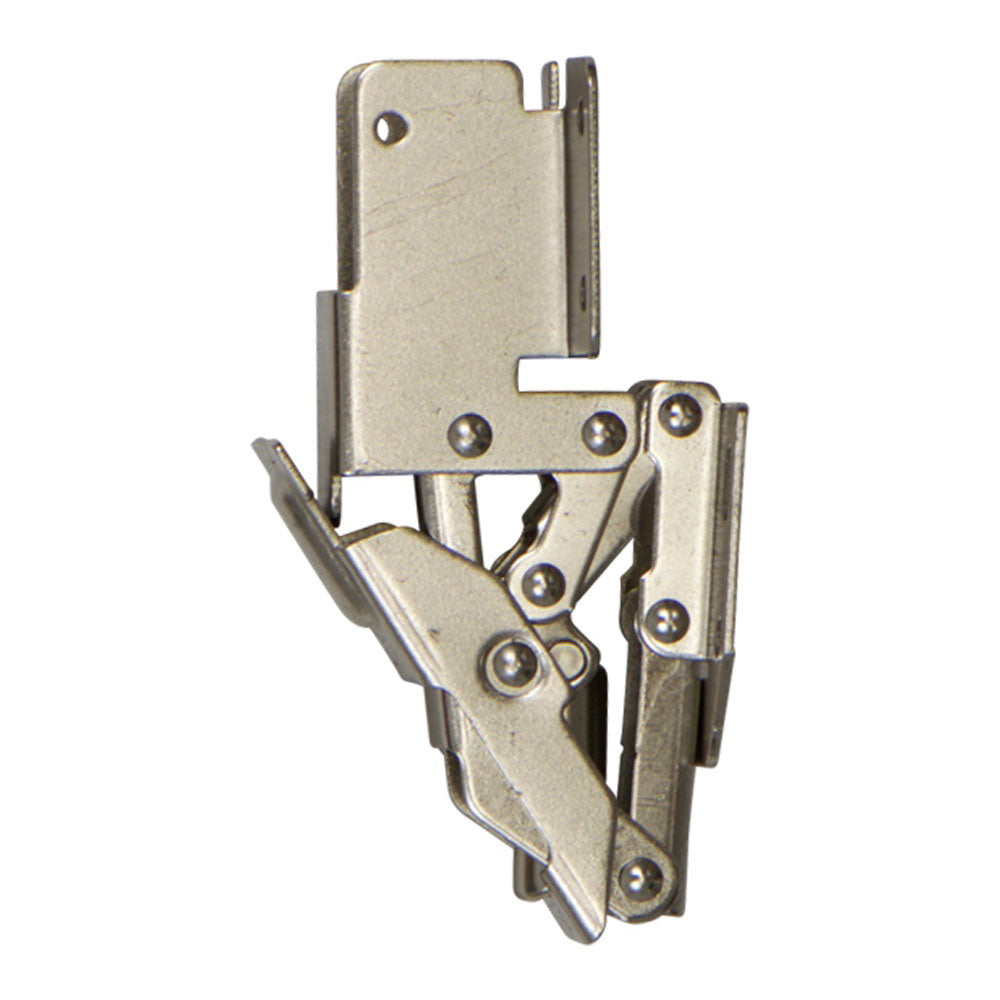

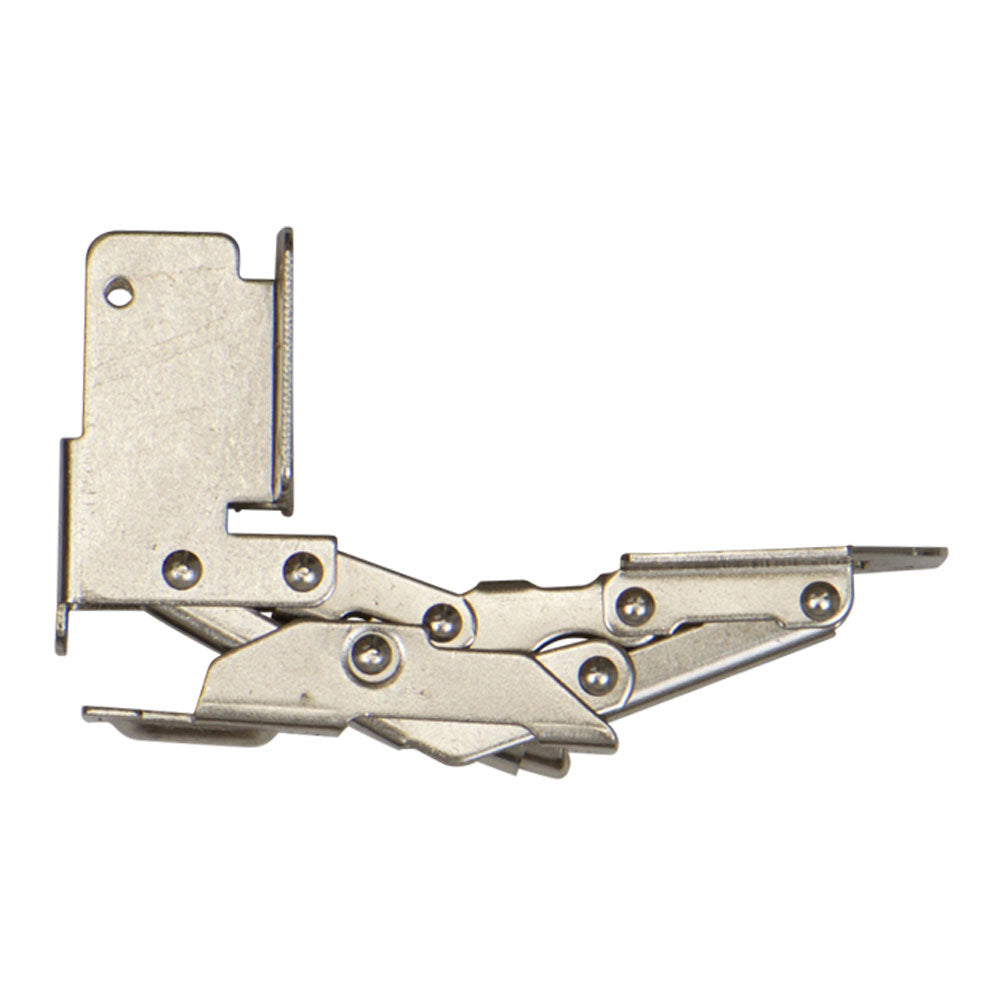

Lift-Up Hinge for Overhead Compartments No-Bore

$499 Each

Fasteners Not Included

Description

  • Heavy duty Lift-up hinge for overhead compartments.
  • Used in RV's, Kitchens, Buses, Trains, Aircraft and Furniture Built-ins.
  • Use for either 5/8" or 3/4" door thicknesses.
  • Recommended door size per pair of hinges is 20" by 11".
  • Suggested weight capacity per pair of overhead cabinet hinges is from 1-1/2 lbs to 8-1/8 lbs.
  • Hinge features positive stops in both the open and closed positions.
  • Surface mounted and completely invisible when door is closed

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 286142

  • Finish Name
    Nickel
  • Material
    Steel
  • Self-Closing
    Yes
  • Plate Connection Type
    One-Piece
  • Opening Angle
    75 Degrees
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Eight #6 Pan Head Screws

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
James R.
lift%20up%20hinges

The%20hinges%20did%20exactly%20what%20I%20wanted%20and%20expected.%20

D
DPainter
Great Hinges for RV Cabinets

The perfect hinge for our overhead cabinets in our RV. Allows us to prop open the door to access items inside with both hands. The original hinges were not hold-open which made access difficult.
