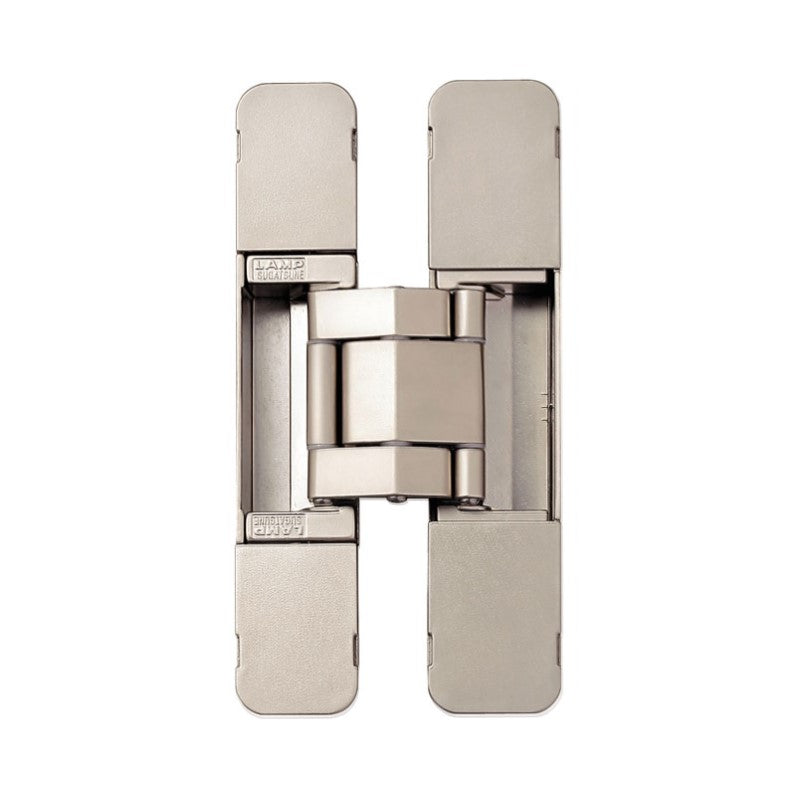

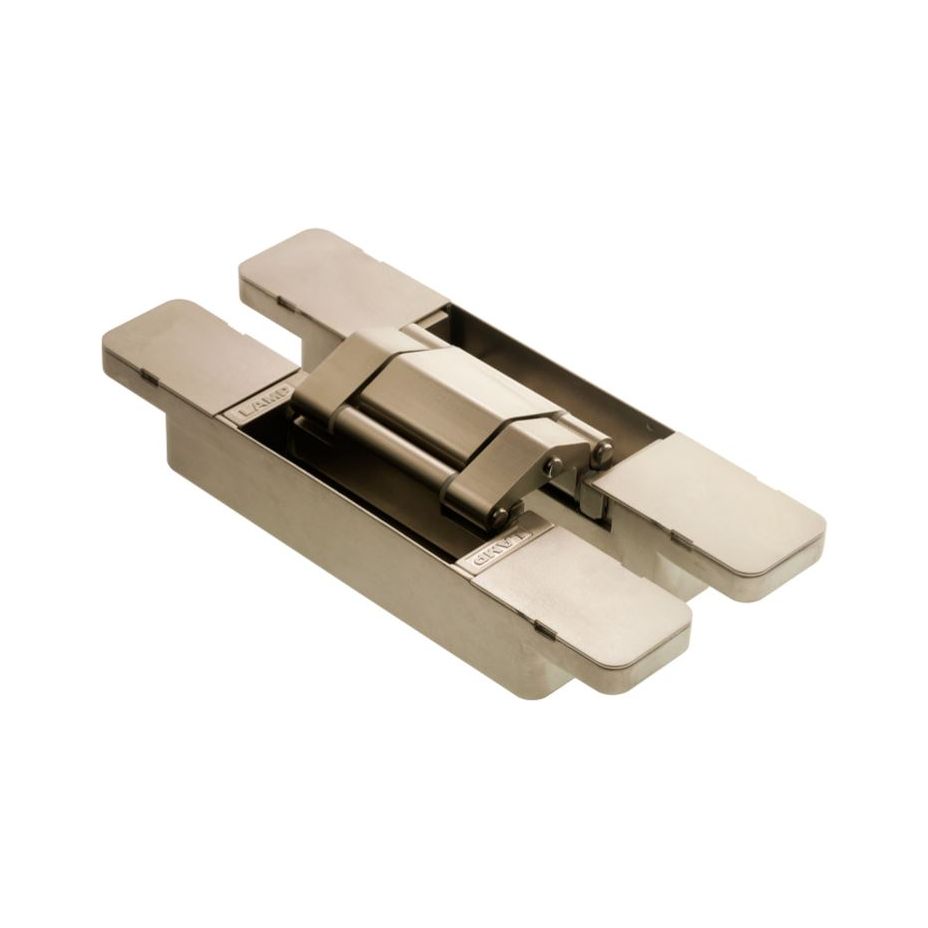

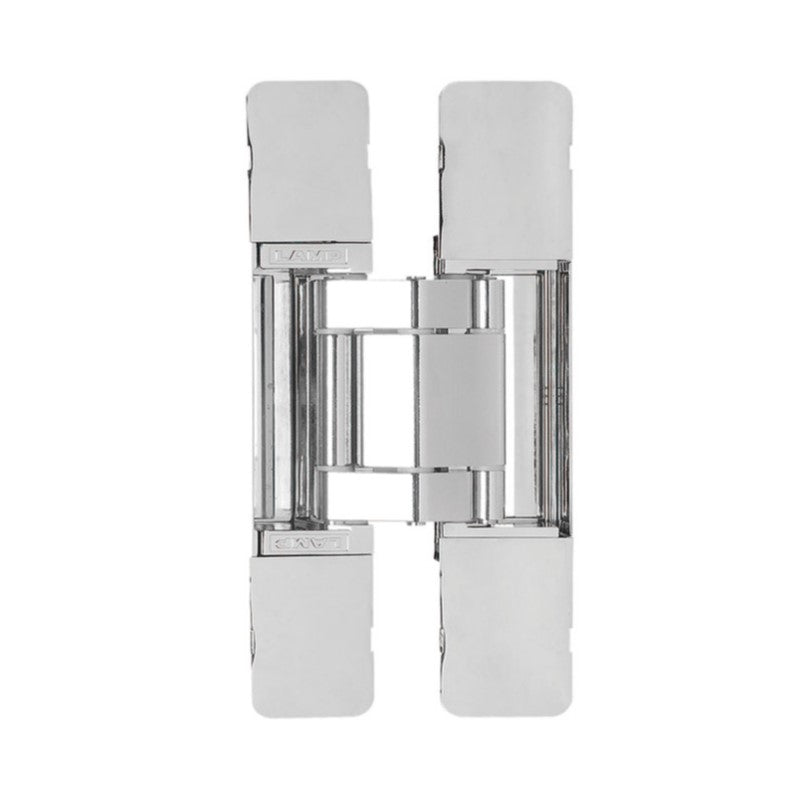

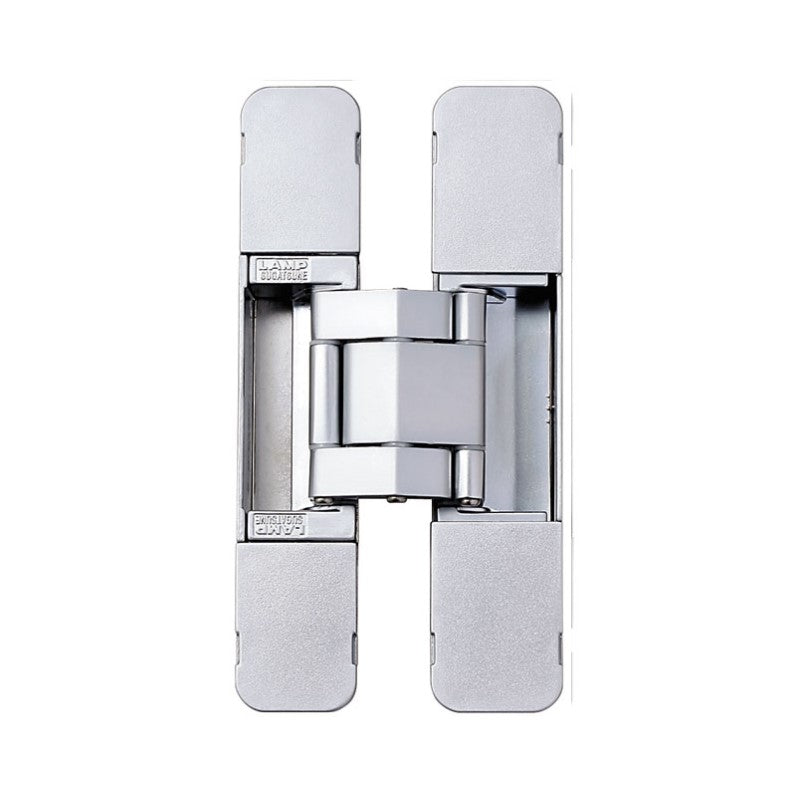

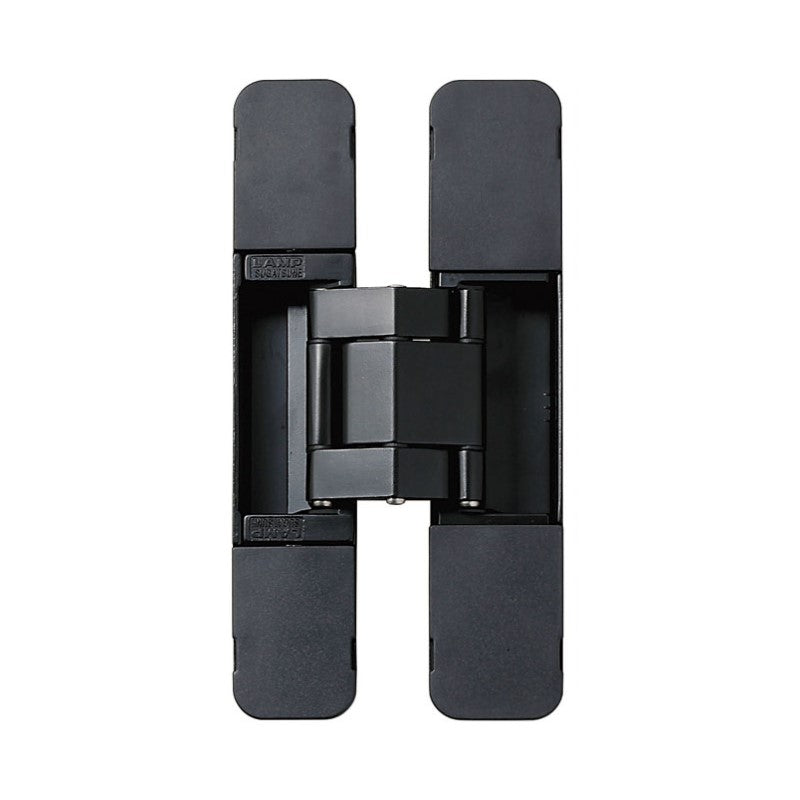

Sugatsune HES3D-E190 Heavy Duty Concealed Hinge

$13900 Each
Finish Name: Dull Chrome

Description

Features
  • Easy installation and adjustment. Allows for three way adjustment (vertical, horizontal, amd depth) after the hinges is installed.
  • Faceplate covers hide all of the screw heads, providing a clean appearance.
  • Succesfully passed 300,000 open/close test cycles.
  • Available in four high-quality finishes.

Door Requirements

  • Max door weight: 220 lb using two hinges. 275 lb using three hinges.
  • Minimum door thickness: 1-1/2"
  • Maximum door size: 94-1/2"H x 35-7/16"W

Warranty

Varies by product. Inquire for more information.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10837

  • Manufacturer
    Sugatsune
  • Material
    Zinc Alloy
  • Opening Angle
    180 Degrees
  • Minimum Door Thickness
    1 - 1/2"
  • Mortise Depth
    28mm
  • Weight Rating
    220lbs with 2 hinges, 275lbs with 3 hinges
  • Height
    190mm (7.48")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Steel flat head screws
