Salice  |  SKU: 268708, 268716, 286255

Straight Arm Hinge for Face Frame Cabinets - Bundle

$572 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Mounting Plate Height


  • Titanium finish European style hinge
  • Straight arm model for frameless overlay doors
  • Titanium plating over steel base material. This plating provides a nice aesthetic while offering superior corrosion resistance.
  • Please note that these hinges do have some nickel parts that are visible. For example, the adjustment screw, rivet ends and some visible internal parts are nickel finish.


  • Hinge cup installs in a 35mm (1-3/8") diameter cup drilled in the back of the door
  • Cup depth needs to be a minimum of 11 mm deep (7/16").
  • This hinge and the proper mounting plate will accommodate any overlay from 3/8" to just under 7/8".
  • European hinges are a two part hinge, made up of the hinge and a mounting plate. Use the document found under Downloads for information on how to choose the correct mounting plate.
  • Each hinge comes with two plastic dowels and two dowel screws
    • Dowels and dowel screws are recommended for doors that are made from pressed or manufactured wood
    • Dowel screws are regular wood screws that are a slightly shortened and blunt version of a wood screw.
    • For solid wood doors, wood screws (no dowels) are recommended.
    • For solid wood doors, discard the plastic dowels and either use the dowel screws or purchase regular bronze #6 flat head wood screws (2 each per hinge, our SKU 286255)

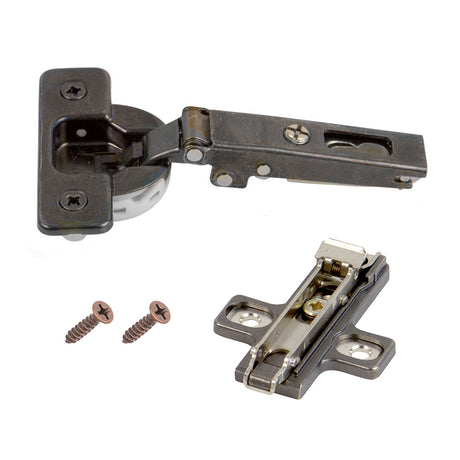

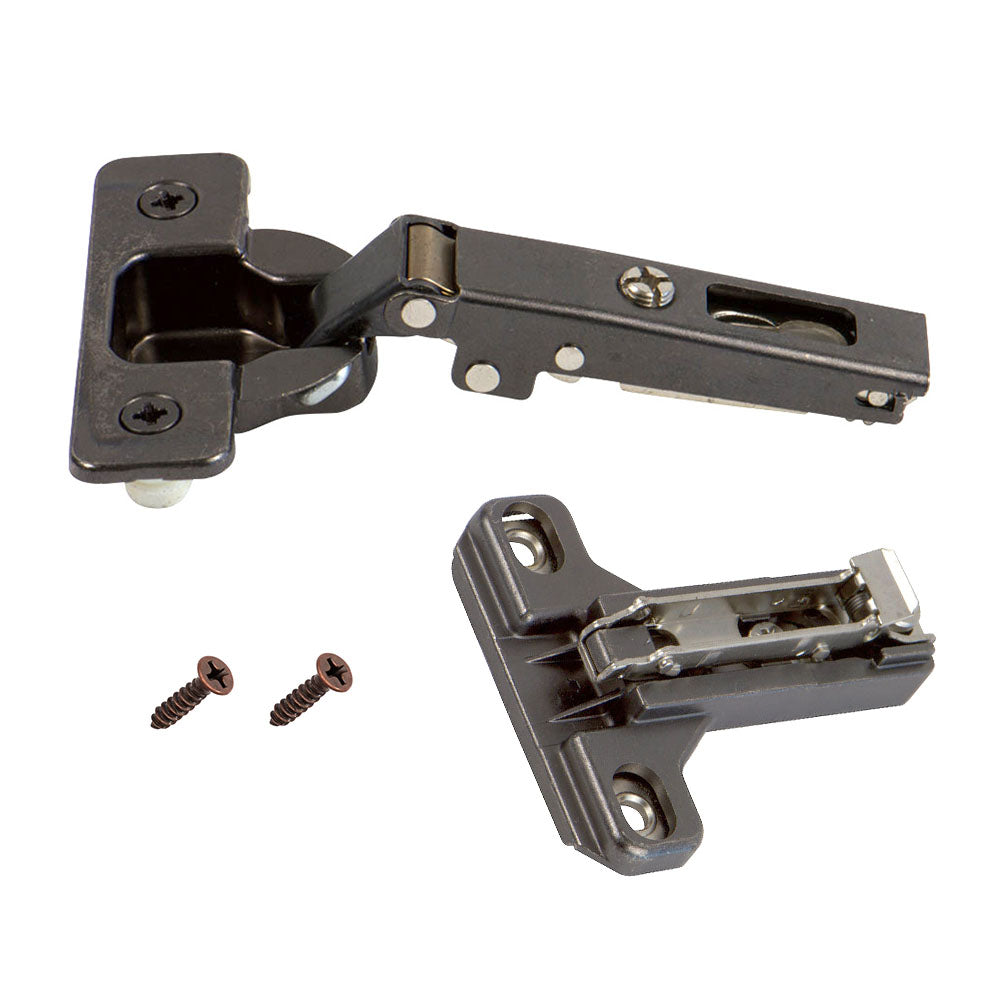

What's Included

  • 1 x Titanium Finish Straight Arm European Hinge
  • 1 x Face-Frame Mounting Plate (two options available).
  • 2 x Plastic Dowels and Dowel Screws (preattached to hinge)
  • 2 x #6 Screws for Mounting Plate

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10066

  • Manufacturer
  • Model Number
    Hinge: C2R6A66
    1mm Plate: BAU3R16
    4mm Plate: BAU3R46
  • Finish Name
  • Material
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
  • Self-Closing
  • Plate Connection Type
  • Opening Angle
    110 Degrees
  • Cup Diameter
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
  • Mounting Hardware Type
    Two plastic dowels and dowel screws for the hinge cup and two #6 x 5/8" flat head wood screws for the mounting plate.
