Stainless Steel Weld-On Hinge

912000

1 total reviews

In stock

Finish: Stainless Steel
Size (H x W)

Regular price $8.29 Each Each = 1 item. Pair = 2 items.
Sale price $8.29 Each Each = 1 item. Pair = 2 items. Regular price

  • Fast Shipping
  • Secure Checkout
  • Trusted Since 1892

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Resources

  • This stainless steel weld-on hinge has a tight "spun" pin.
  • Type 2B mill finish which is an industrial finish.
  • This hinge does not have weight ratings but they will be comparable to other hinges of the same height, open width, and thickness.

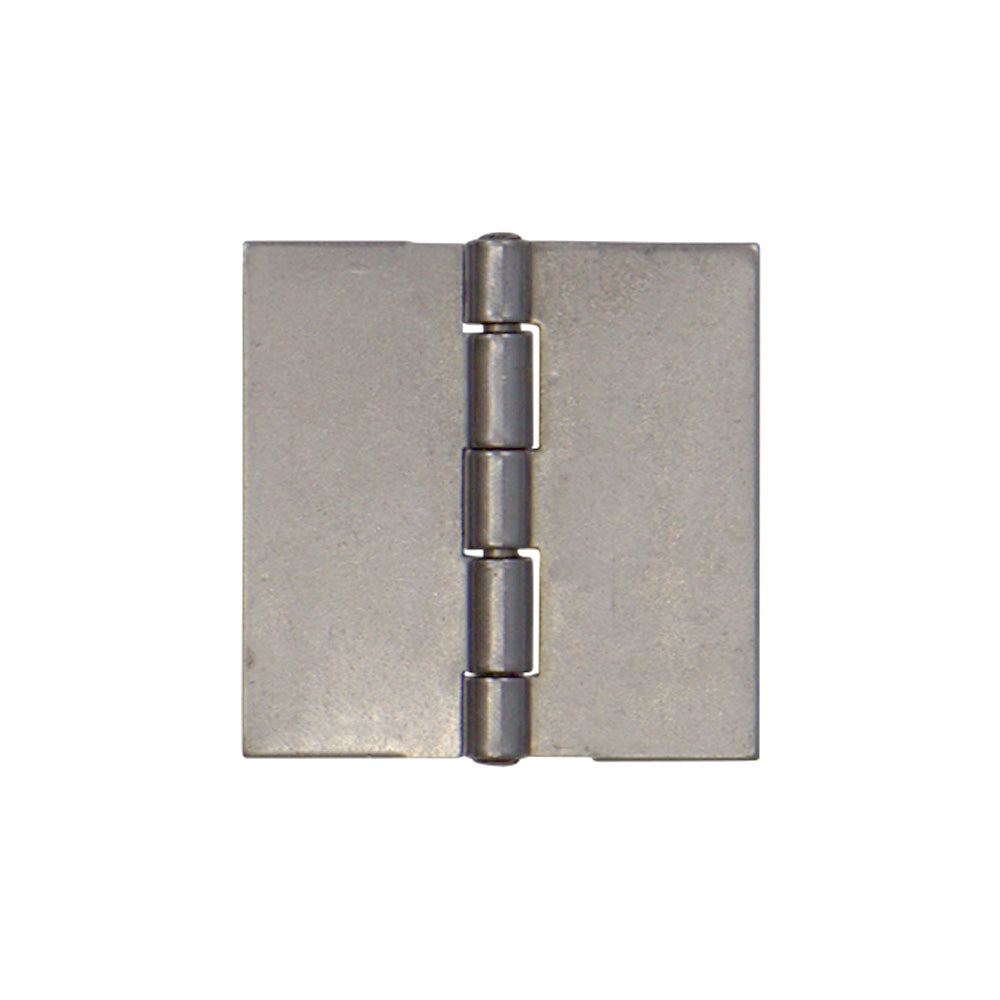

2" x 2" Model:

  • 1/8" pin diameter.
  • 1/16" material thickness.

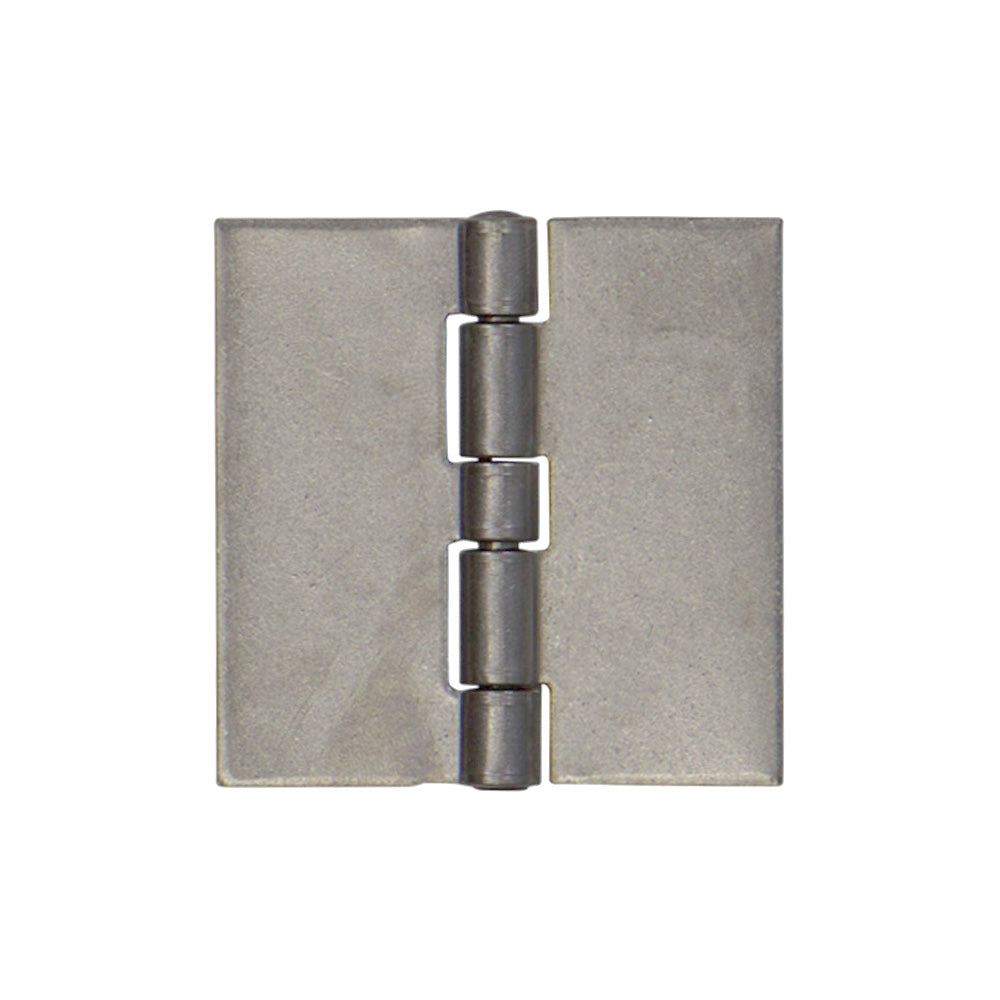

2-1/2" x 2-1/2" Model:

  • 3/16" pin diameter.
  • 5/64" material thickness.

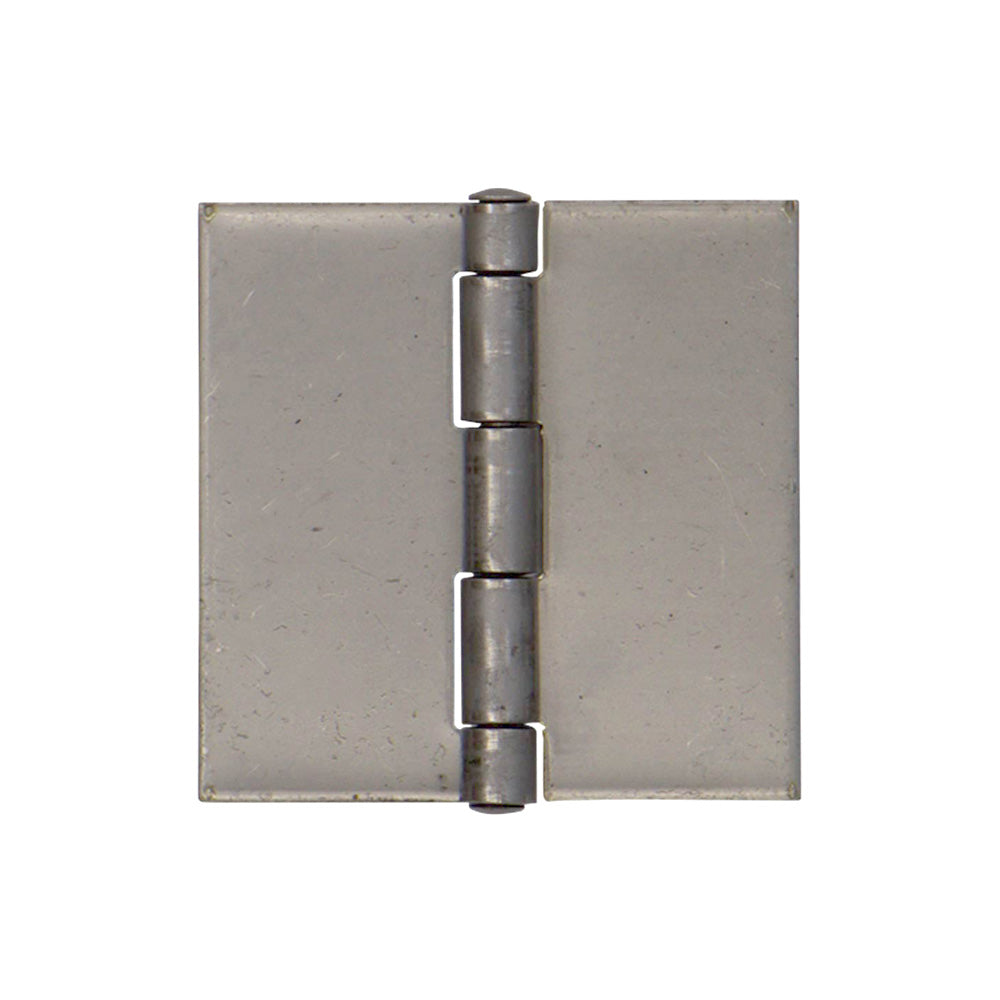

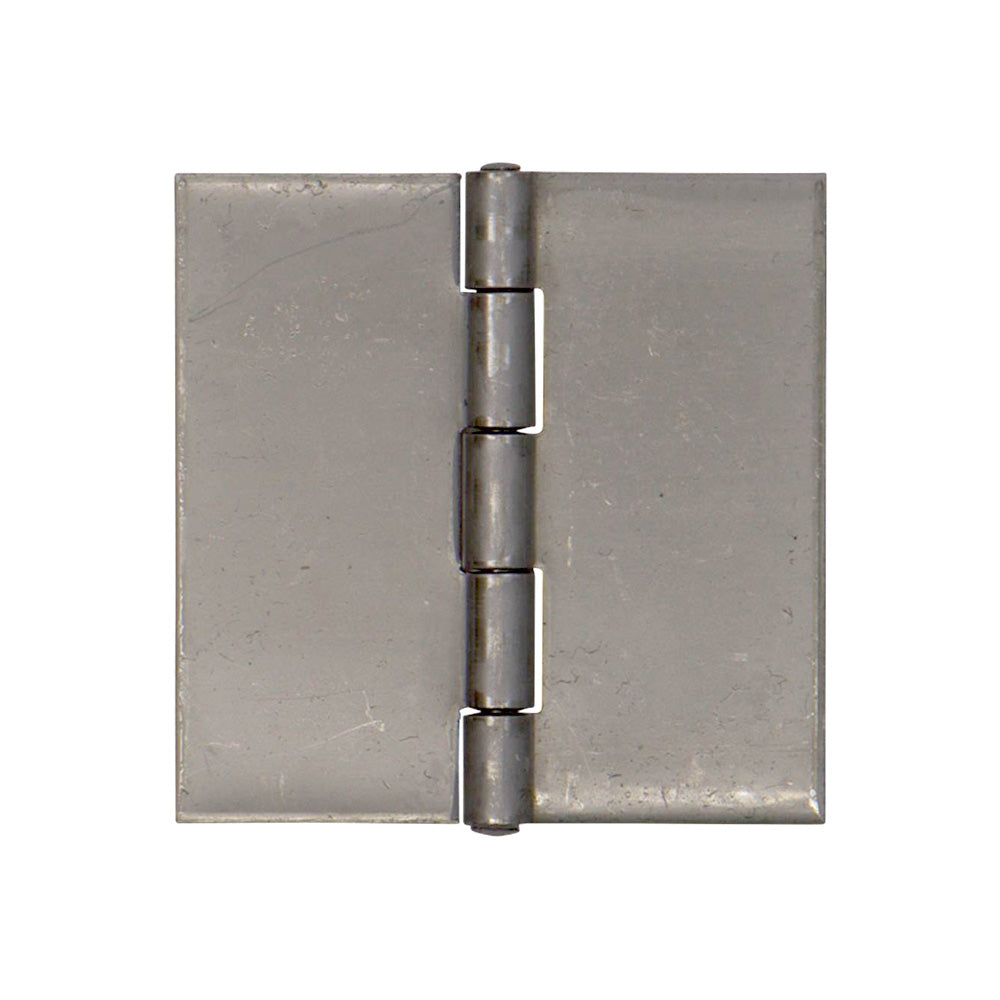

3" x 3" and 3-1/2" x 3-1/2" Model:

  • 3/16" pin diameter.
  • 3/32" material thickness.

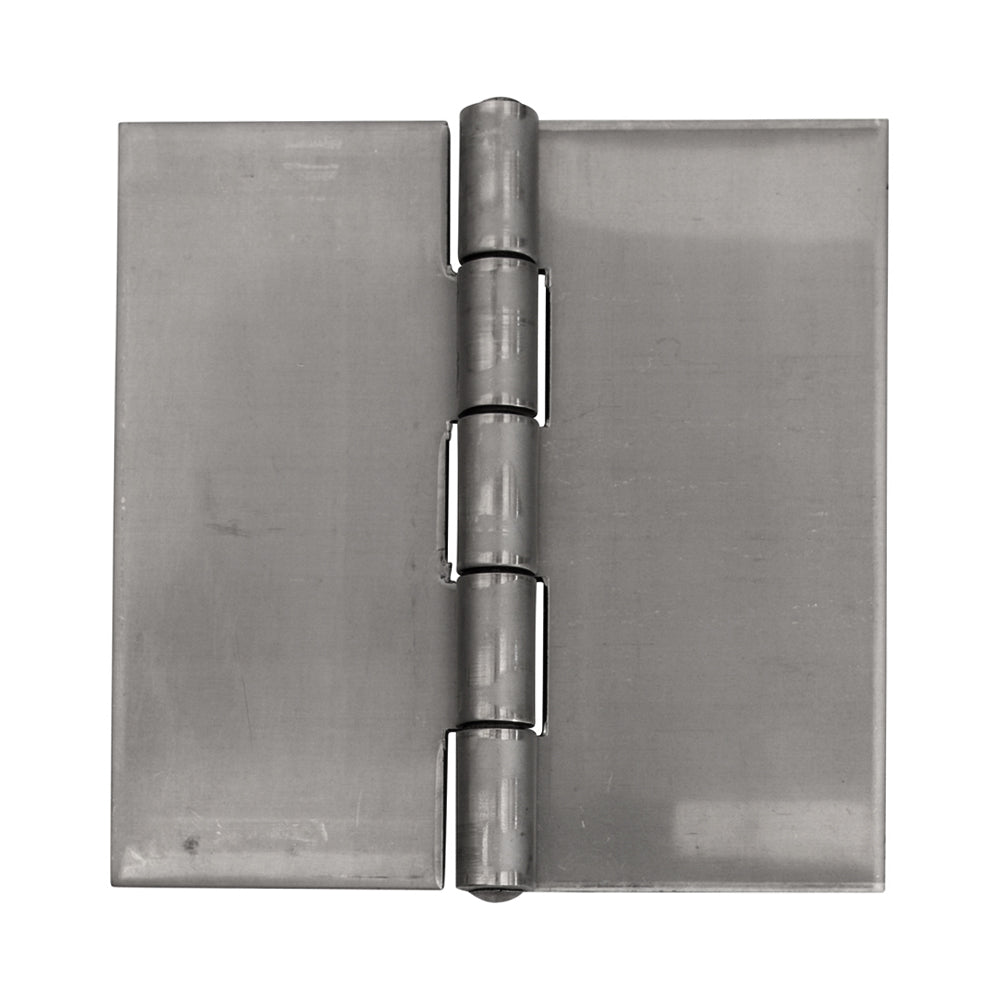

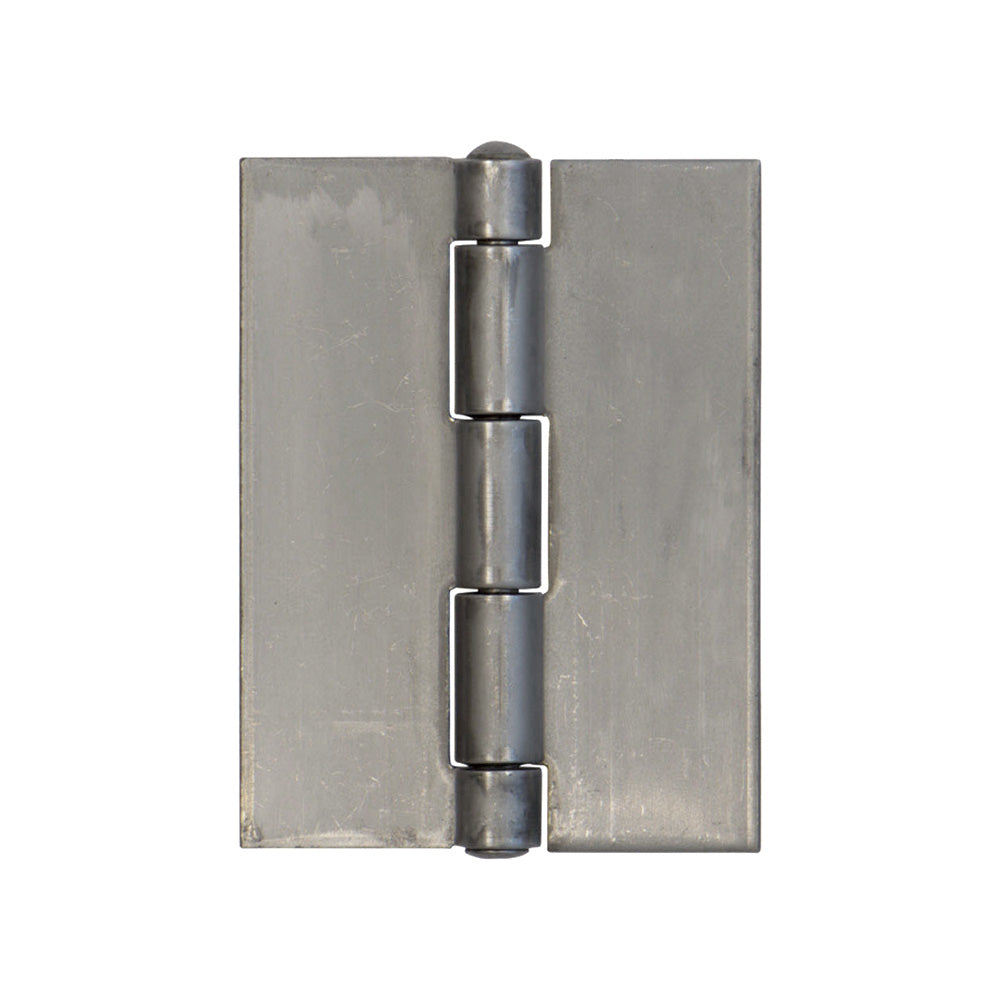

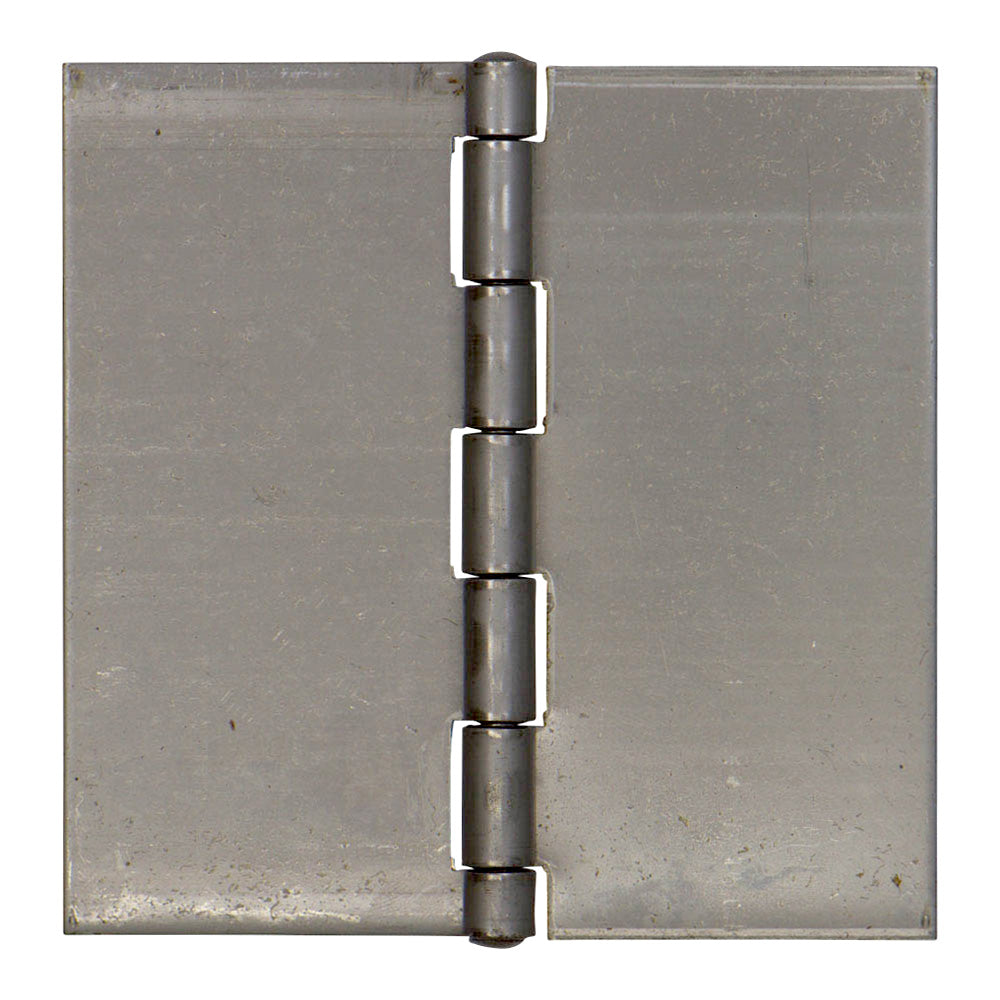

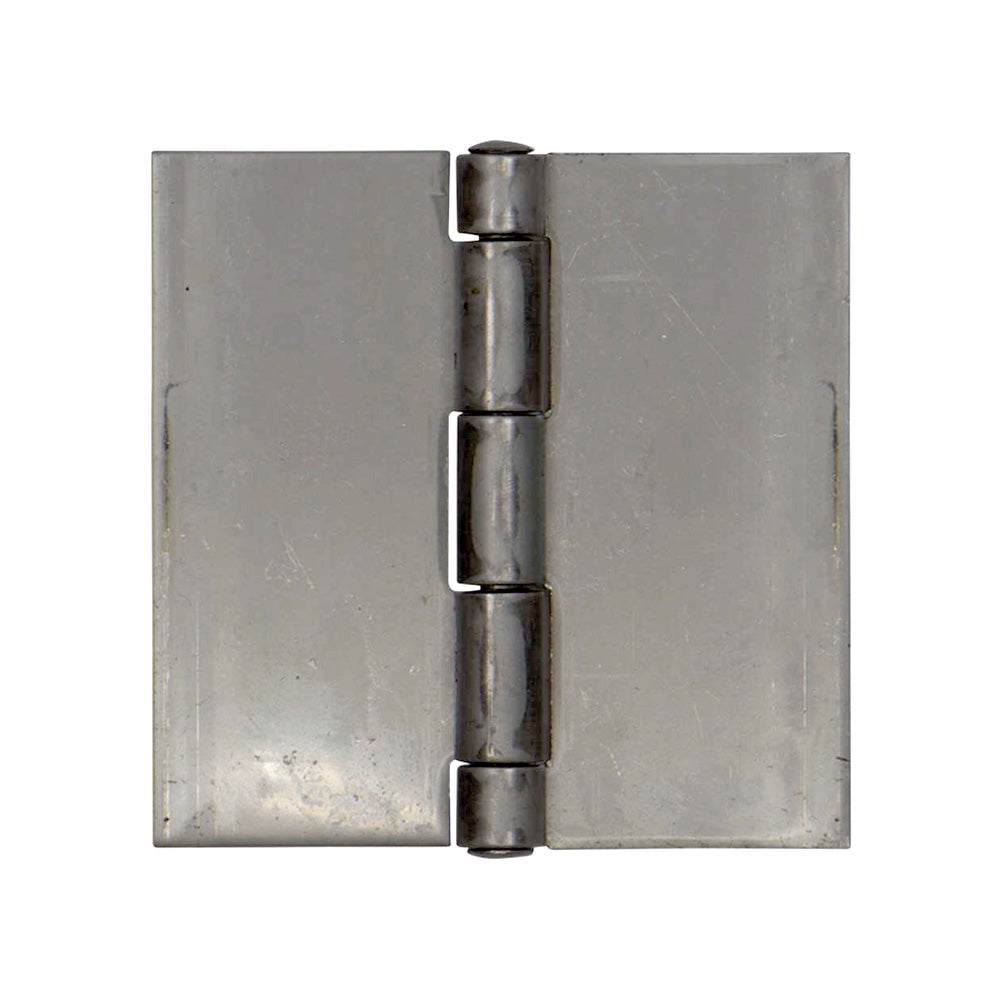

4" x 3", 4" x 4", 5" x 5", and 6" x 6" Model:

  • 1/4" pin diameter.
  • 1/8" material thickness.

Specifications

Finish NameNatural Stainless Steel
MaterialStainless Steel (304)
Heavy Duty Hinge TypeWeld-On
BearingsPlain Bearing

 CA Prop 65 Warning

Stainless Steel Weld-On Hinge

$8.29

How long does it take to get my hardware once it's been ordered?

The delivery time depends on how far you live from our San Diego warehouse. Generally, your order will reach you in 1 to 5 business days. Shipments do not move on weekends and holidays.

Do you ship merchandise outside the United States?

At this time, we only ship to addresses in the continental United States, Alaska, and Hawaii. For APO/FPO/DPO and Canadian orders, please email info@hardwaresource.com with a list of the SKU numbers and quantities you would like to purchase, along with your complete ship to address. Once we receive this information we will email you a shipping quote. Please note: Canadian shipments have a $50.00 minimum order.

Some of your hinges are sold by the each and some sell by the pair. What is the difference?

When the unit of measure says “pair” that means two hinges. Usually you need one pair of hinges per door. When the unit of measure says “each” that means one hinge. You would usually order 2 “each” hinges per door.

I want to replace my hinges. How do I make sure the screw holes on the new hinge match the screw holes on the old hinge so I do not have to redrill the holes?

Unfortunately, hinge manufacturers have never standardized the location of their screw hole patterns. Every manufacturer puts their screw holes in a slightly different place. This means that when you replace hinges you will almost certainly have to do some filling and redrilling. The exception to this is Architectural door hinges which are built to a standardized template for each size hinge.

What is your return policy?

You can see our complete return policy here: HardwareSource Returns

You May Also Like

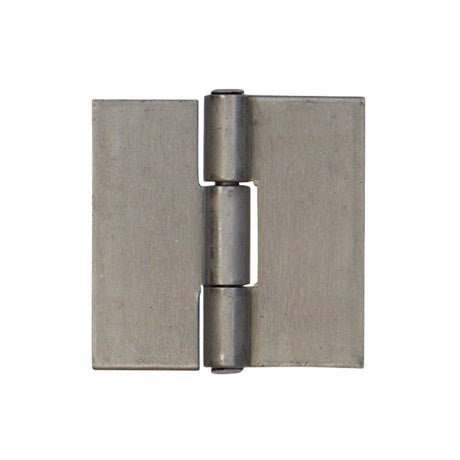

  • Aluminum Weld-On Hinge

    Aluminum Weld-On Hinge

    7 total reviews

    Regular price From $6.99 Each
    Sale price From $6.99 Each Regular price

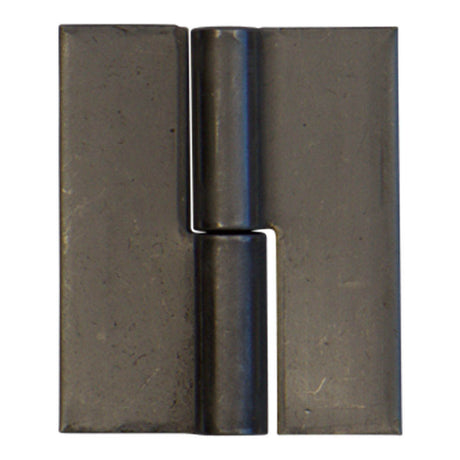

  • Stainless Steel Lift Off Weld-On Hinge
