Sugatsune  |  SKU: 658882, 658888

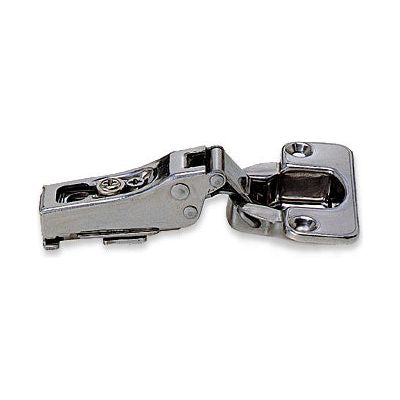

Stainless Steel European Hinge for Frameless Cabinets

$1413 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 5 screws.

Hinge Type


  • These European style hinges are made of stainless steel (with some steel components).
  • They are the best option we have for marine, outdoor, or other corrosive environments. Works on doors 15mm to 20mm thick (19/32" to 3/4").
  • For overlay doors only.
  • This hinge is sold by the bundle. One bundle includes the following:
    • 1 Hinge
    • 1 Frameless Mounting Plate
    • 2 Oval Head Wood Screws for the hinge side
    • 3 Pan Head Wood Screws for the mounting plate

Selecting Your Hinge

  • For doors with a 17mm to 19mm overlay (21/32" to 3/4") use the Straight Arm model.
  • For doors with a 12mm to 14mm overlay (15/32" to 9/16") use the Half Cranked model. Note: If you order a cranked hinge, it will look slightly different than the one pictured.
  • For doors with a 7mm to 9mm overlay (9/32" to 11/32") use the Full Cranked model.

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10030

  • Manufacturer
  • Model Number
    Straight Arm Hinge: 304B-C46/19
    Half Cranked Hinge: 304B-C46/14
    Full Cranked Hinge: 304B-C46/9
    Mounting Plate: 304B-P4A/32-3W
  • Finish Name
    Polished Stainless Steel
  • Material
    Stainless Steel (304)
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
  • Self-Closing
  • Plate Connection Type
  • Opening Angle
    100 Degrees
  • Cup Diameter
  • Screw Hole Spacing
    43mm (1-11/16")
  • Mounting Hardware Included
  • Mounting Hardware Type
    Matching Stainless Steel Wood Screws

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review

Related Products

A table comparing the facets of 5 products
35mm Forstner Bit for European Hinges
View details
Stainless Steel Bar Knob
View details
Stainless Steel Bar Pull
View details

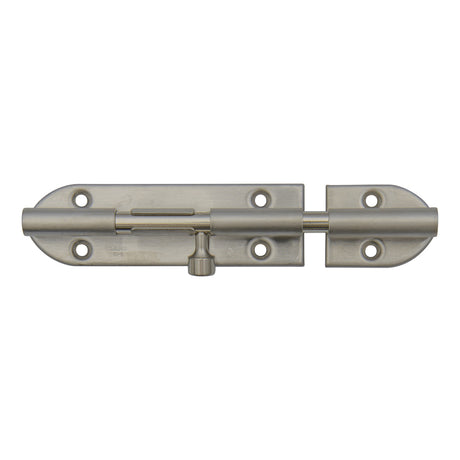

Stainless Steel Barrel Bolt
