SKU: 796560

Small Spring Loaded Pivot Hinge

$379 Per Pair

Fasteners Not Included


  • Small spring loaded pivot hinge for inset doors.

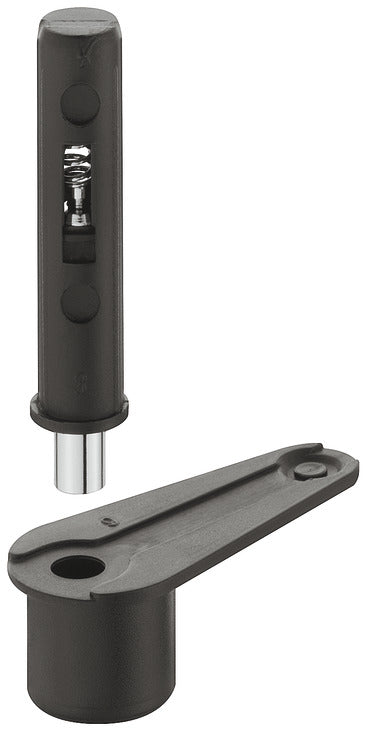

  • This small spring loaded hinge is made of two parts; a spring loaded pin housing and a plastic bushing (pin receiver)

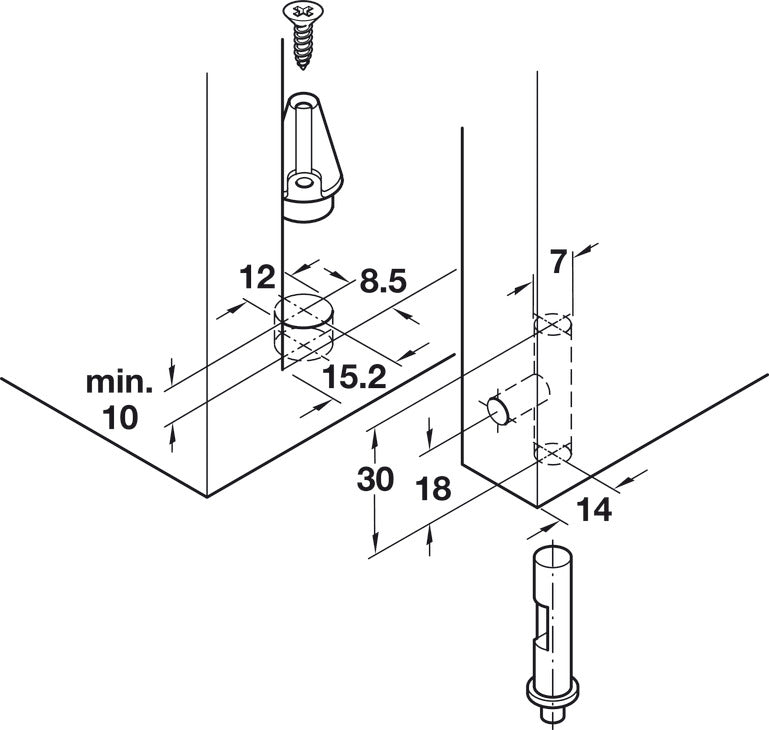

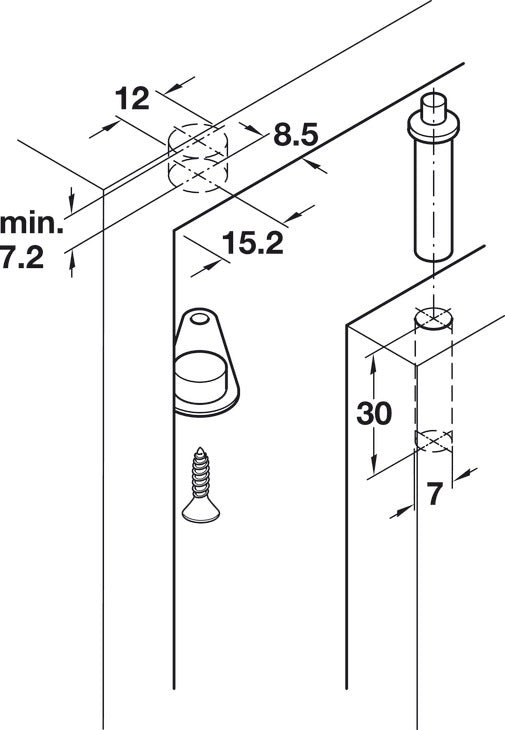

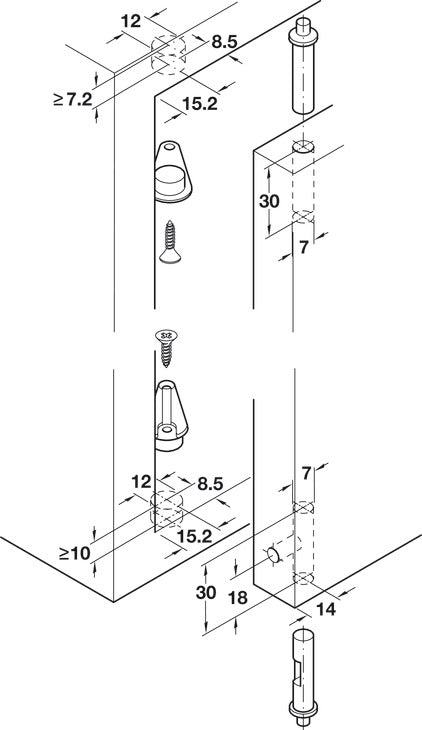

  • Both hinge parts install by drilling a hole and press fitting them in place.
  • The spring loaded pin housing measures 1-3/8" long by 1/4" diameter. The pin diameter is 5/32" and projects 1/4"
  • The plastic bushing is 7/16" in outside diameter.

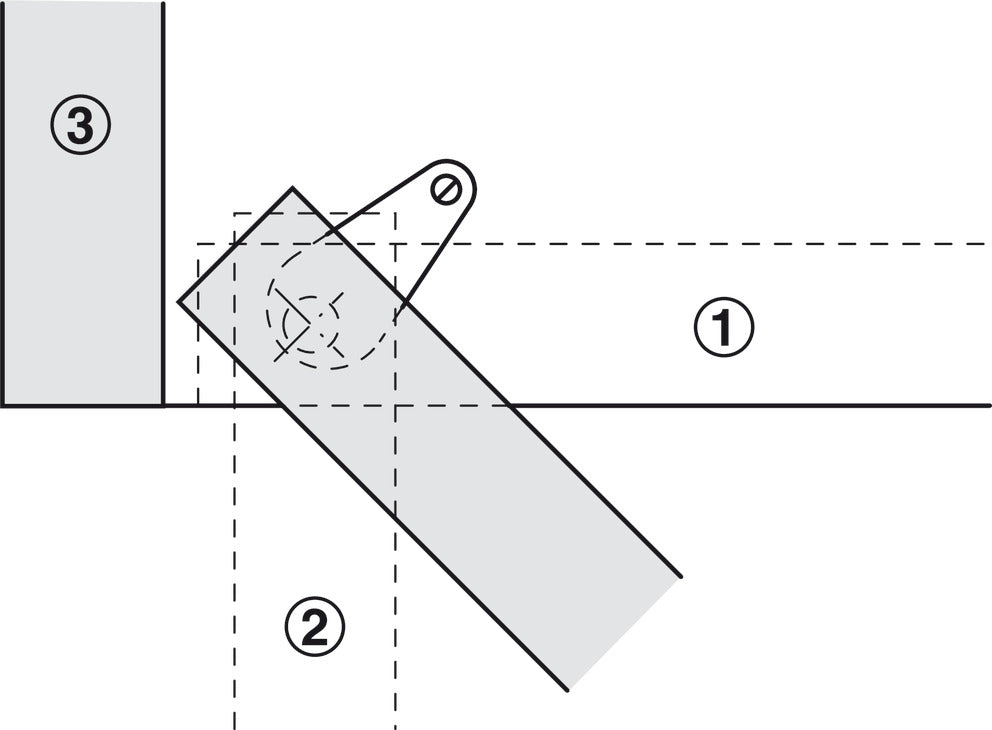

  • Maximum door opening is approximately 140 degrees.
  • This hinge will work on door thicknesses ranging from 1/2" to 13/16"
  • This hinge is made of plastic with a steel pin and spring.
  • Hinge is sold by the pair. Order 1 pair per door.

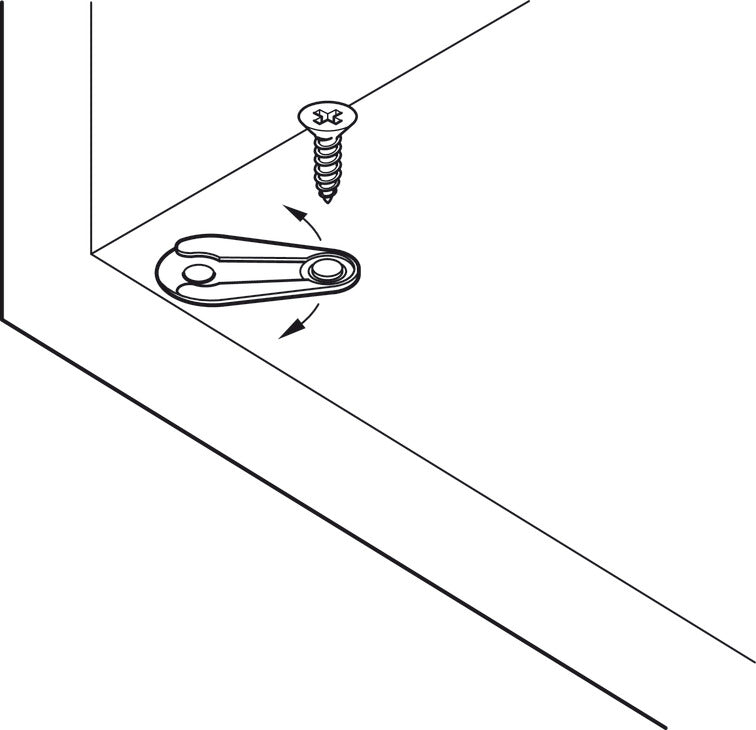

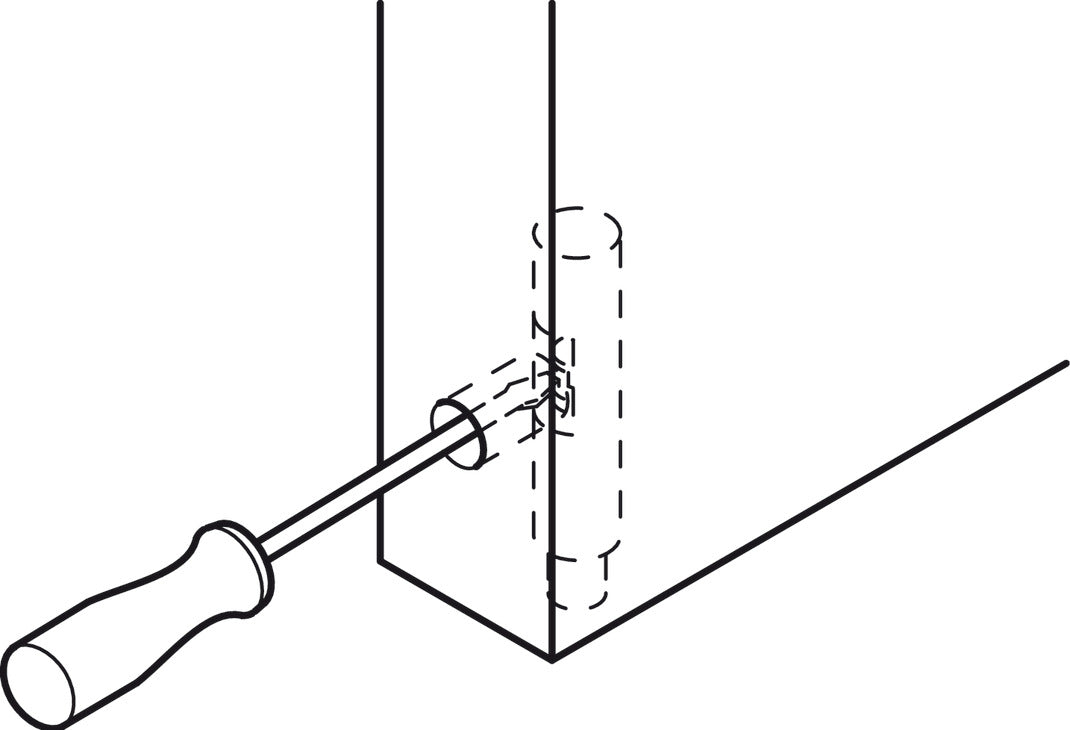

  • Tab adjustment screw is not included.
  • PLEASE NOTE: This hinge is not a "self-closing" hinge. The spring is in the pin receiver and is meant only to keep the pin in place after installation.

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 796560

  • Finish Name
  • Material
  • Mounting Hardware Included

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review

Related Products

A table comparing the facets of 5 products
Small Flat Head Stainless Steel Screws
View details

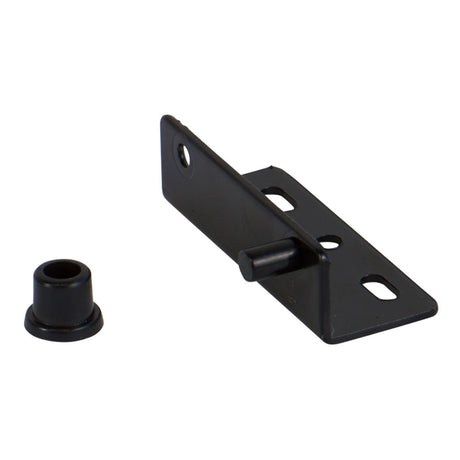

13/16" Wood Door Pivot Hinge
View details
25/32" Wood Door Pivot Hinge
View details

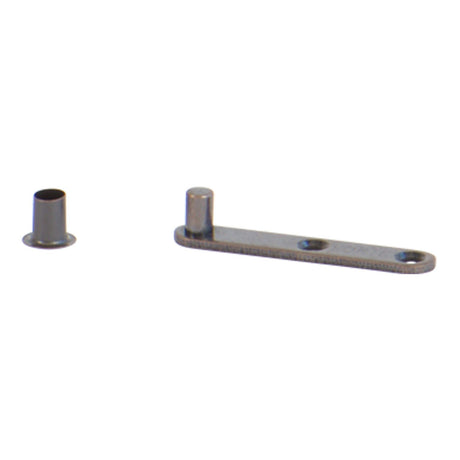

Center Pivot Hinge, Bronze
View details

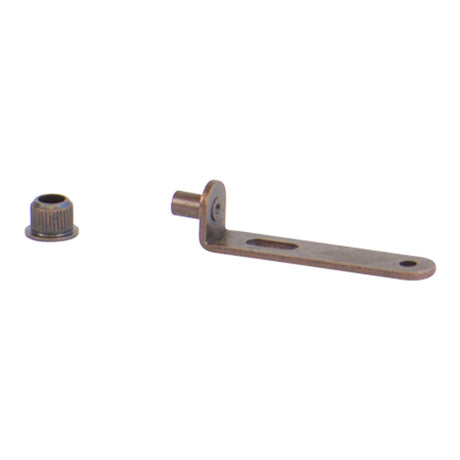

Rear Pivot Hinge, Bronze
