Salice  |  SKU: 268402, 796706, 652360

Salice Silentia Hinge for Face-Frame Overlay Cabinets - Bundle

$825 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Mounting Plate Height

Description

  • Silentia soft-close hinges made by Salice.
  • Made for overlay doors on face-frame cabinets.
  • There are a number of different mounting plate options for this hinge. Use the document found under Downloads (titled "How to Select Your Mounting Plate") for instructions on how to choose the correct plate.
  • This hinge is best suited for full overlay doors. It will accommodate overlay dimensions of 14 to 20mm (approximately 9/16" to 25/32").

Features

  • Built-in soft close function that is completely hidden from view and is fully integrated into the hinge components.
  • When the door is pushed closed, the hinge acts to decelerate the closing action.
  • Keeps doors from slamming shut.
  • 12mm minimum cup depth. This makes this hinge excellent for a retrofit of an existing European hinge because it does not require an extra-deep cup depth.
  • Hinges and mounting plates are adjustable after installation.
  • Mounting plates connect to the hinge by snapping together.

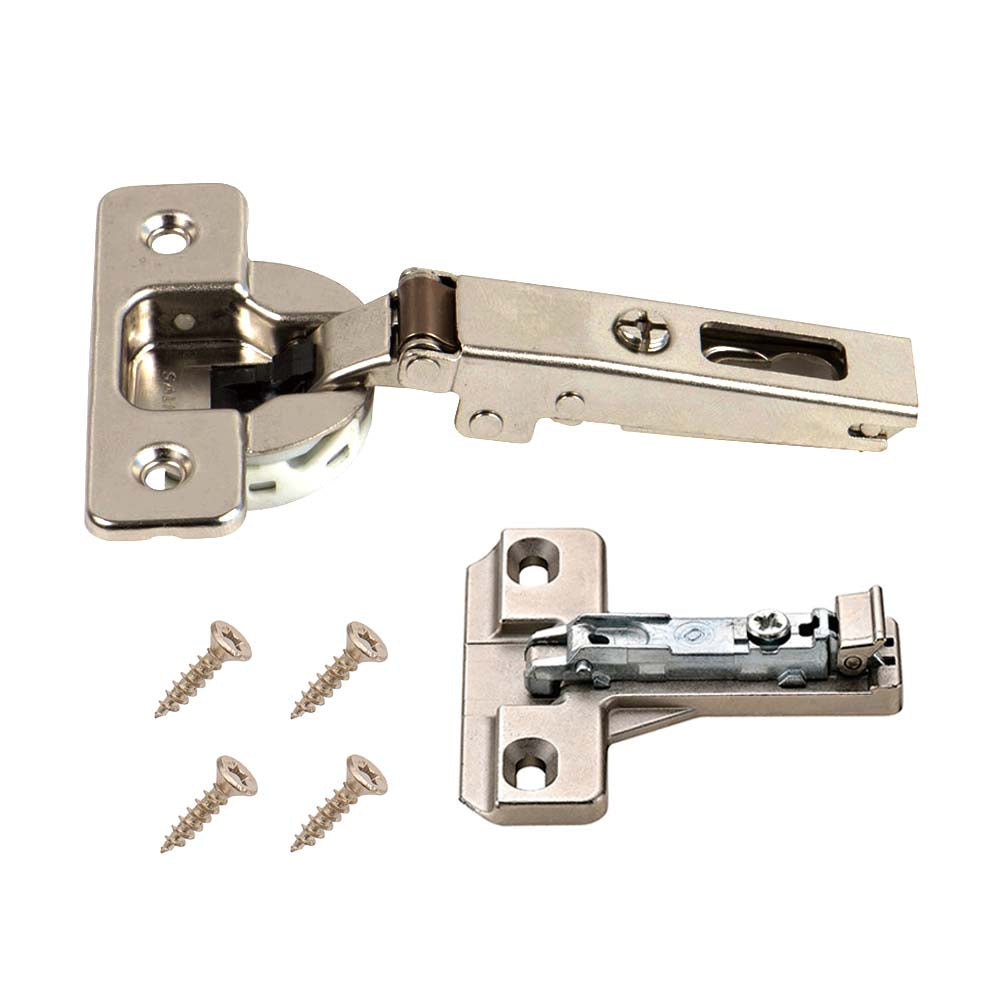

What's Included

  • 1 x Salice Silentia Soft-Close Straight Arm Hinge
  • 1 x Salice Face-Frame Mounting Plate (two options)
  • 4 x #6 x 5/8" Flat Head Wood Screws

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10069

  • Manufacturer
    Salice
  • Model Number
    Hinge: C1P6AD9
    1mm Plate: BAU3E19
    4mm Plate: BAU3E49
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Full Overlay
  • Soft Close
    Yes
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    105 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Four #6 x 5/8" Flat Head Wood Screws
