SKU: 286242

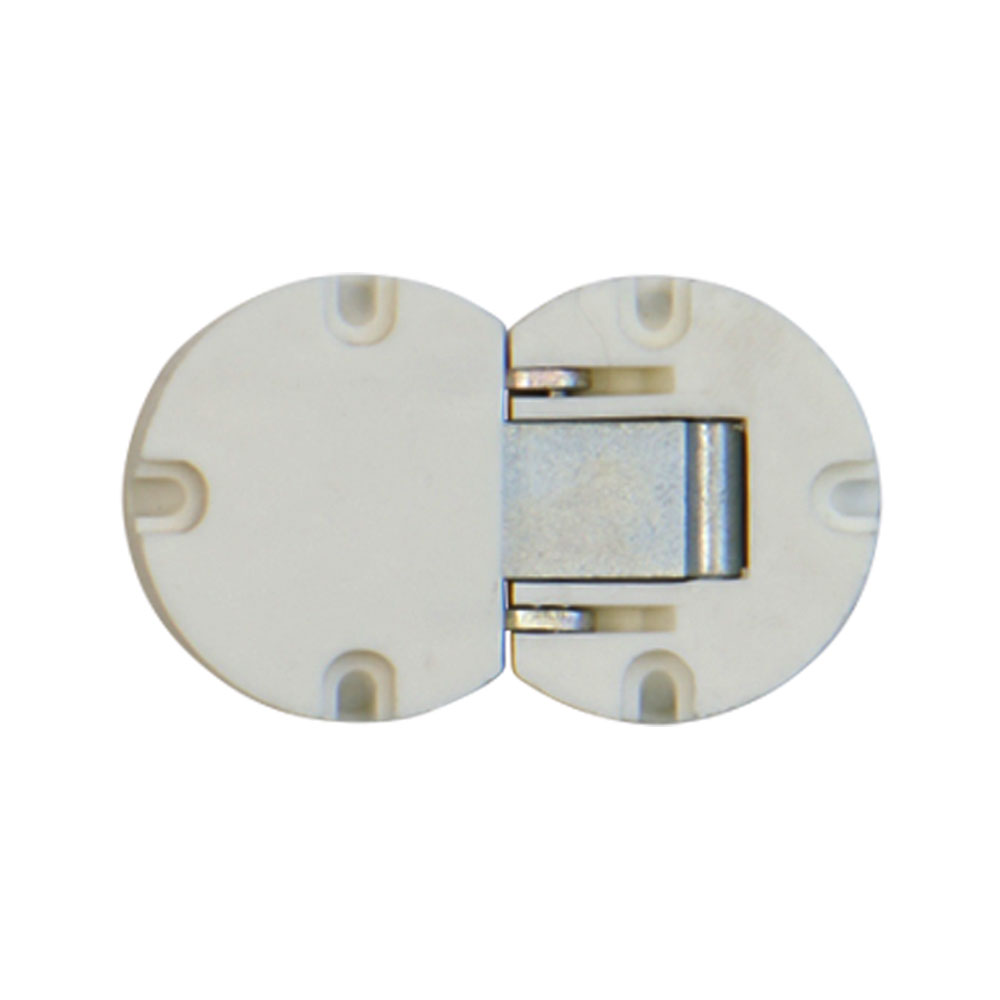

White Nylon Drop Flap Hinge

$699 Each

Description

  • Allows panel or flap to fold down and hold at 90 degrees flush with the shelf it is hinged to.
  • Fits flush into door & shelf surfaces, concealed from the exterior
  • Made for 3/4" thick doors
  • The partial hole is located such that the far edge of the hole is 25 mm from the edge of the shelf and 25 mm from the edge of the flap.
  • Boring setup is identical on both the flap and the shelf.
  • Bore diameter is 30mm.
  • Bore depth is 11 mm (7/16").

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 286242

  • Finish Name
    White
  • Material
    Nylon
  • Width
    30mm
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    #4 x 5/8" Oval head screws
