Magnetic Touch Latches for Glass Doors

Fasteners Not Included

Description

  • Magnetic touch latch and steel plate work together to provide a latch for glass doors.
  • To operate the touch latch simply push it in, it will then pop the glass door out so it can be easily opened.

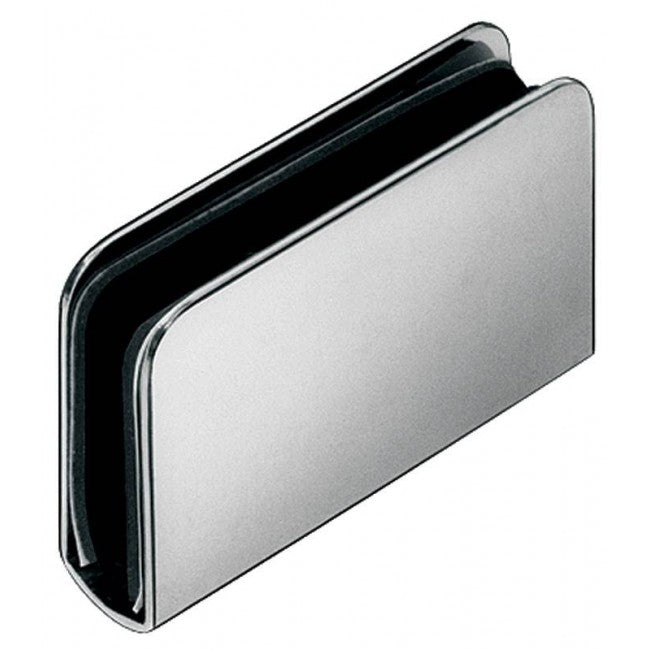

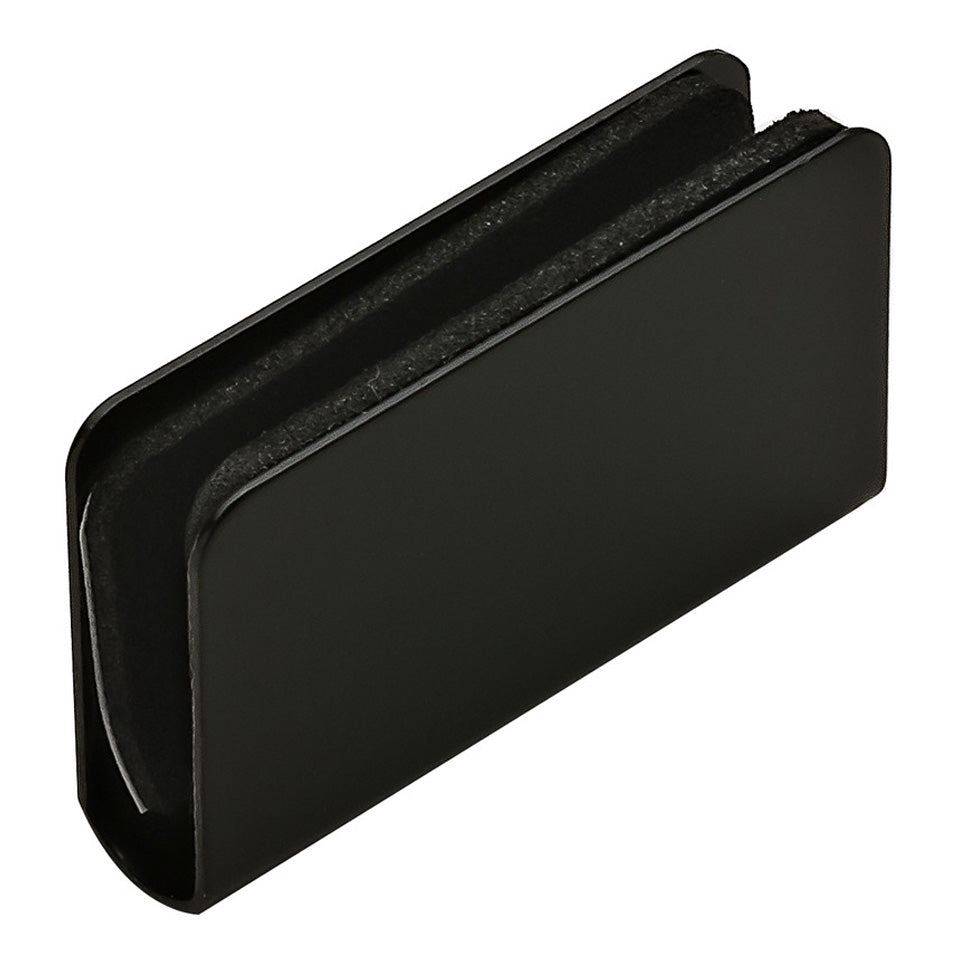

  • The wrap around plate is made out of steel so as to work with the magnet in the touch latch.
  • The wrap around plates will work for 3/16" thick glass and include self-adhesive plastic cushioning material for the glass. They are held in by pressure.
  • The wrap around plates will work for 1/4" glass if you shim the glass with a small piece of plastic tape. Discard the self-adhesive plastic cushioning material.

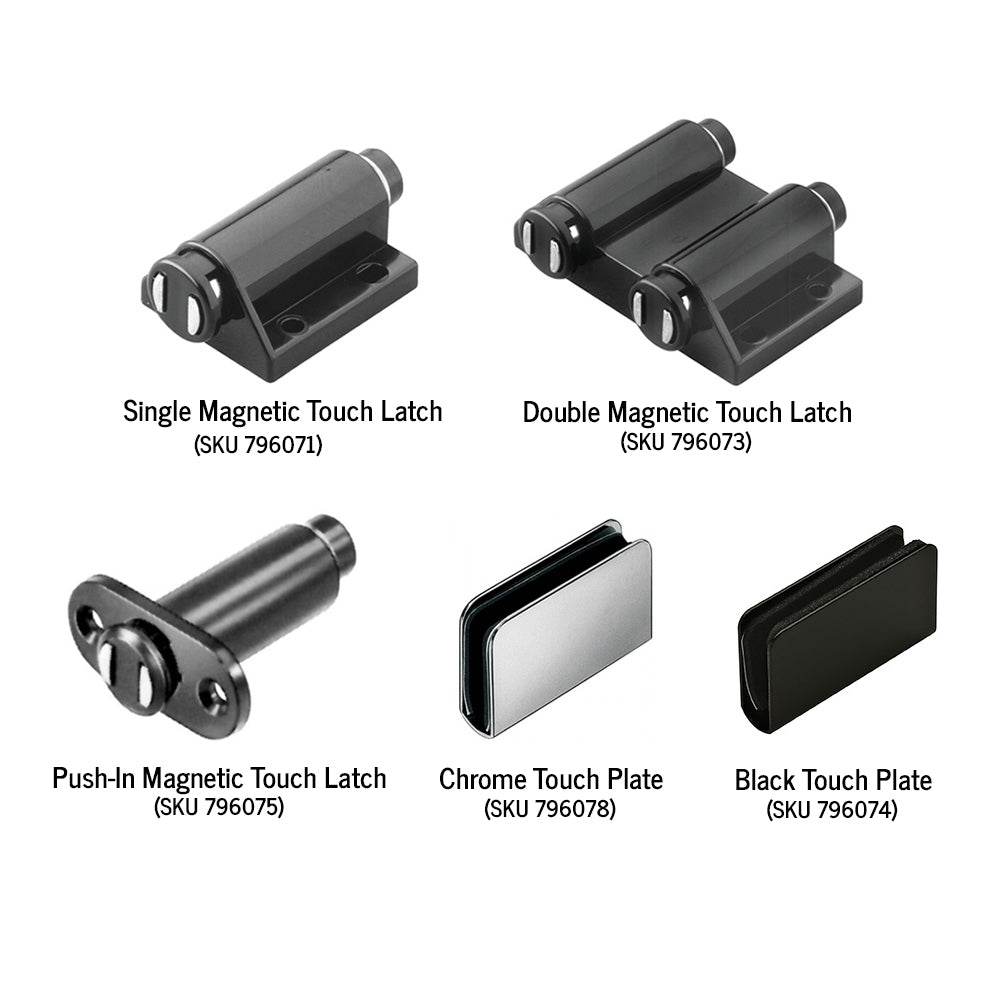

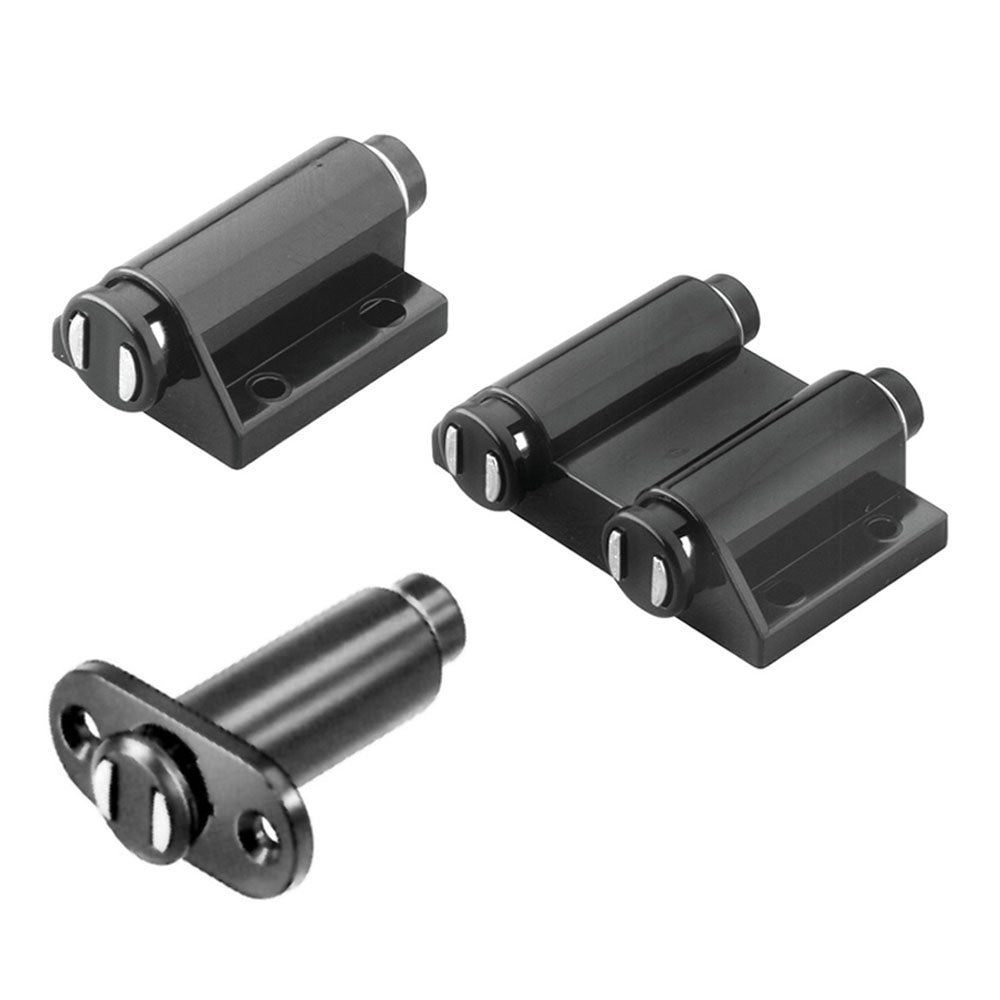

Models

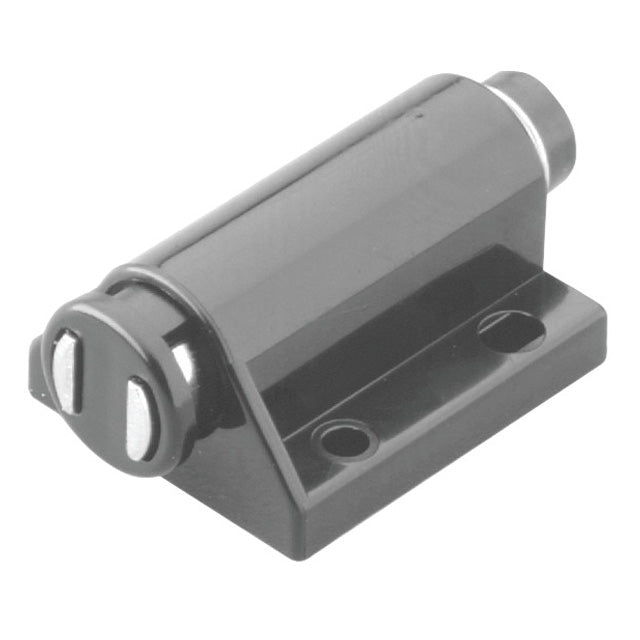

  • Use the single touch latch where there is only one door.

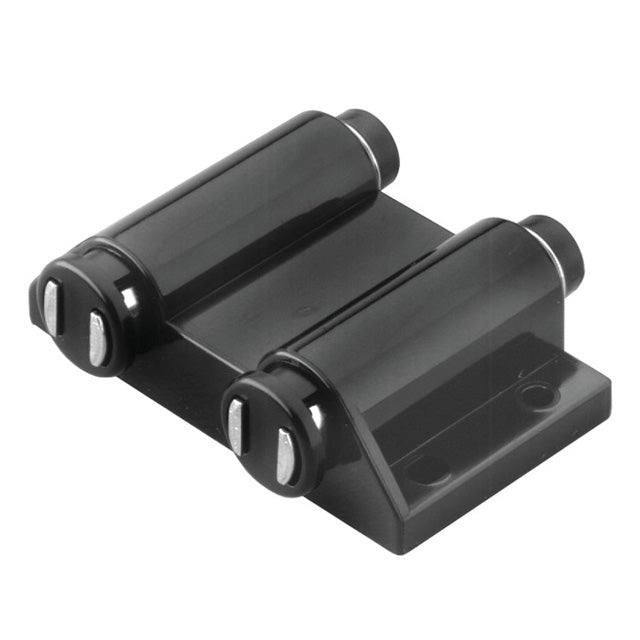

  • Use the double touch latch where two doors close together in the middle of the cabinet. Note: if ordering the double touch latch, you will need to order two wrap around plates for each latch that you order.

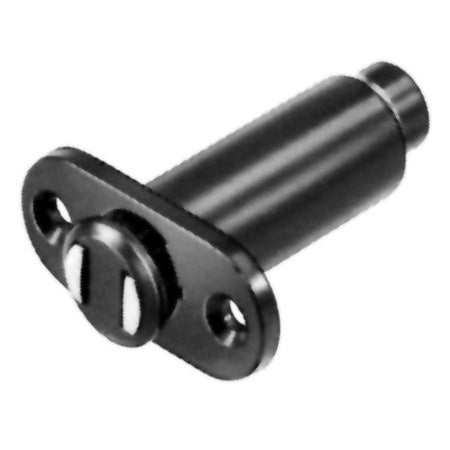

  • Use the "Push-In" touch latch where you have a wooden horizontal shelf. The Push-In touch latch pushes into a hole drilled in the edge of the shelf.

Screws

  • Screws are not included.

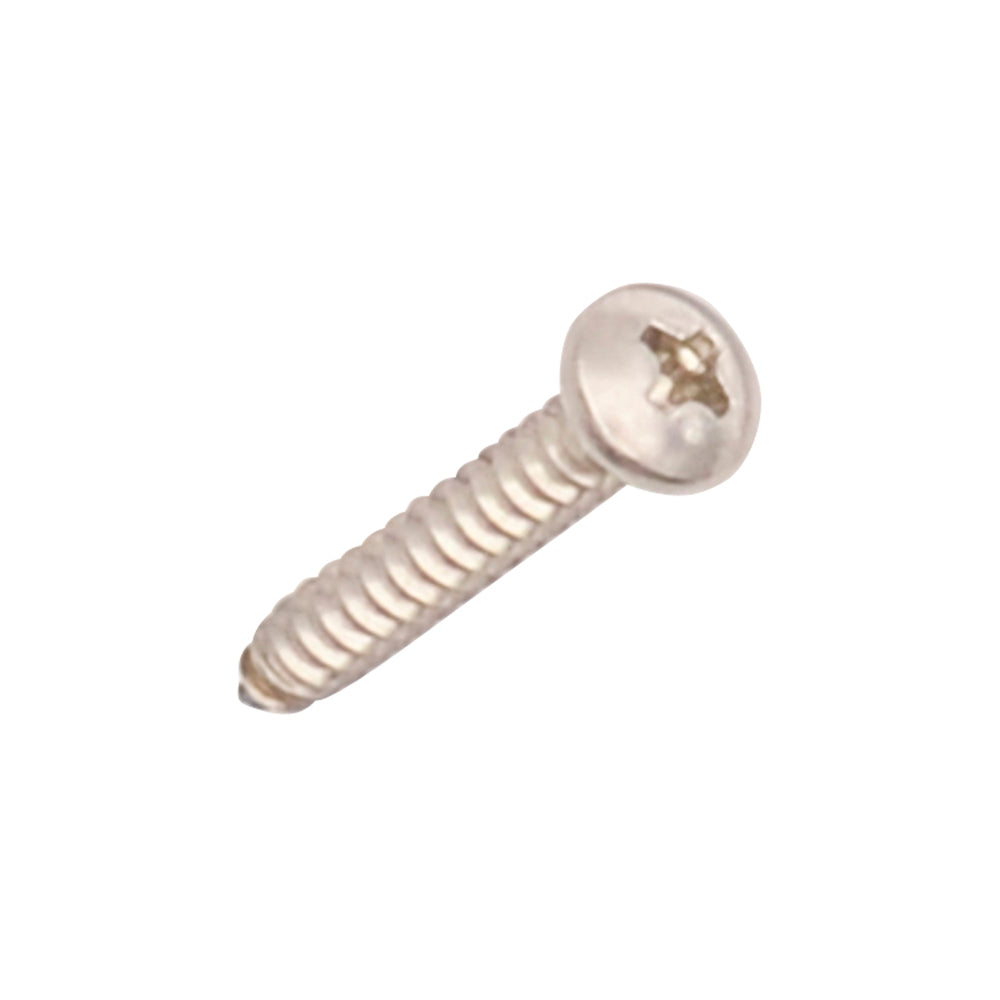

  • The Double Touch Latch uses four #4 Pan Head Screws (Our SKU 135400)
  • The Single Touch Latch uses four #4 Pan Head Screws (Our SKU 135400)

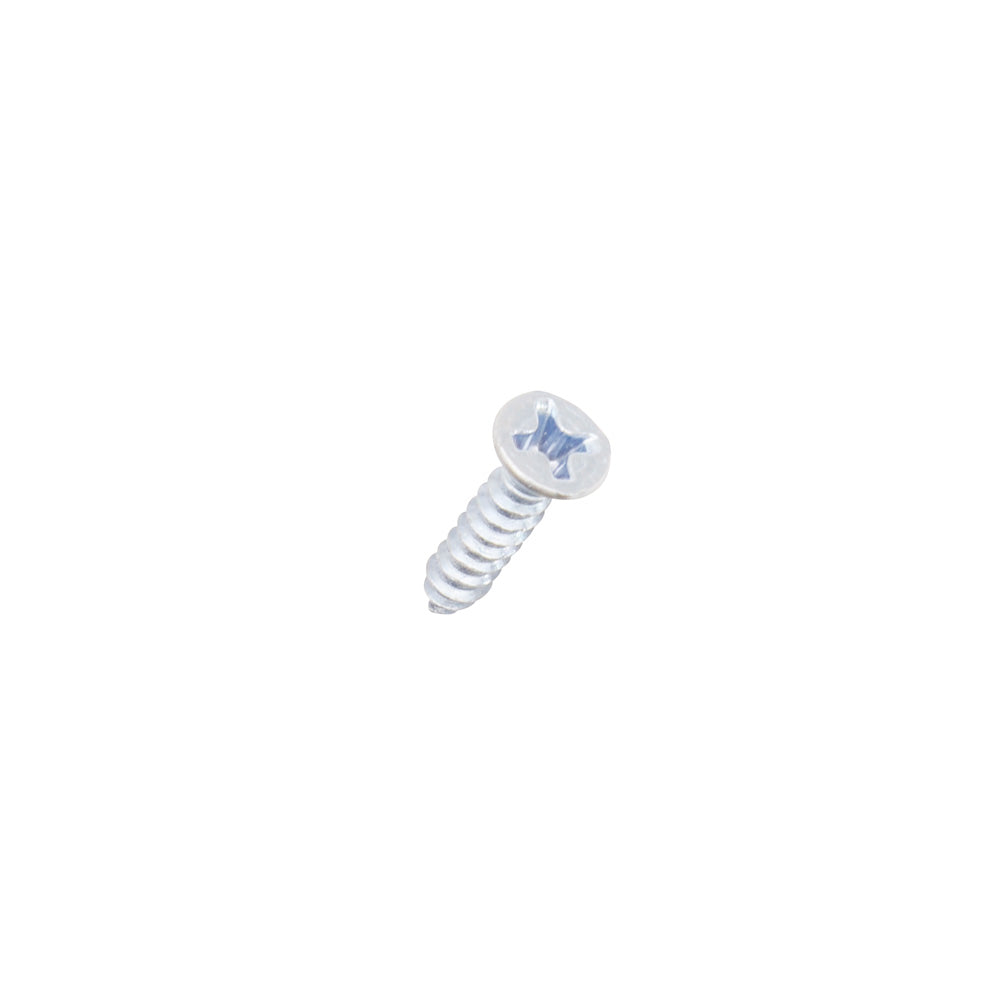

  • The Push In Touch Latch uses two #4 Flat Head Screws (Our SKU 135104)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10038

  • Material
    Plastic, Steel
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    #4 Pan Head or Flat Head Screws (depending on choice of latch)
