HardwareSource  |  SKU: 783000

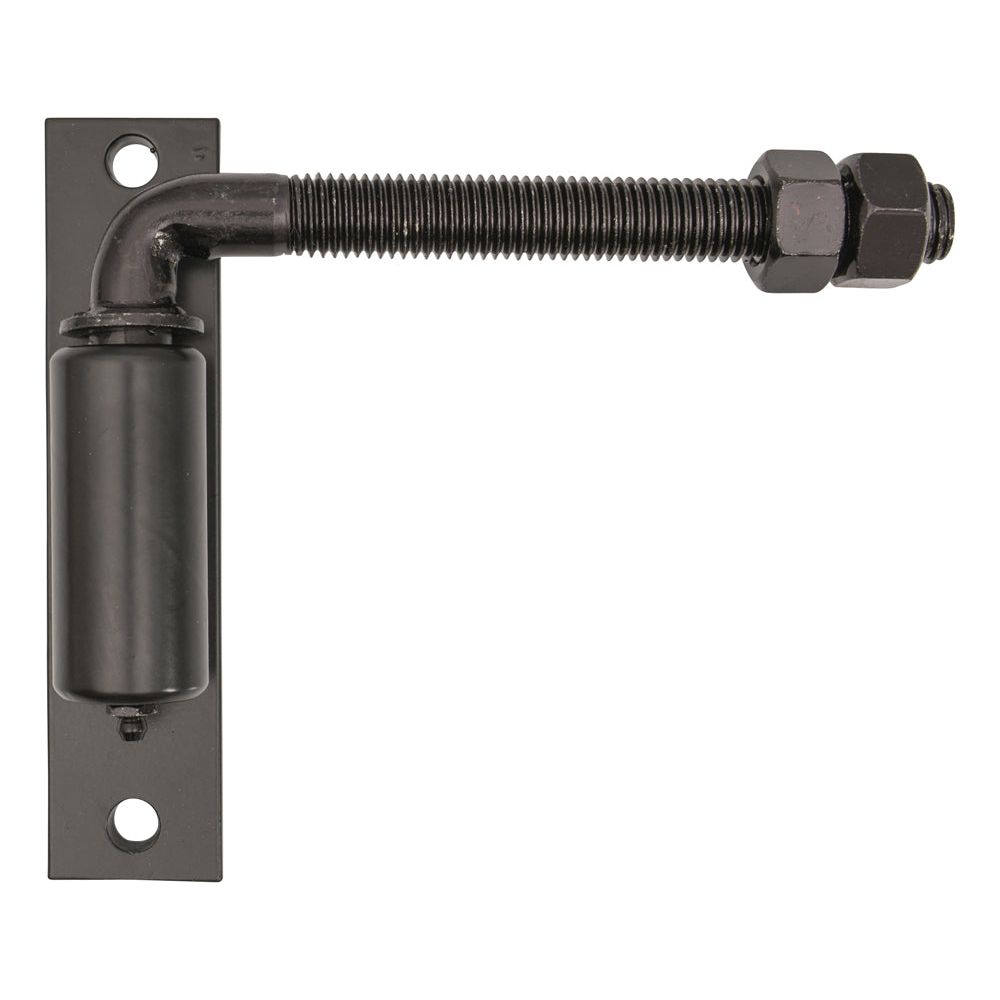

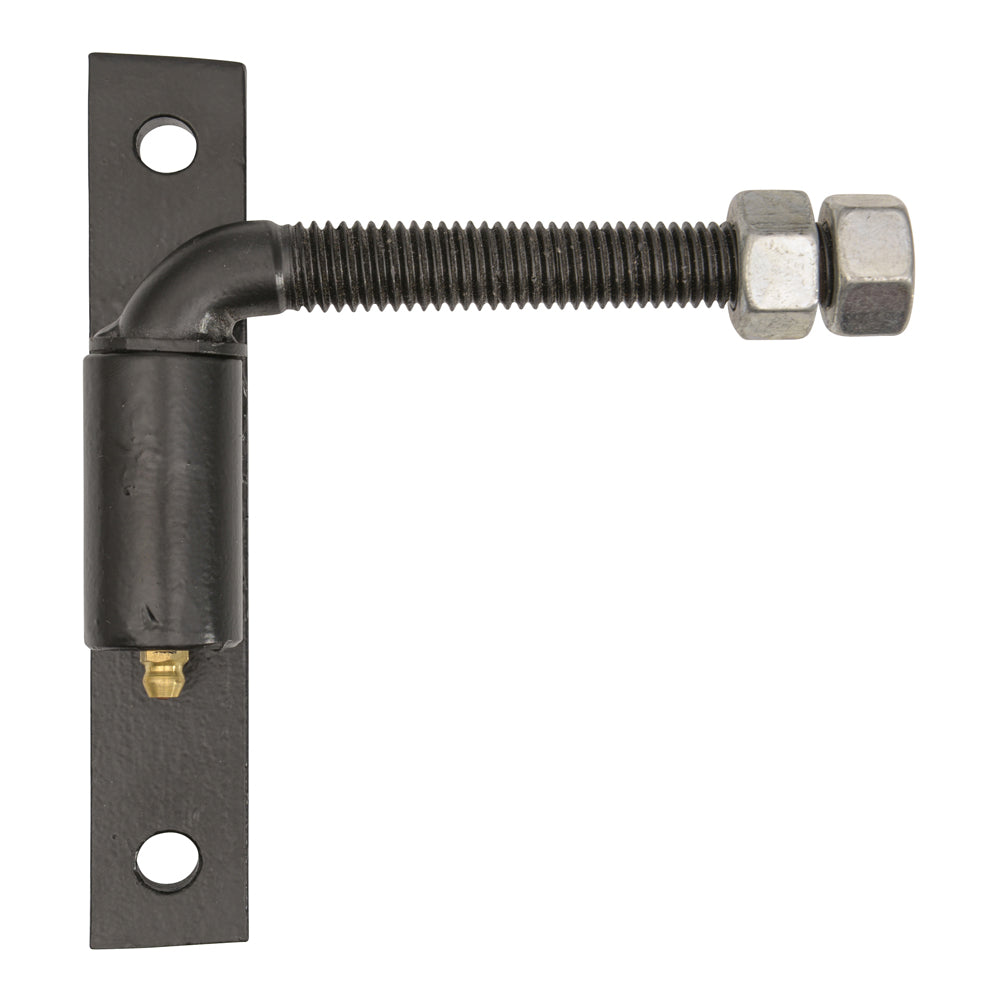

Heavy Duty J Bolt Hinge

$1597 Each
Size

Fasteners Not Included

Description

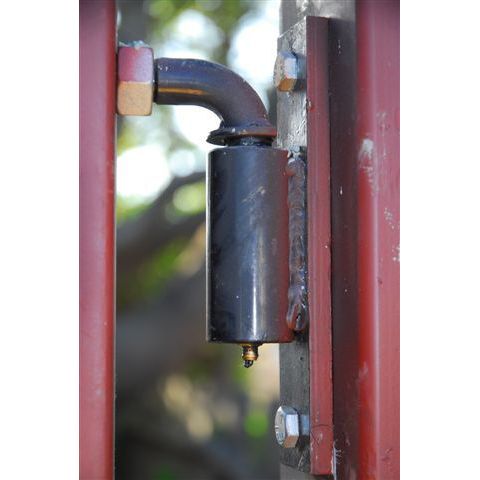

  • This is a very heavy duty hinge specially made for heavy gates and doors.
  • This heavy duty J bolt gate hinge will swing a full 180 degrees if installed without a stop.
  • Hinge is made up of a mounting plate (flange) and J-Bolt arm.
  • Hinge pivots on a steel ball bearing and includes a grease fitting to keep the bearing lubricated.

Small:

  • Weight Rating: 500 lb per pair
  • Arm Size: 5/8" x 5"
  • Plate size: 6" x 1" x 3/8"
  • Screw hole center to center: 4-13/16"
  • Minimum gap between post and edge of gate frame: 2-1/2"
  • Maximum spread between two nuts on threaded bolt: 2-3/4"
  • Thread size: 5/8 - 11

Large:

  • Weight Rating: 900 lb per pair
  • Arm size: 3/4" x 7"
  • Plate size: 7" x 1-1/2" x 3/8"
  • Screw hole center to center: 5-3/4"
  • Minimum gap between post and edge of gate frame: 3-1/8"
  • Maximum spread between two nuts on threaded bolt: 4-1/4"
  • Thread Size: 3/4 - 10

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: C10266

  • Finish Name
    Black
  • Material
    Steel
  • Heavy Duty Hinge Type
    Bolt-On
  • Bearings
    Ball Bearing
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two 3/8" Lag Screws or Bolts

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
E
Eric S.
J bolt hinges

These hinges work really well, powder coating isn't very durable though.

J
Justin W.
Great Hinges

We’ve used these hinges for 4-5 years now. They are perfect for our custom steel gates.

J
James M.
Great Hinge for the price

I needed four gate hinges and I looked at this hinge online and compared it to the gate hinges that I could get at the big box stores. By the time I would purchase all of the components at HD or the others, I would spend a similar amount and not have a ball bearing hinge with a grease fitting and the close tolerances. Its a great value and the quality is top-notch.

C
Chris P.P.P.
Fast/Courteous Service!!

Love the products from Hardware Source! Fast delivery every time I order. Customer service is exceptional! Shout out to Rashad Russell!!!!

S
Sam M./.N.G.
Great hinges, fast affordable shipping!

I purchase from these guys on a regular basis and always get exactly what I ordered and it arrives quickly! Thank you for the great service. N GA Fence Co.

Related Products

A table comparing the facets of 4 products
Facet

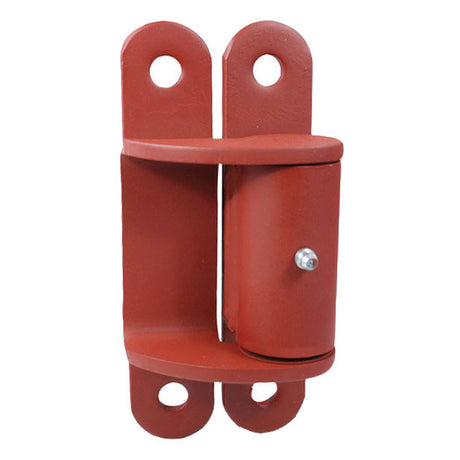

Heavy Duty Bolt-On Hinge, 7" Model
View details
Bolt-On Gorilla Hinge
View details

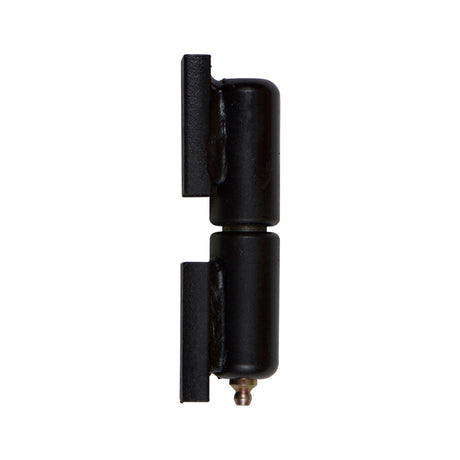

Weld-On Barrel Hinge
