Salice  |  SKU: 796801, 796700, 652360

Half Cranked Hinge for Frameless Cabinets, 40mm Cup - Bundle

$1145 Per Bundle

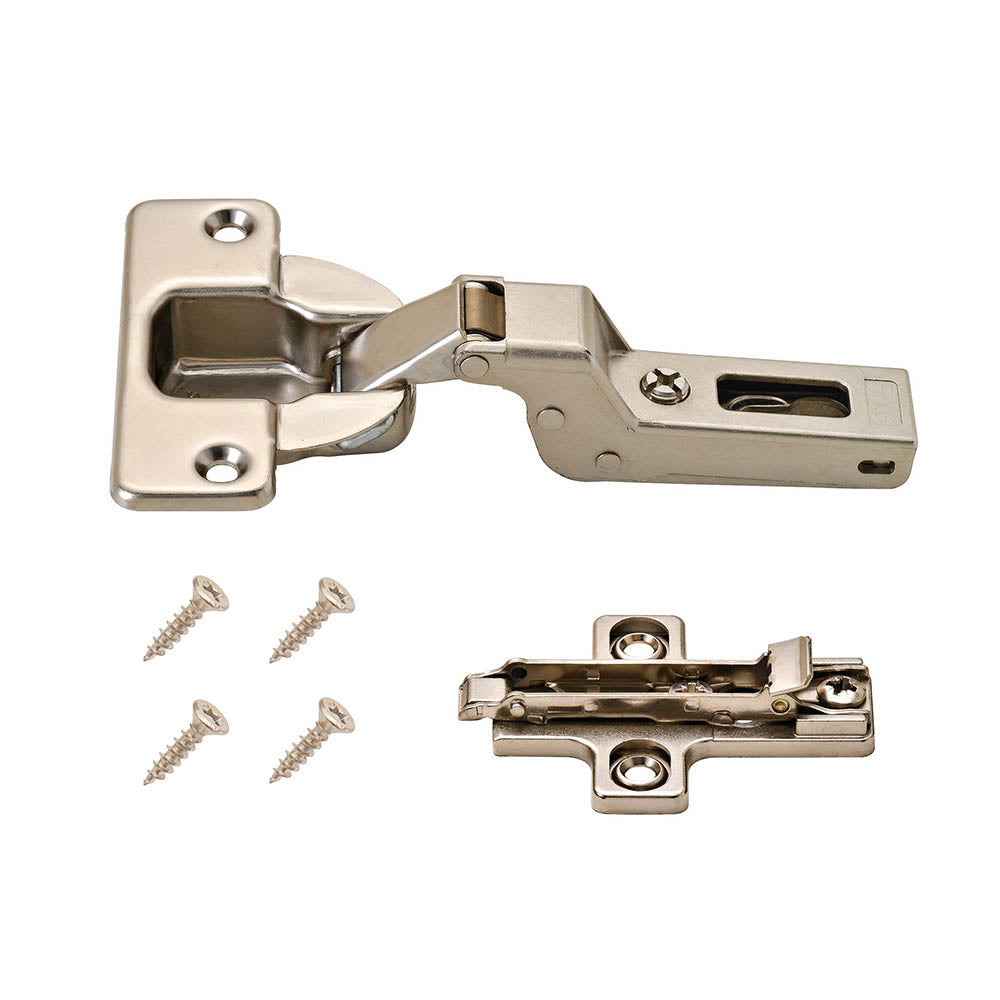

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Mounting Plate Height

Description

  • This European hinge has an extra large 40 millimeter (approx 1-9/16") cup for thick doors.
  • This hinge is made for half overlay (also known as back to back or twin overlay) doors on a frameless cabinet (no face-frame).
  • Minimum side panel thickness is 16mm (5/8").
  • Maximum door thickness is 1-1/2".
  • The overlay range is 10mm to 34mm depending on the mounting plate and bore distance used.
  • See "How to Select Your Mounting Plate" at the document found under Downloads to determine which mounting plate and bore distance is needed to acquire the desired overlay.
  • After installation, the overlay is slightly adjustable:
    • It can be decreased by 0.5 mm
    • It can be increased by 5.5 mm
  • Hinges are 3-way adjustable after installation. Mounting plates are 2-way adjustable after installation.
  • Mounting plates and hinges connect by "snapping" together.

What's Included

  • 1 x 40mm Cup Half Cranked Hinge
  • 1 x Mounting Plate (six options available, please see "How to Select Your Mounting Plate" below)
  • 4 x #6 Wood Screws

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10075

  • Manufacturer
    Salice
  • Model Number
    Hinge: CFA7G99
    0mm Plate: BAR3R09
    2mm Plate: BAR3R29
    3mm Plate: BAR3R39
    6mm Plate: BAR3R69
    9mm Plate: BAR3R99
    12mm Plate: BAR3RC9
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Thick Door
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    94 Degrees
  • Cup Diameter
    40mm
  • Screw Hole Spacing
    52mm (2-1/16")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Four #6 x 5/8" Flat Head Wood Screws
