Grass  |  SKU: 701365, 701390, 652360

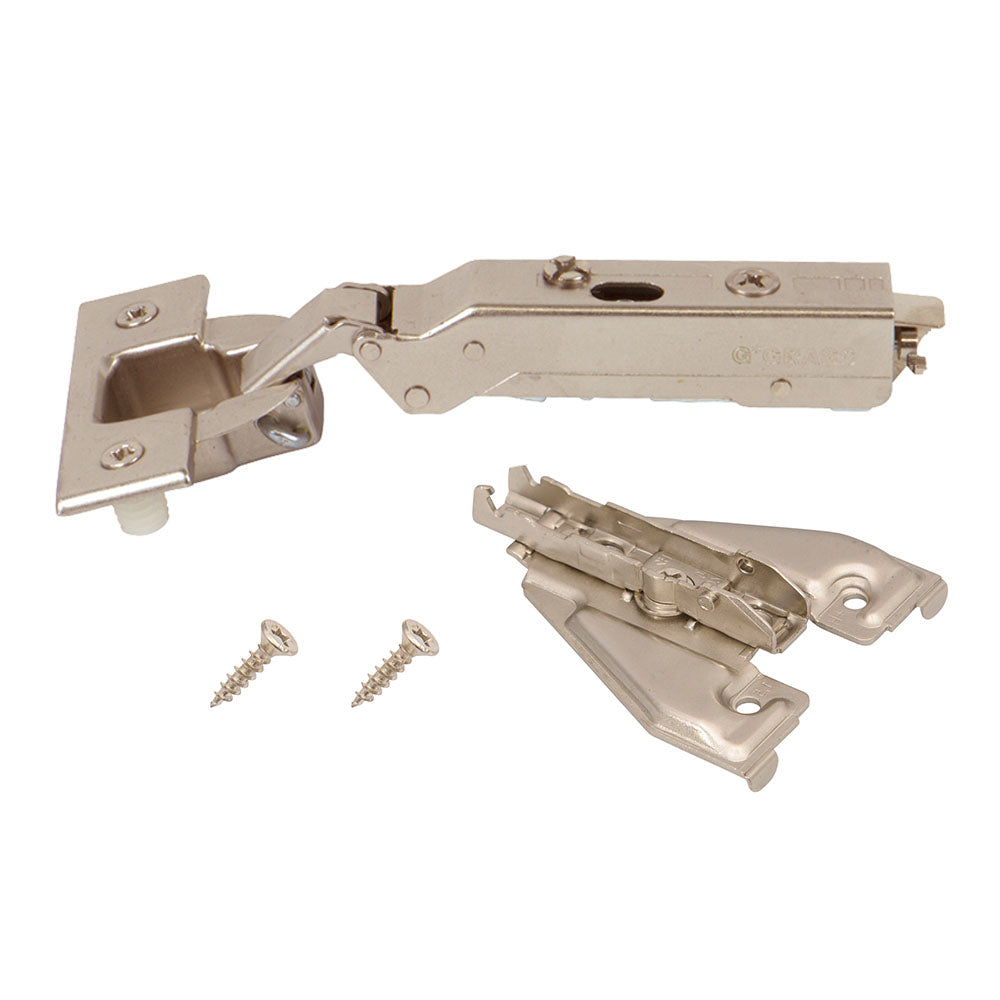

Grass Soft-Close Straight Arm for Face Frame Cabinets - Bundle

$1347 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Hinge Screw Hole Spacing
Grass Face Frame Mounting Plates (Mounting Plate Height)


  • Straight Arm hinge bundle for face frame cabinets with overlay doors
  • This hinge can be used for new construction or to replace worn out or obsolete Grass straight arm hinges that open approximately 110 degrees.
  • This hinge is available with either 42mm (1-5/8") or 45mm (1-3/4") screw hole spacings for the hinge cup. Screw holes are measured from center to center (center of one hole to the center of the other hole). See the document found under Downloads to view a diagram showing the screw hole spacing.
  • An optional restriction clip is not included (restricts door opening to 85 degrees) is available for purchase separately (our SKU 701349).


  • A soft close feature which eliminates the slamming door sound that you get with typical self-closing European hinges.
    • This hinge has a lever on the back that adjusts the soft close speed by choosing one of three different closing pressure settings.
    • The soft close mechanism is fully integrated into the hinge arm rather than the hinge cup.
  • Four different adjustments:
    • Soft close pressure
    • Depth adjustment (+3 mm and -2 mm)
    • Side adjustment (overlay on this hinge) +2 mm and -2 mm
    • Height adjustment (+2 mm and -2 mm)
    • See the document found under Downloads for information on how to adjust


  • Hinge cup size is 35 mm (1-3/8"). Cup depth is 1/2".
  • Door opening angle is 110 degrees
  • Works for bore distances of from 3 mm to 7 mm
  • Works for the following overlay dimensions 12.5 mm (1/2") to 22.5 mm (7/8")
  • Works for door thicknesses 16 mm to 24 mm
  • An optional restriction clip (restricts door opening to 85 degrees) is available (our SKU 701349).

What's Included

  • 1 Grass Tiomos Straight Arm Soft-Close Hinge
  • 1 Mounting Plate
  • 2 #6 Screws for the Mounting Plate
  • 2 Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10058

  • Manufacturer
  • Model Number
    42mm Hinge: F028138341
    45mm Hinge: F028138523
    1.5mm Plate: F058139825
    3.5mm Plate: F058139826
    4.5mm Plate: F058139827
  • Finish Name
  • Material
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
  • Self-Closing
  • Plate Connection Type
  • Opening Angle
    110 Degrees
  • Cup Diameter
  • Screw Hole Spacing
    42mm (1-5/8"), 45mm (1-3/4")
  • Mounting Hardware Included
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Wood Screws
