Generic 170 Degree Overlay Hinge for Frameless Cabinets - Bundle
Couldn't load pickup availability
Description
Description
- Generic 170 degree European style hinge bundle.
- For 3/4" thick overlay doors on 3/4" frameless cabinets
- Hinge allows vertical, horizontal and depth adjustment after installation.
- Hinge fits into a 35mm (1-3/8") "cup" drilled into the back of the cabinet door.
- Will accommodate overlays from 1/2" to 3/4" (13 to 19mm). The overlay is determined by the mounting plate and bore distance used.
- For a 13mm overlay use the 3mm mounting plate and a 4mm bore distance.
- For a 14mm overlay use the 3mm mounting plate and a 5mm bore distance.
- For a 15mm overlay use the 3mm mounting plate and a 6mm bore distance.
- For a 16mm overlay use the 3mm mounting plate and a 7mm bore distance OR the 0mm mounting plate and a 4mm bore distance.
- For a 17mm overlay use the 0mm mounting plate and a 5mm bore distance.
- For a 18mm overlay use the 0mm mounting plate and a 6mm bore distance.
- For a 19mm overlay use the 0mm mounting plate and a 7mm bore distance.

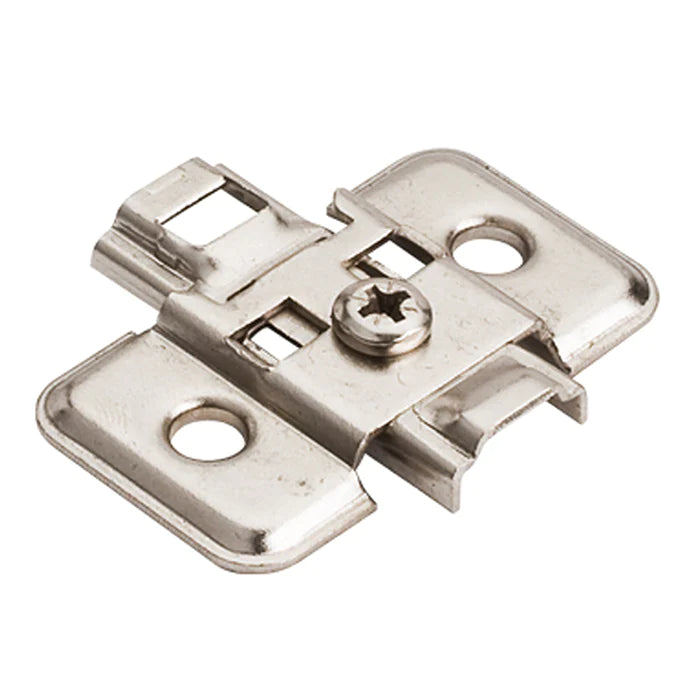

Mounting Plates
- The "standard" mounting plate uses #6 x 5/8 wood screws (not included but available as an add-on item).
- The "special" mounting plate is made to be used with cabinets where there are holes drilled for press-in shelf supports. Additional screws are not needed.
- Use the list above to determine which mounting plate you need to achieve your desired overlay.
- Both mounting plates offer full adjustability.
What's Included
- 1 x Generic 170 Degree European Hinge
- 1 x Frameless Mounting Plate (four options available)
- 2 x Dowels and Screws for the Hinge
- 2 x #6 x 5/8" Flat Head Wood Screws
Notes
- Dowels and screws come preattached to the hinge. Dowels are typically used in MDF or particle board material. If mounting in solid wood, remove the dowels and use the included wood screws.
- European hinges are made up of two parts: a hinge and a mounting plate. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners. Please make sure to order at least two hinge bundles for each door you are hanging. Larger doors may require more than two.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10083
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeFull Overlay
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle170 Degrees
-
Cup Diameter
-
Screw Hole Spacing45mm (1-3/4")
-
Mounting Hardware Included
-
Mounting Hardware Type
