Blum  |  SKU: 701102, 652304, 652360, 268000

Blum Mini Hinge for Face Frame Overlay Cabinets - Bundle

$852 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Mounting Plate Height

Description

  • Blum's mini straight arm clip top hinge for face frame overlay cabinets.
  • For doors with a narrow style or for smaller sized doors.
  • Fits in a 26mm cup drilled in the back of the door.

What's Included

  • 1 Blum Mini Straight Arm Hinge
  • 1 Blum Face Frame Mounting Plate:
    • There are three possible mounting plates for face frame overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" document found under Downloads.
  • Two #6 x 5/8" screws for the hinge
  • Two #7 x 5/8" screws for the mounting plate

Optional Accessories - Available for purchase separately:

  • Cover Plate for Arm Part of Hinge - Hides the screws on the hinge arm providing a cleaner appearance
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10125

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71T0550
    0mm Plate: 175L6600.22
    3mm Plate: 175L6630.22
    6mm Plate: 175L6660.22
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    95 Degrees
  • Cup Diameter
    26mm
  • Screw Hole Spacing
    38mm (1-1/2")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Wood Screws for the hinge and two #7 x 5/8" Flat Head Wood Screws for the mounting plate

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet

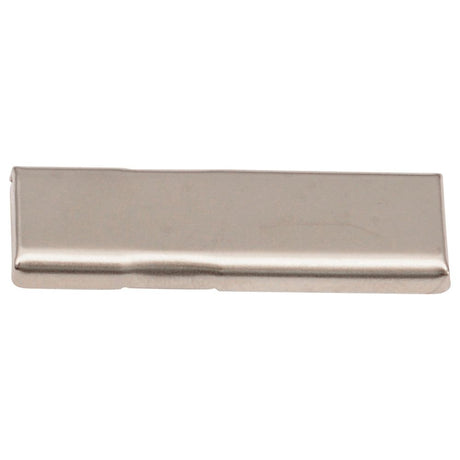

Blum Cover Plate For Mini Hinges & Glass Door Hinges
