Blum  |  SKU: 701104, 268225, 652360

Blum Mini Hinge for Face Frame Inset Cabinets - Bundle

$1160 Per Bundle

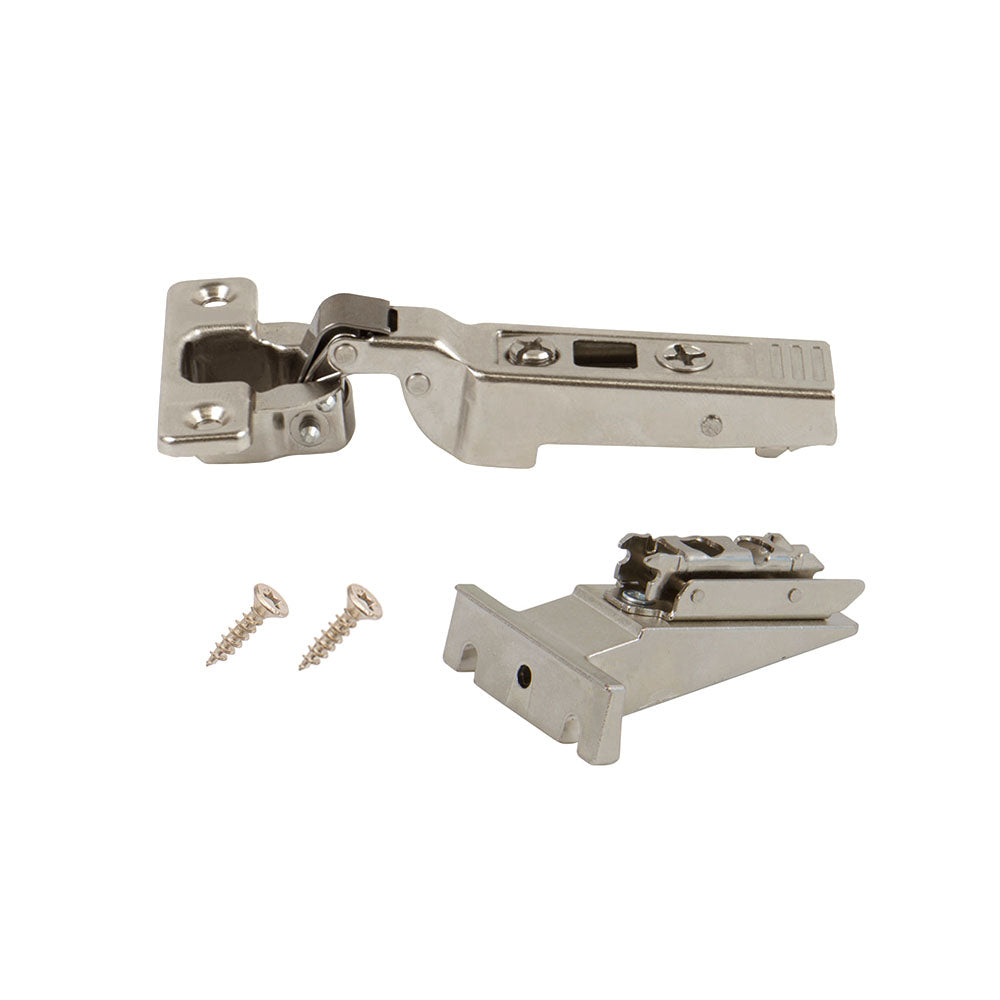

One bundle includes 1 hinge, 1 mounting plate, and 2 screws for the hinge. Screws for the mounting plate sold separately.

Description

  • Blum's mini half cranked clip top hinge for face frame inset cabinets.
  • For doors with a narrow style or for smaller sized doors.
  • Fits in a 26mm cup drilled in the back of the door.
  • Please reference the minimum reveal information document under Downloads to verify if this bundle will work for you.

What's Included

  • 1 Blum Mini Half Cranked Hinge
  • 1 Blum Face Frame Adapter Mounting Plate
  • Two #6 x 5/8" screws for the hinge

Mounting Screws for Mounting Plate (Not Included):

  • Two #8 pan head screws are required for the mounting plate but are not included in this bundle. This is because at the time we only sell these screws in packs of 5. To purchase these screws, please see the related products (SKU 135410).

Optional Accessories - Available for purchase separately:

  • Cover Plate for Arm Part of Hinge - Hides the screws on the hinge arm providing a cleaner appearance
  • Pack of five #8 x 3/4" pan head screws. Two screws are required for each adapter plate purchased. (SKU 135410)
  • Blum Platemate. To drill the angled holes for the adapter plate the purchase of the Blum Platemate is highly recommended although not absolutely necessary. The Blum Platemate clamps on the edge of the face frame and allows accurate drilling of the adapter plate screw holes. (SKU 268227)
    • PLEASE NOTE: THE BLUM PLATEMATE IS A NON-RETURNABLE ITEM.
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10124

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71T0650
    Mounting Plate: 175H5030.21
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Flush Inset
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    95 Degrees
  • Cup Diameter
    26mm
  • Screw Hole Spacing
    38mm (1-1/2")
  • Mounting Hardware Type
    #6 x 5/8" Screws included for the hinge side. Screws for the mounting plate sold separately (see description for details)
