Blum  |  SKU: 701160, 268225

Blum Inserta Hinge for Face Frame Inset Cabinets - Bundle

$787 Per Bundle

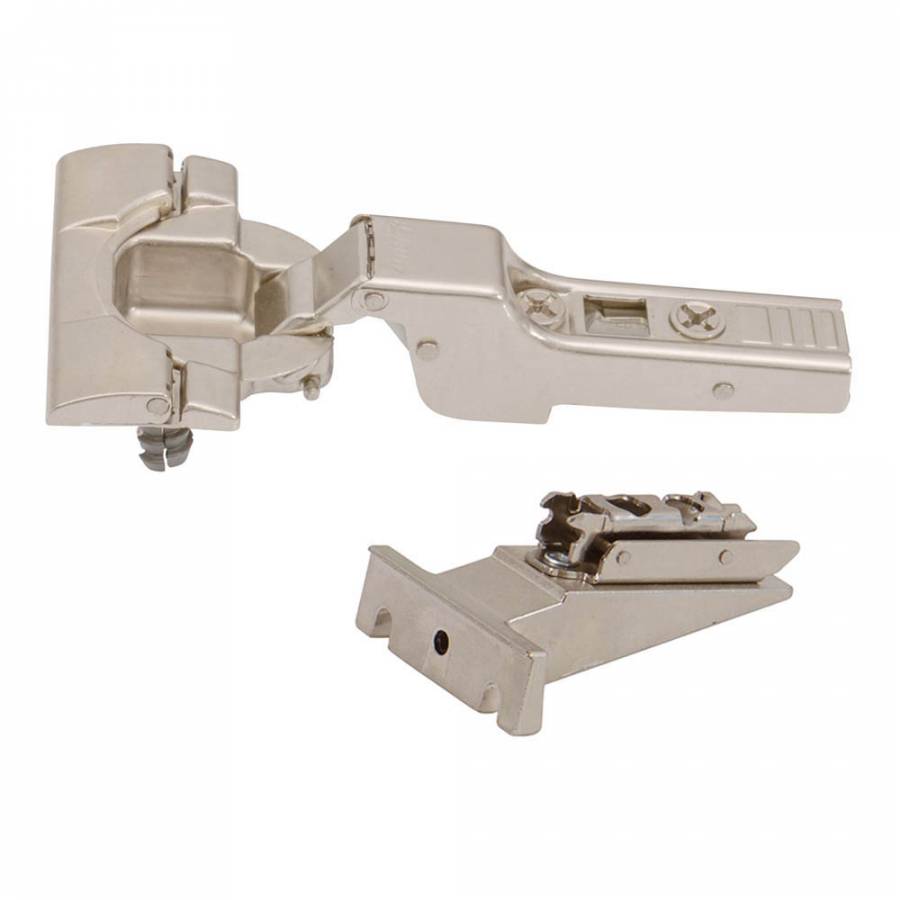

One bundle includes 1 hinge and 1 mounting plate.

Fasteners Not Included

Description

  • Blum Inserta half-cranked hinge bundle for full inset doors on face frame cabinets.
  • Inserta hinges install on the door without using screws. On the hinge cup is a cover that acts as a lever. By pressing down on the lever, an anchor device is expanded which secures the hinge. This type of hinge is also known as a tool-free or toolless hinge.
  • This hinge uses two 8mm (5/16") holes where the wood screw holes would normally be to secure the hinge. See the document found under Downloads to view the Inserta screw hole pattern.
  • The hinge and mounting plate attach to each other by snapping on.
  • To drill the angled holes for the adapter plate the purchase of the Blum Platemate is highly recommended although not absolutely necessary. The Blum Platemate clamps on the edge of the face frame and allows accurate drilling of the adapter plate screw holes. The Platemate includes a drill bit and drill bit extension for a #8 drill bit (2.5mm bit).The Blum Platemate (SKU 268227) can be purchased from us separately.

What's Included

  • 1 x Blum Inserta Full-Cranked Hinge
  • 1 x Face Frame Adapter Mounting Mounting Plate
  • Important Note: Two #8 pan head screws are required for the mounting plate but are NOT included in this bundle. This is because at the time we only sell these screws in packs of 5. To purchase these screws, please see the related products below (SKU 135410).

Available for purchase separately:

  • Pack of five #8 x 3/4" pan head screws. Two screws are required for each adapter plate purchased.
  • Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268002)
  • Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action (SKU 268230)
  • Blum Platemate. To drill the angled holes for the adapter plate the purchase of the Blum Platemate is highly recommended although not absolutely necessary. The Blum Platemate clamps on the edge of the face frame and allows accurate drilling of the adapter plate screw holes. PLEASE NOTE: THE BLUM PLATEMATE IS A NON-RETURNABLE ITEM.
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Restriction clip. Limits angle of opening to 86 degrees (SKU 701113)
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)
  • 35mm Forstner Bit, for new installations (SKU 204000)
  • Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10091

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71T3690
    Mounting Plate: 175H5030.21
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Flush Inset
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    110 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #8 x 3/4" Pan Head Wood Screws for the mounting plate
