Blum  |  SKU: 652280

Blum Compact 33 Wrap Around Plates Replacements

$499 Each
Overlay

Fasteners Not Included

Description

  • The Blum wrap around mounting plates have been discontinued by Blum. You can use these mounting plates as a substitute.

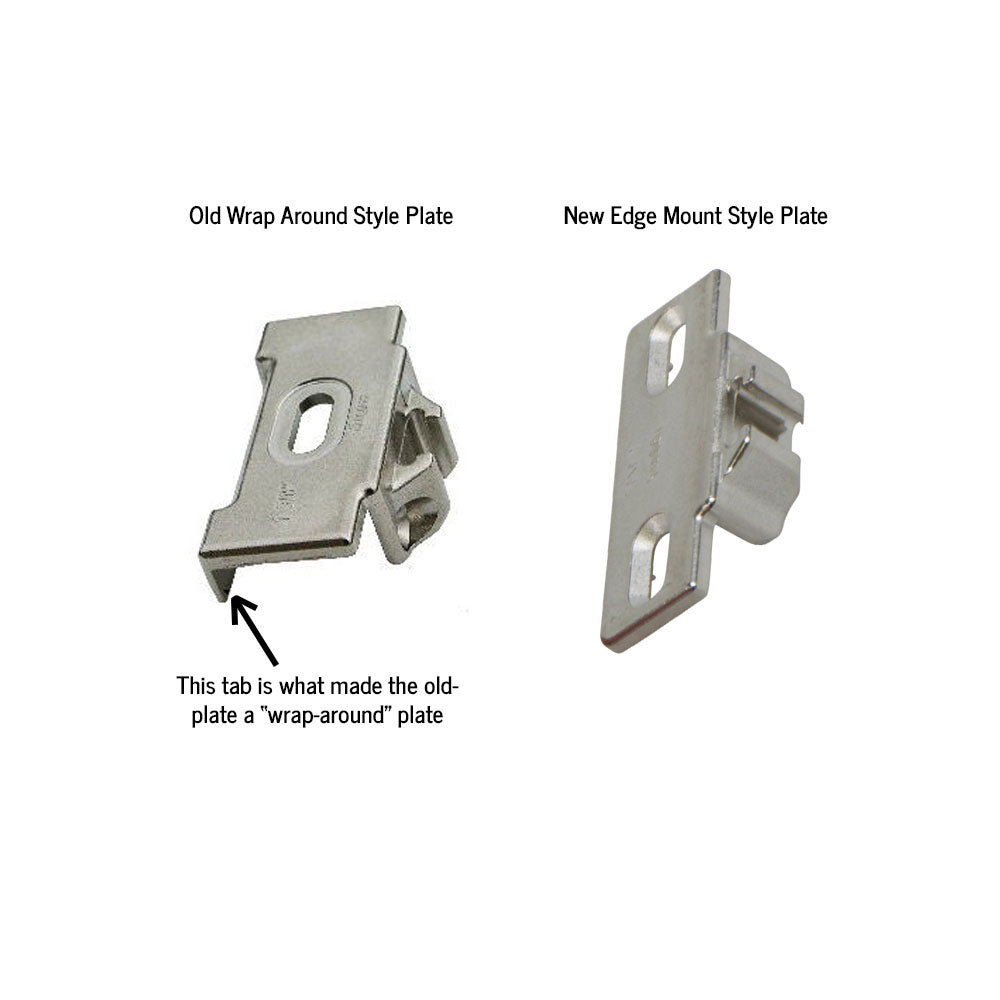

  • The wrap around mounting plates had a small plate that wrapped around the inside edge of the face frame to make installation a bit easier. The wrap around plates have been replaced with new "edge mount plates".

How to Choose the Correct Replacement Plate

  • The overlay or Blum stock number is usually stamped on the mounting plate. You may see numbers on your old mounting plate that look slightly different from what is listed below. For overlays of 1" and larger, the important Blum numbers are the first six digits (for ecample, for 130.2110.02, the important digits are 130.211). For overlays of 1/2", 5/8", and 3/4", you need to consider the entire number, although the format may not match exactly.
  • The following table shows the discontinued mounting plates and their corresponding overlay dimension. Use the overlay dimension to substitute our regular edge mount plates.
Old Blum Stock Number Overlay New Edge Mount SKU
130.2100.23 1/2" 652280
130.2100.26 5/8" 652344
130.2100.22 3/4" 652278
130.2110.02 1" 652346
130.2120.02 1 - 1/8" 652347
130.2130.02 1 - 1/4" 652349
130.2140.02 1 - 3/8" Discontinued
130.2150.02 1 - 1/2" 652350
130.2160 1 - 5/8" Discontinued

Warranty

Limited Warranty
Blum, Inc. (Blum) warrants its lift systems, hinges and/or drawer runners,
contained in this product, but not the product itself, against defects in material
and workmanship for as long as the original consumer purchaser owns the
products. This warranty is a warranty of replacement only. Blum specifically
does not warrant removal of the defective hardware nor installation of new
hardware. This warranty does not cover hardware which has been incorrectly
installed, exposed to excessive loads or otherwise used in any manner contrary
to its intended purpose. In the event the defective Blum hardware is obsolete or
has been discontinued, Blum reserves the right to replace the defective
hardware with a current offering. No guarantee of interchangeability is offered.

Other terms and conditions:
ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE EXPRESSLY LIMITED AS SET FORTH ABOVE.

However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS
HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF BLUM WITH
RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.
IN NO EVENT SHALL BLUM BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR
FAILURE OF ITS HARDWARE.

However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: G10004

  • Manufacturer
    Blum
  • Finish Name
    Nickel
  • Material
    Cast Metal
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Plate Connection Type
    Screw-On
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Two #6 x 5/8" Wood Screws
