Blum  |  SKU: 268601, 652304, 652360, 268000

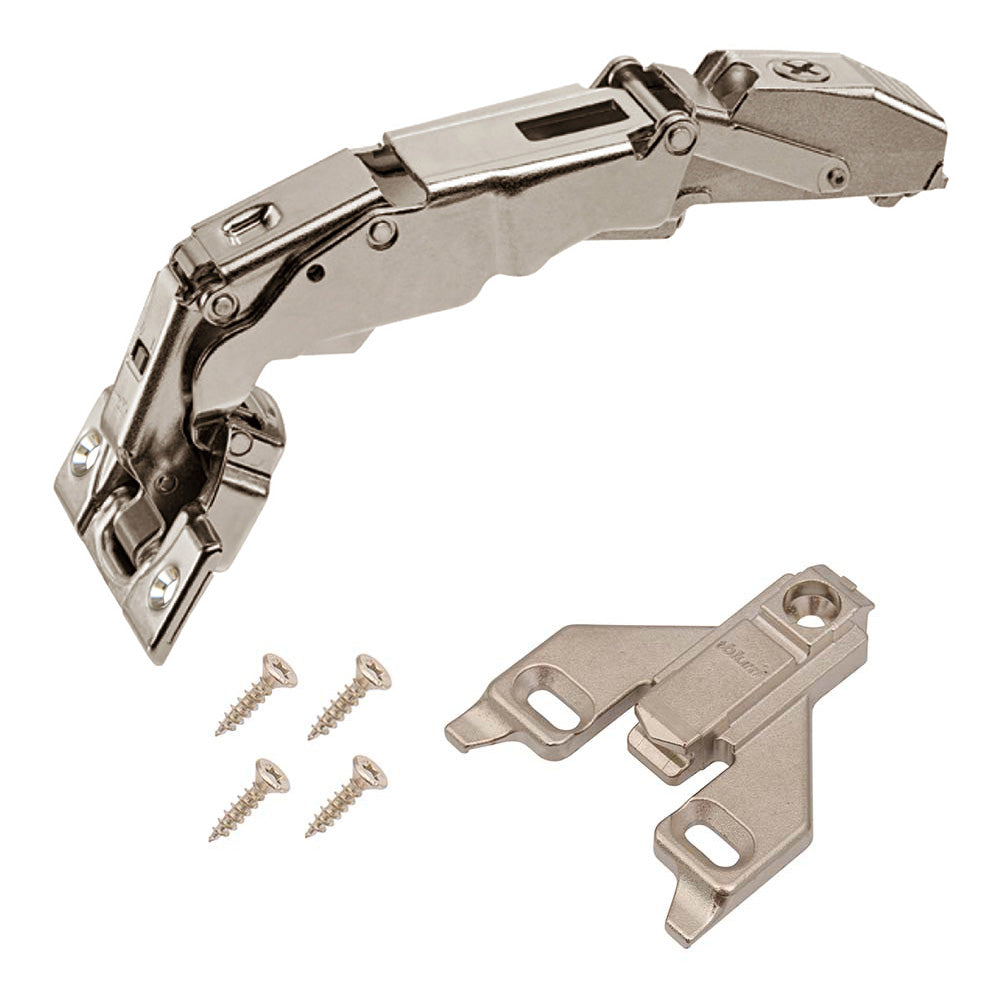

Blum Blumotion 155 Degree Special Application Hinge - Face Frame Bundle

$1367 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 4 screws.

Mounting Plate Height

Description

  • Blum 155 degree hinge bundle for overlay doors on face frame cabinets featuring built-in Blumotion.
  • Blumotion is Blum's built-in soft close feature which adds a silent and effortless door closing action.
  • This hinge can be used for the following special applications:
    • Zero protrusion
    • Thick door (25mm or ~31/32")
    • Large overlay (34mm or ~1-11/32")
    • Doors with thin facings added
    • Mitered doors with large overlays
  • For all applications except for zero protrusion, you will want to use the 0 mm mounting plate.
  • See the documents under Downloads for more info on these special applications.
  • Note: with all installations of this hinge, trial applications are highly advised as unforseen variables often exist.

What's Included

  • 1 Blum Blumotion 155 Degree Hinge
  • 1 Blum Face Frame Mounting Plate
    • There are two possible mounting plates for frameless overlay cabinets. Each plate is a different height, which, in combination with the bore distance, changes the door overlay. It is important to match up your overlay to make sure your doors sit in the right position on your cabinet. To chose the correct mounting plate, use the "How to Select Your Mounting Plate" link.
  • Two #6 x 5/8" Flat Head Wood Screws for the hinge
  • Two #7 x 5/8" Flat Head Wood Screws for the mounting plate

Optional Accessories - Available for purchase separately:

  • Cover Plate for the Hinge Arm - Hides the screws on the hinge arm providing a cleaner appearance (SKU 268003)
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • Restriction clip. Limits angle of opening to 92 degrees (SKU 268774)
  • Blum Touch Latch for Self-Closing Doors (SKU 268822)
  • 35mm Forstner Bit, for new installations (SKU 204000)
  • Ecodrill, installation jig, for new installations (SKU 701000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10116

  • Manufacturer
    Blum
  • Model Number
    Hinge: 71B7550
    0mm Plate: 175L6600.22
    3mm Plate: 175L6630.22
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    Yes
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    155 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Wood Screws for the hinge and two #7 x 5/8" Flat Head Wood Screws for the mounting plate

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet

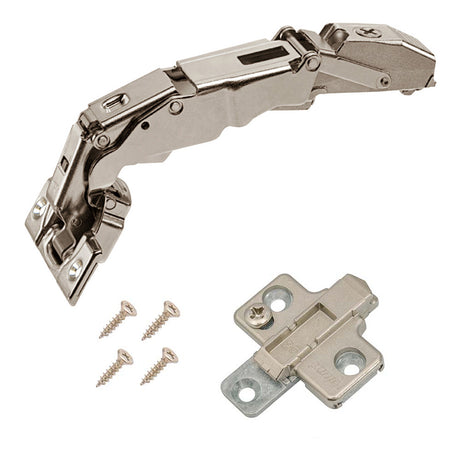

Blum Blumotion 155 Degree Special Application Hinge - Frameless Bundle
View details

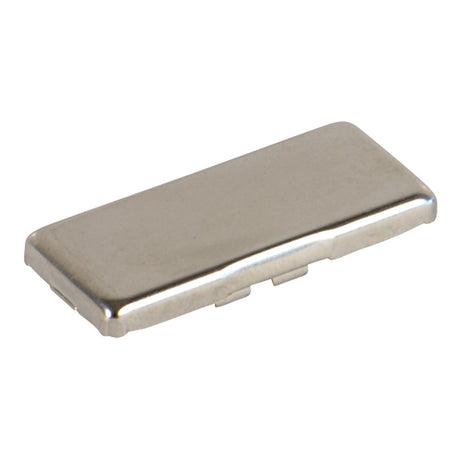

Blum Cover Plate For 170 Degree Hinges
Blum Cover Plate For 170 Degree Hinges
View details
Plastic Dowels & Dowel Screws for Blum Hinges
View details

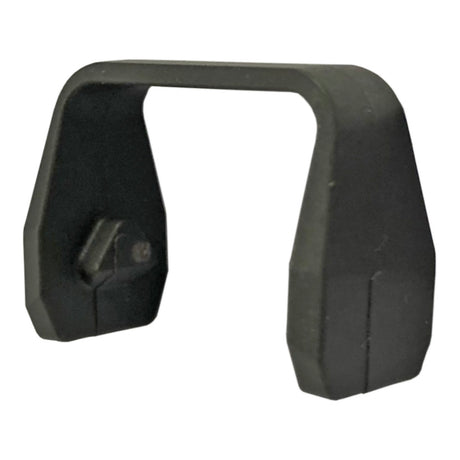

92 Degree Restriction Clip for 155 Degree Hinge
