SKU: 796653

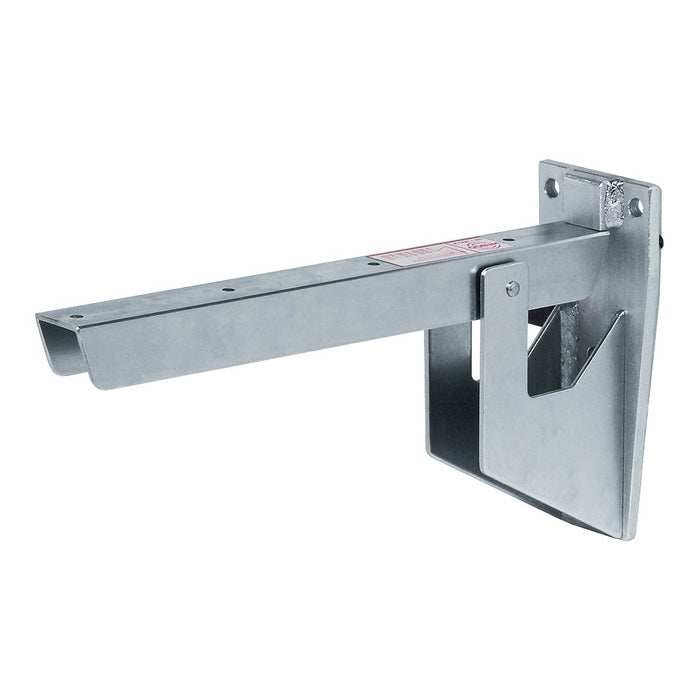

Bench Seat Hinge, Extra Heavy Duty

$24678 Each

Fasteners Not Included


  • This folding bench seat hinge is great for heavy duty applications. It can also be used as a shelf support.

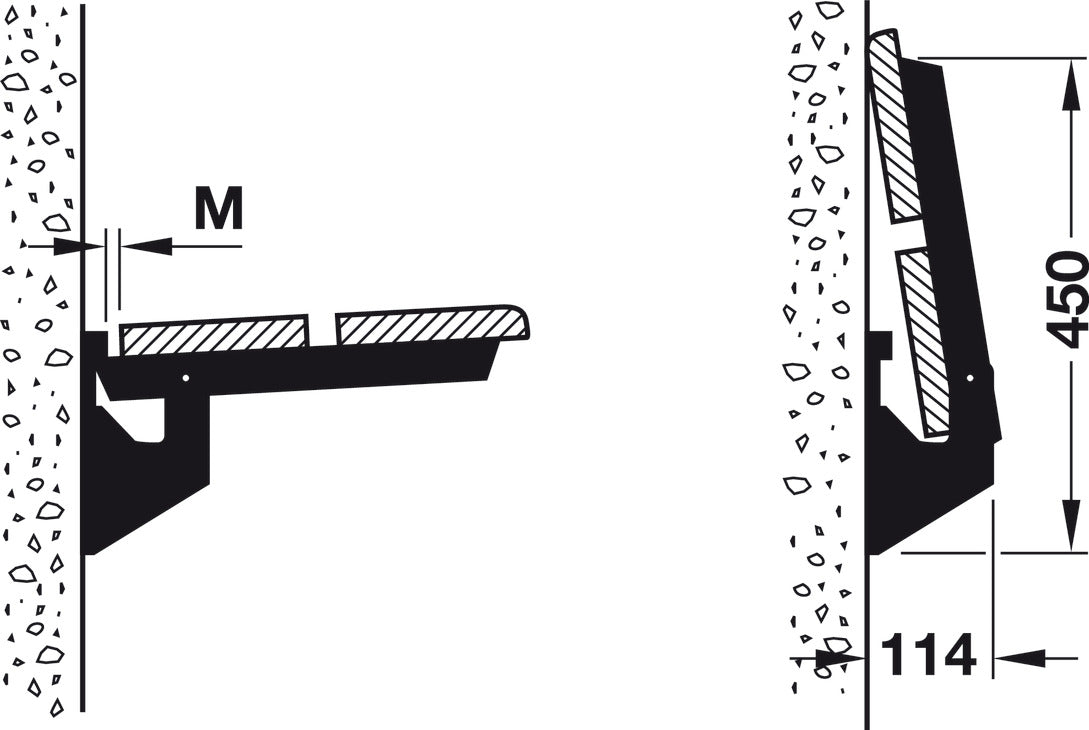

  • When not in use the seat or shelf folds up against the wall. In the up position the seat or shelf is held in place by gravity. If a more secure hold fast is needed, it will be necessary to add something such as a chain or other more positive holding device.

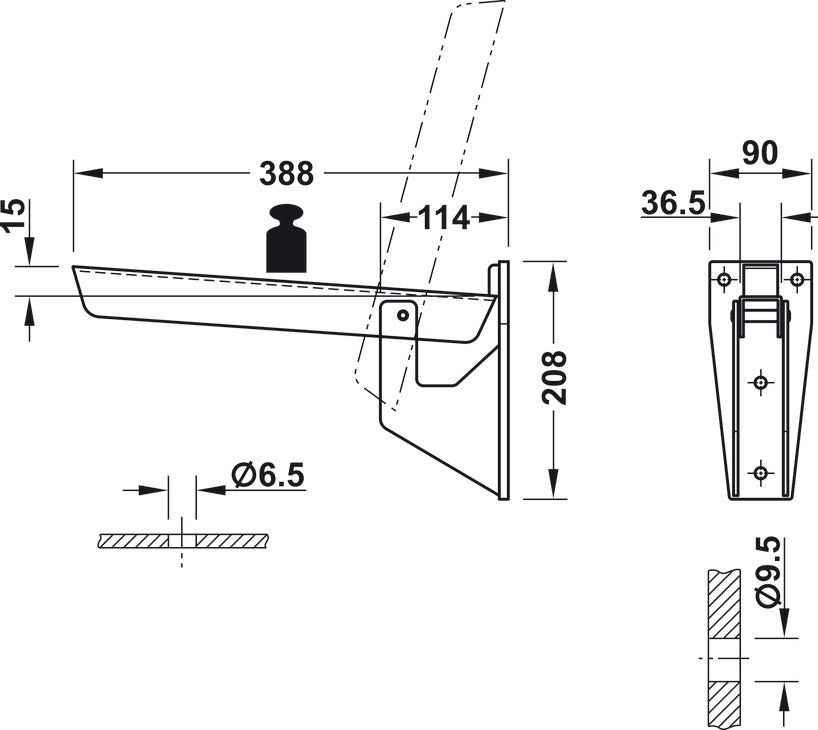

  • Wall mounting plate measures 8" tall by approximately 3.5". Plate is slightly over 1/4" thick.
  • Fold-down seat hardware projects out from wall 15".
  • Fold down arm is made from U-shaped steel and measures 1.5" x 1.5"
  • This product is sold by each. You will normally need to order 2 each for each bench seat or shelf you are hanging.
  • Because of the large load capacity of this device, it is important to use a proper method of attachment to your wall. Different wall types will use different attachment methods. Be sure to seek advice from a professional if you are not knowledgable in this area.
  • Load capacities are approximate figures and can change depending on application. These figures were determined by static testing – distributing the weight evenly over the surface, but not extending the length of the bracket. Maximum distance between 2 shelf supports is 700 mm (27 9/16").

Store Policies & Information

Shipping & Delivery
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 796653

  • Finish Name
  • Material
  • Load Capacity
    500 lbs. per pair
  • Mounting Hardware Included
  • Mounting Hardware Type
    Wall Mount Uses 4 Each 3/8" Diameter Fasteners. Arm Uses 4 Each 1/4" Diameter Fasteners.
