Metal Drop Flap Hinge
    Metal Drop Flap Hinge
    Click to zoom
    Purchase Metal Drop Flap Hinge
    SKU #: C10386 Not Rated Yet

    Metal Drop Flap Hinge

    $8.59 Each
      HardwareSource - Checkmark In Stock  & Ships by the next day!
      In Stock

      Overview

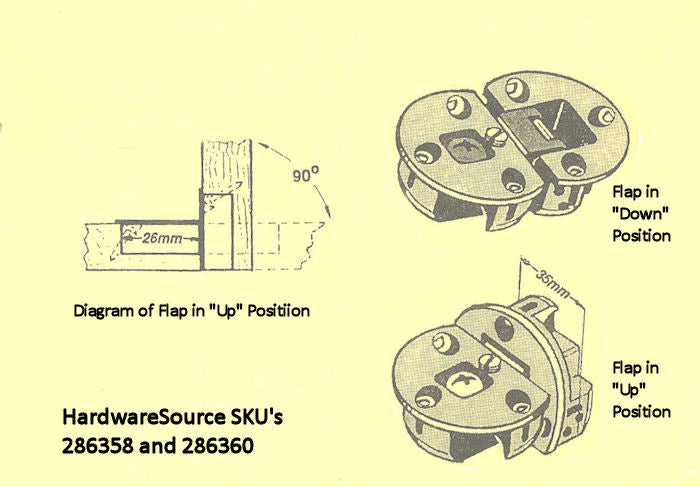

      • Allows panel to fold down and hold at 90 degrees flush with the shelf it is hinged to.
      • This concealed flap hinge fits a 35mm (1-3/8") partial hole.
      • The partial hole is located such that the far edge of the hole is 26 mm from the edge of the shelf and 26 mm from the edge of the flap.
      • Boring setup is identical on both the flap and the shelf.
      • Bore depth is 11 mm (7/16").
      • Features a 1/16" lip around the body of the hinge. Lip acts to conceal any roughness in the 35mm bore.
      • Hinge is detachable and 6-way adjustable
      • Hinge thickness is 15/32"

      Specs

      Zinc Alloy
      90 Degrees
      2 - 3/16"
      1 - 1/2"
      Yes
      Matching screws are included.
