Grass Impresso Soft-Close 160 Degree Hinge For Face Frame Overlay Cabinets - Bundle

$2172 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Mounting Plate Height

Description

  • Straight Arm 160 degree hinge bundle for face frame cabinets with overlay doors.
  • With these hinges, the soft-close mechanism is integrated into the hinge cup providing a very low profile design.
  • This hinge can be used for new construction or to replace worn out or obsolete Grass straight arm hinges that open approximately 160 degrees.
  • Please see the "How to Select Your Mounting Plate" document below to verify if this bundle will work for your application and determine which mounting plate is needed.

Features

  • Impresso Technology:
    • Impresso offers a quick and simple option for tool-free assembly. Perfect for flatpack cabinetry or transportation to the work site, Impresso hinges work with various door materials such as particle board, solid wood, and MDF board. All Impresso hinges are offered in a 42/45 combination drilling pattern and don't use any actual wood screws to attach the hinge to the door, but rather expand and retract the cup portion of the hinge for easy removal. Which is done by lifting and lowering the flap on the cup portion of the hinge.
  • A soft close feature which eliminates the slamming door sound that you get with typical self-closing European hinges.
    • This hinge has a lever one the back that adjusts the soft close speed by choosing one of three different closing pressure settings.
    • The soft close mechanism is fully integrated into the hinge arm rather than the hinge cup.
  • Four different adjustments:
    • Soft close pressure
    • Depth adjustment (+3mm and -2 mm)
    • Side adjustment / Overlay (+2mm and -2mm)
    • Height adjustment (+2mm and -2mm)
    • See the document found under Downloads for information on how to adjust

Details

  • Hinge cup size is 35mm (1-3/8"). Cup depth is 10mm (13/32").
  • Door opening angle is 160 degrees
  • Works for bore distances from 3mm (1/8") to 10mm (13/32")
  • Works for overlay dimensions from 11.5mm (5/16") to 22mm (7/8")
  • Works for door thicknesses 32mm (1-1/4")

What's Included

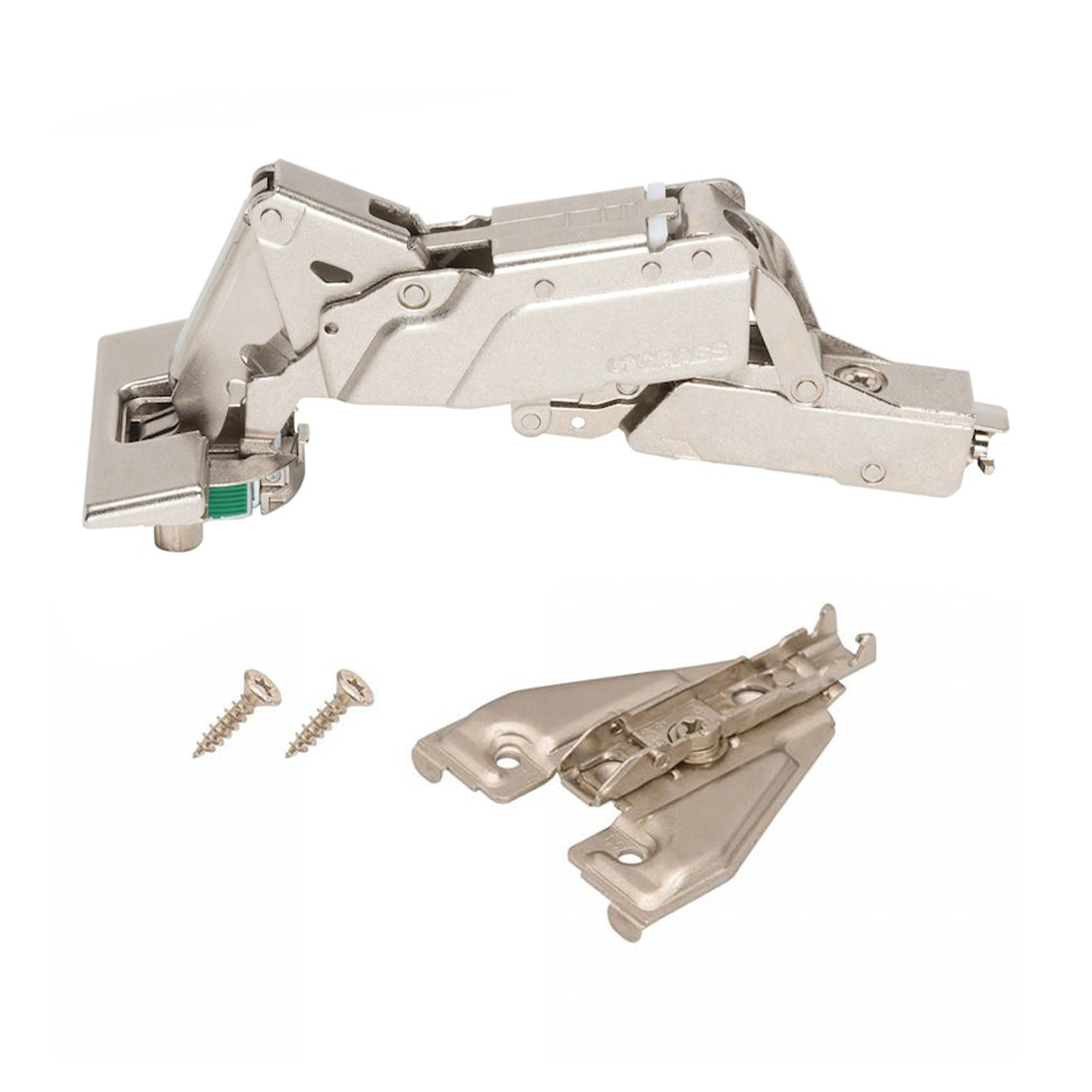

  • 1 x Grass Impresso Tiomos Straight Arm 160 Degree Soft-Close Hinge
  • 1 x Face Frame Mounting Plate (three options available depending on desired overlay dimension)
  • 2 x #6 Screws for the Mounting Plate

Available for purchase separately:

  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • 35mm Forstner Bit, for new installations (SKU 204000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10159

  • Manufacturer
    Grass
  • Model Number
    Hinge: F017139436217
    1.5mm Plate: F058139825
    3.5mm Plate: F058139826
    4.5mm Plate: F058139827
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    Yes
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    160 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    42mm (1-5/8"), 45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Two #6 x 5/8" Flat Head Wood Screws
