SKU: 286144

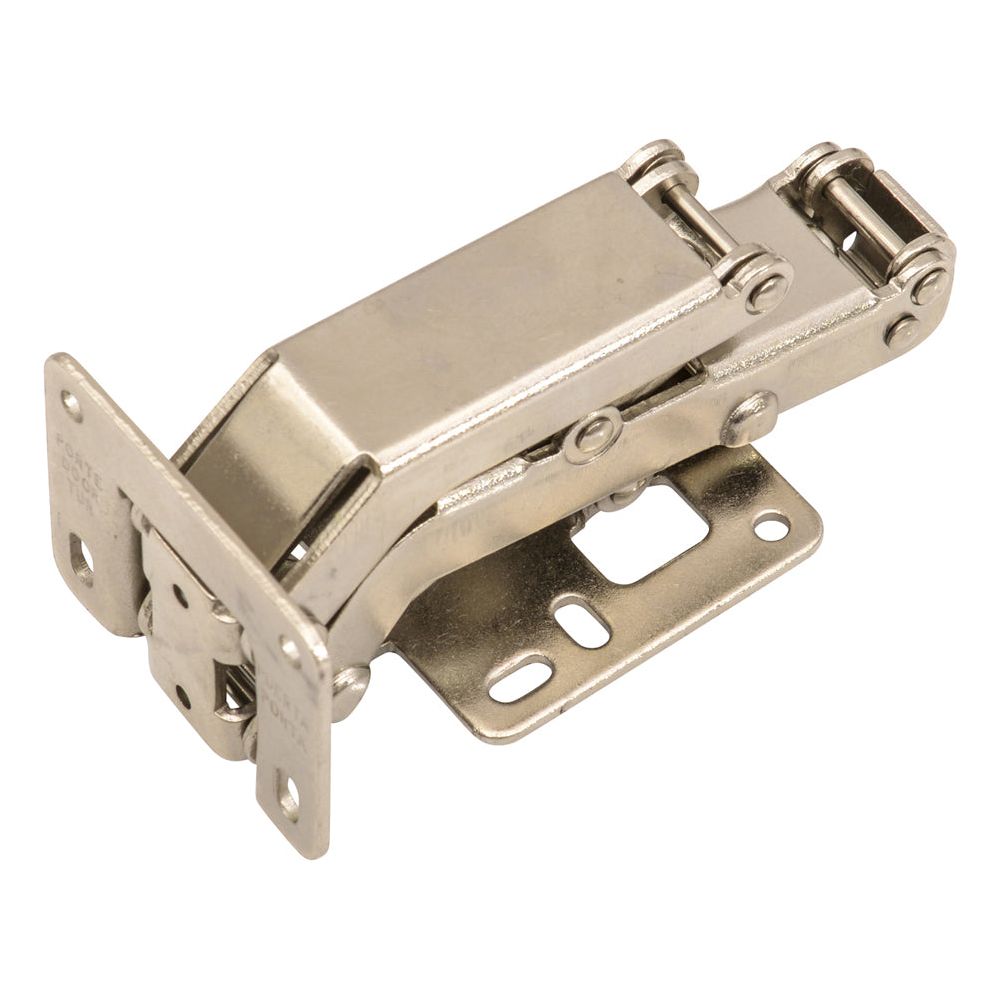

175 Degree Concealed No-Bore Hinge

$799 Each

Fasteners Not Included

Description

  • This heavy duty hinge allows smooth, silent, sag-free opening to 175 degrees
  • 175 degree cabinet hinge surface mounts to the inside of your frameless cabinet. Small screw holes are the only holes you need to drill.
  • Hinge works on 5 different applications: full overlay doors (maximum overlay is 3/4"), half-overlay doors, full inset doors, and mitered corner doors (click on document found under Downloads for illustrations) It also works on 3/8" inset doors with a 3/8" lip (no illustration available)
  • For normal use the hinge can be used on door thicknesses up to 1"
  • If used on "back-to-back" cabinets a maximum of 13/16" is recommended
  • Hardened steel construction (.082 gauge steel)
  • Cabinet must have at least a 4-1/8" depth. Hinge measures approximately 4" long by 1-5/8" by 2".

Weight rating varies based on the number of hinges used. Please refer to the following information when determining how many hinges will be required:

  • 2 hinges: 13 lbs
  • 3 hinges: 23 lbs
  • 4 hinges: 36 lbs
  • 5 hinges: 53 lbs

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: 286144

  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Flush Inset, Half Overlay, Full Overlay
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    One-Piece
  • Opening Angle
    175 Degrees
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Ten #6 Pan Head Screws

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet
Small Stainless Steel Pan Head Screws
View details

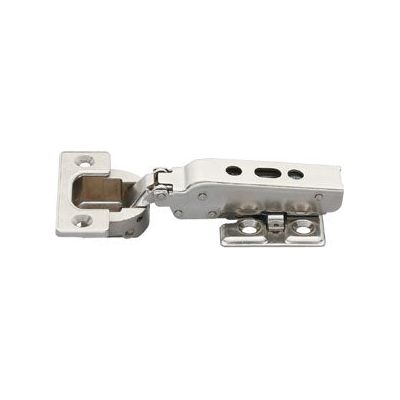

Heavy Duty European Concealed Hinge
View details
No-Bore Concealed Hinge, Back-to-Back, Nickel Plated
View details

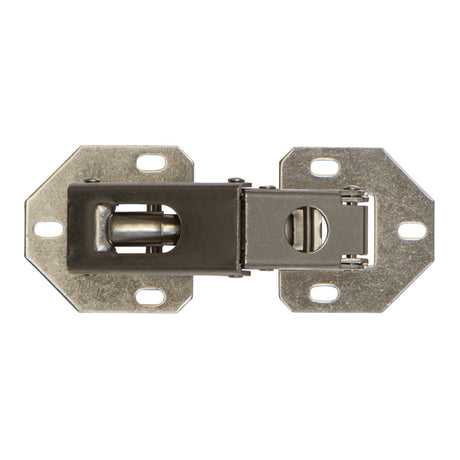

No-Bore Concealed Hinge
