Salice  |  SKU: 268712, 268713, 286255

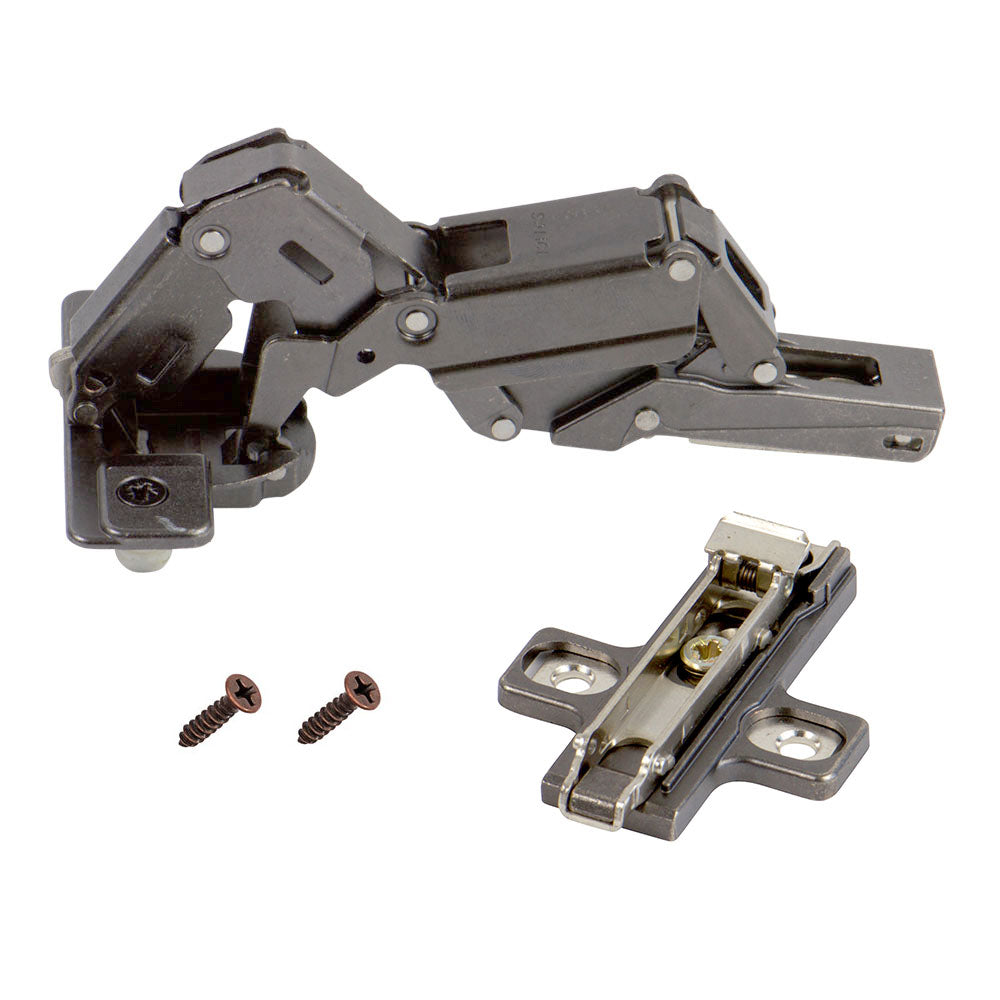

155 Degree Soft Close Hinge for Frameless Cabinets - Bundle

$1728 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Mounting Plate Height

Description

  • Titanium finish European style hinge with 155 degree opening angle.
  • For frameless overlay doors.
  • Titanium plating over steel base material. This plating provides a nice aesthetic while offering superior corrosion resistance.
  • Please note that these hinges do have some nickel parts that are visible. For example, the adjustment screw, rivet ends and some visible internal parts are nickel finish.

Zero Protrusion Feature

  • This hinge also features "zero protrusion" for cabinets with pull outs (drawers, pull out shelves, etc).
  • With this hinge installed, once the doors reaches a 90 degree opening angle, the inside corner of the door will be completely clear of the opening so that the door will not interfere with the pull out.
  • As with any zero protrusion hinge, the hinge must be located either above or below the pull out.

Installation

  • Hinge cup installs in a 35mm (1-3/8") diameter cup drilled in the back of the door
  • Cup depth needs to be a minimum of 11 mm deep (7/16").
  • This hinge and the proper mounting plate will accommodate any overlay from 3/8" to just under 7/8".
  • European hinges are a two part hinge, made up of the hinge and a mounting plate. Use the document found under Downloads for information on how to choose the correct mounting plate.
  • Each hinge comes with two plastic dowels and two dowel screws.
    • Dowels and dowel screws are recommended for doors that are made from pressed or manufactured wood
    • Dowel screws are regular wood screws that are a slightly shortened and blunt version of a wood screw.
    • For solid wood doors, wood screws (no dowels) are recommended.
    • For solid wood doors, discard the plastic dowels and either use the dowel screws or purchase regular bronze #6 flat head wood screws (2 each per hinge, our SKU 286255)

What's Included

  • 1 x Titanium Finish 155 Degree European Hinge
  • 1 x Frameless Mounting Plate (two options available).
  • 2 x Plastic Dowels and Dowel Screws (preattached to hinge)
  • 2 x #6 Screws for Mounting Plate

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10063

  • Manufacturer
    Salice
  • Model Number
    Hinge: C2RMA66
    2mm Plate: BAR3R26
    12mm Plate: BAR3RC6
  • Finish Name
    Titanium
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    155 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    45mm (1-3/4")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Two plastic dowels and dowel screws for the hinge cup and two #6 x 5/8" flat head wood screws for the mounting plate.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Related Products

A table comparing the facets of 5 products
Facet
155 Degree Soft Close Hinge for Face Frame Cabinets - Bundle
View details
Plastic Dowels & Dowel Screws for Blum Hinges
View details
Salice Soft-Close Add-On
View details

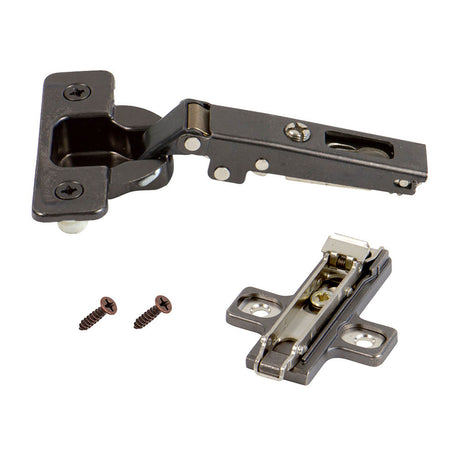

Straight Arm Hinge for Frameless Cabinets - Bundle
