SKU: 796630, 796631

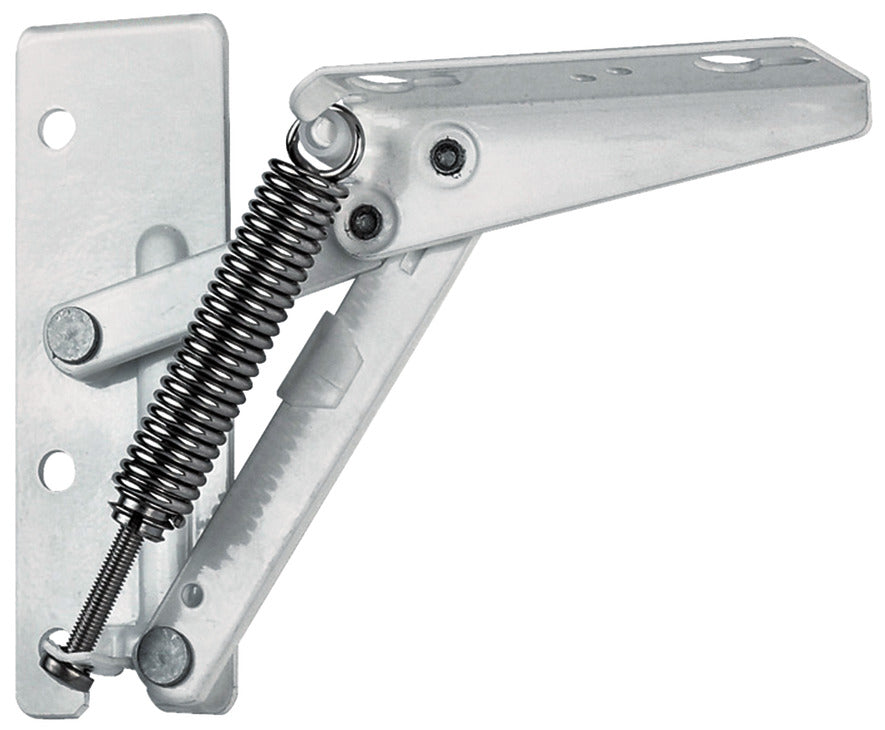

Swing Up Hinge

$4784 Per Pair

Fasteners Not Included

Description

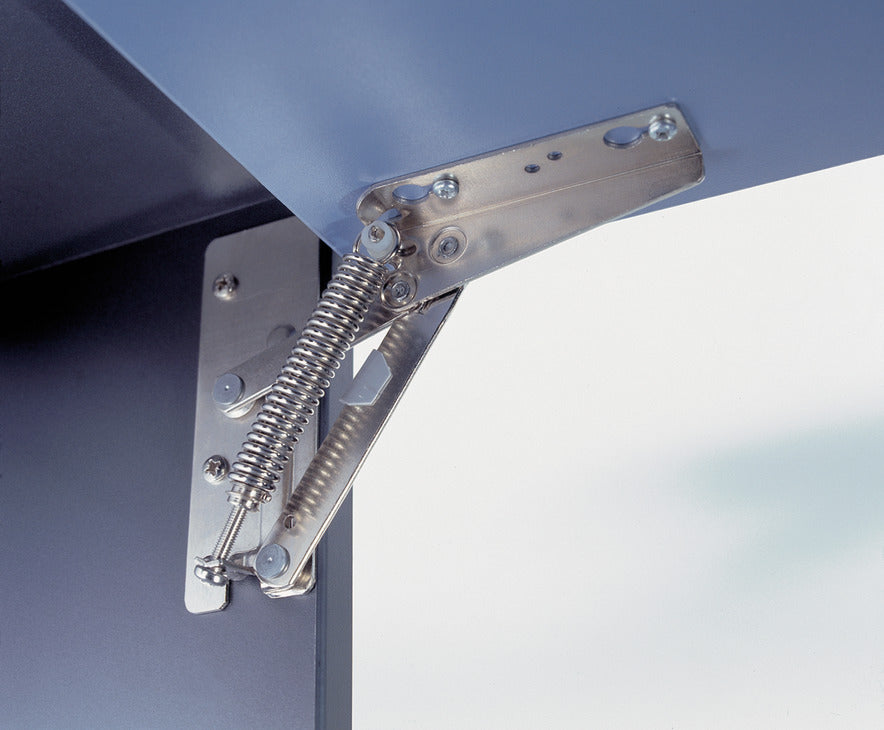

  • Swing up hinges for overlay cabinet doors. These hinges allow the door to swing up and hold in the open position.
  • For overlay doors on frameless cabinets (cabinets without a face frame).
  • Spring tension is adjustable to accommodate different size and weight doors.

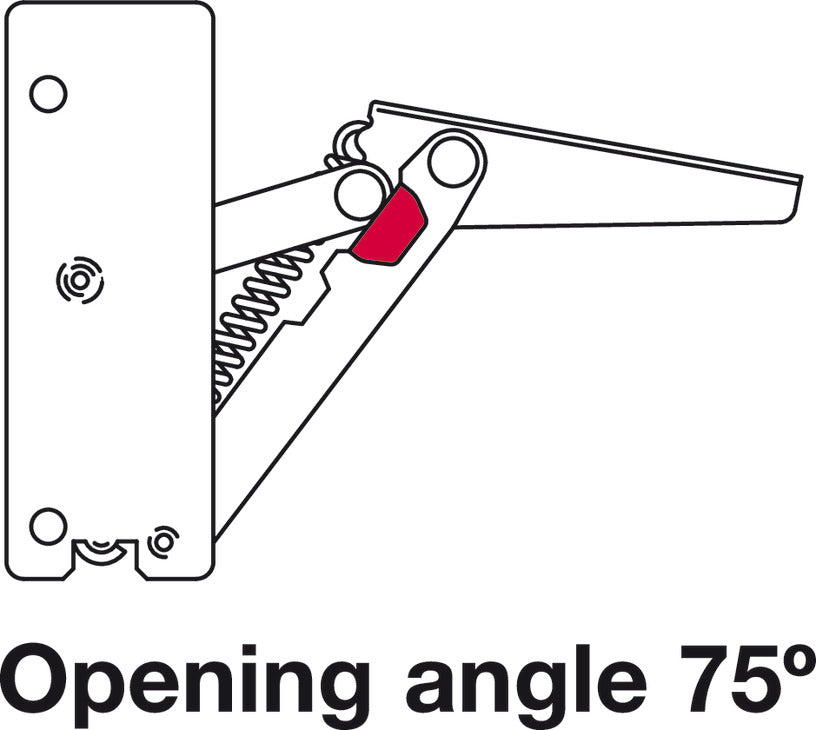

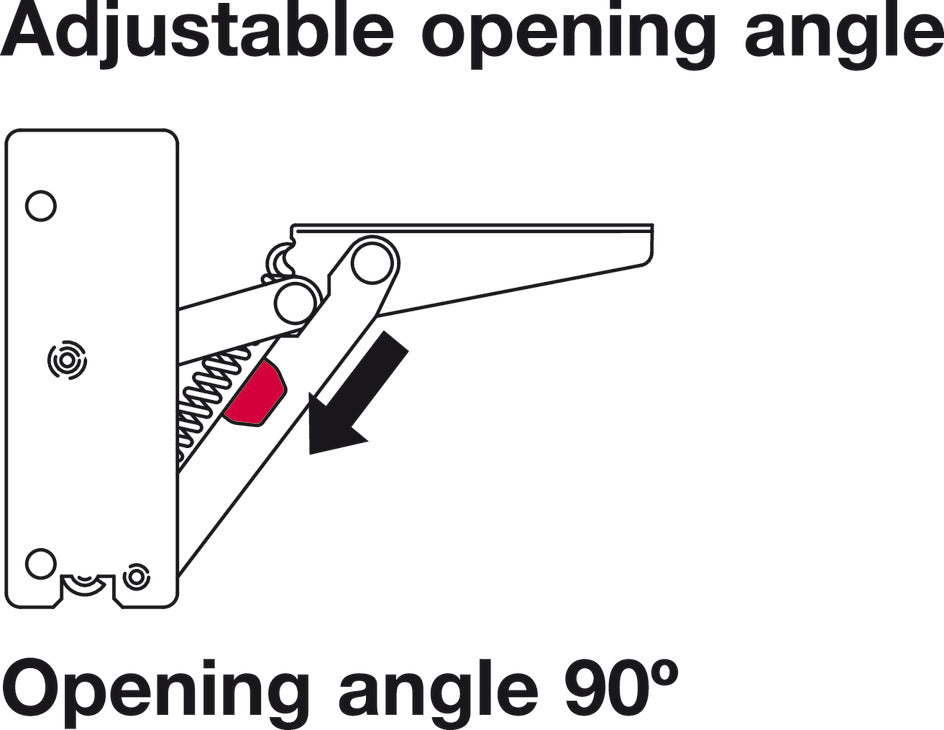

  • Final open position may be set at either 75 degrees or 90 degrees.

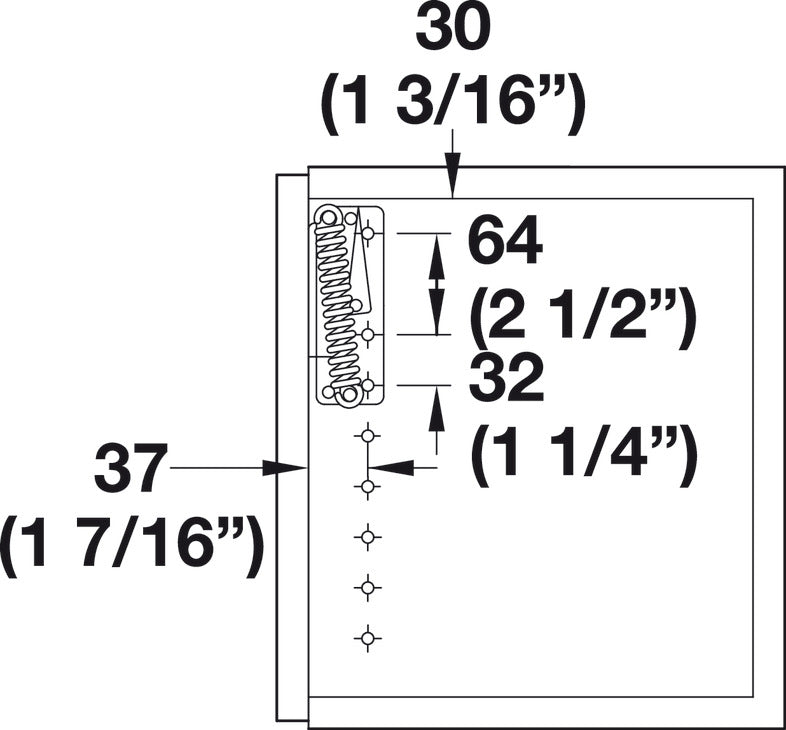

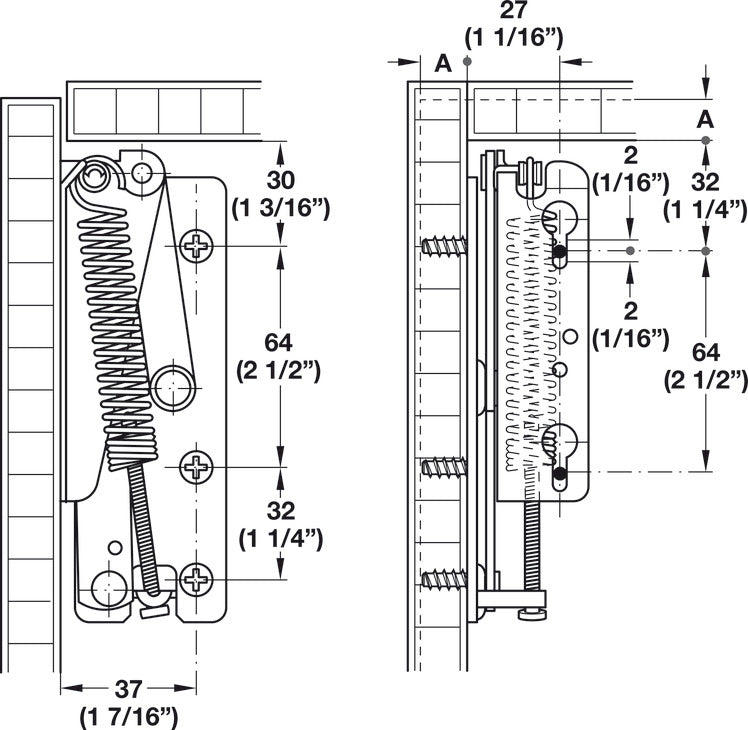

  • Elongated screw slots allow the door to be adjusted after installation.
  • A pair includes one left hand hinge and one right hand hinge.
  • Screws are not included. Uses ten #8 Pan Head screws per pair.
  • These support hinges are finished in White.

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10021

  • Finish Name
    White
  • Material
    Steel
  • Opening Angle
    90 Degrees
  • Load Capacity
    Not Weight Rated
  • Mounting Hardware Included
    No
  • Mounting Hardware Type
    Ten #8 Pan Head Screws per pair
