Blum Blumotion Compact Hinge, Face Mount
    Blum Blumotion Compact Hinge, Face Mount
    Purchase Blum Blumotion Compact Hinge, Face Mount
    Blum Blumotion Compact Hinge, Face Mount SKU #: B10079 Not Rated Yet

    Blum Blumotion Compact Hinge, Face Mount

    $4.11 - $6.90 Each
    1
    $-.--
    2
    $-.--
    Total: $0.00
    HardwareSource - Checkmark In Stock  & Ships by the next day!

    Overview

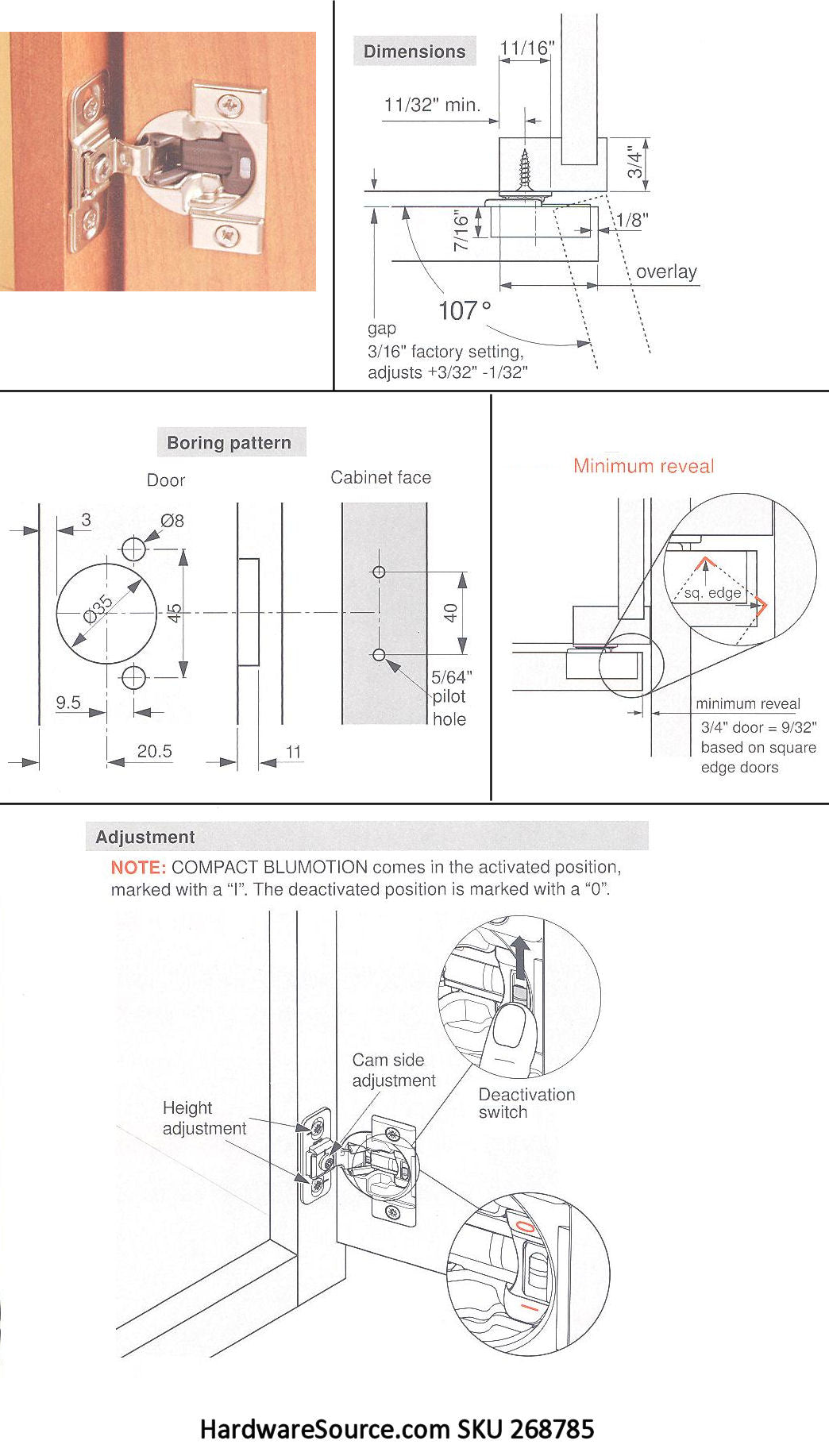

    Compact one piece European hinge with built-in Blumotion. This Blum Blumotion compact hinge is special in that the mounting plate side of the hinge mounts on the face of the cabinet face frame instead of the edge of the cabinet face frame. See the installation info below for a visual representation of how this face mount compact hinge looks when installed.

    Features

    • This face mount compact hinge works for doors which have an overlay of 1-3/8" or greater.
    • Blum's Blumotion soft close mechanism which allows the cabinet door to close softly without banging.
    • A shallow cup depth of 7/16" that can be useful for doors with a deep profile cut on the outside edge of the door.
    • A deactivation switch that can be used for small or light doors (flip the switch on one of the hinges to lessen the dampening action).
    • An overload safety feature that protects the soft close mechanism if the door is slammed.
    • 6-way adjustable after installation.

    Replacements

    • When changing hinges on your cabinet door, it is necessary to change out all of the hinges so that you do not have different types of hinges on the same door. Mixing non-Blumotion hinges on your door will cause the door to bind as they have different pivot points and articulation.
    • The cup depth required for this hinge is a minimum of 7/16".

    Notes

    • Hinge comes with dowels and screws for the door side of the hinge. Dowels may be discarded if not needed.
    • This bundle includes two #6 x 5/8" screws which are required to mount the hinge to the cabinet frame.

    Accessories

    • Spacer: For thin profile or beveled door. This is mounted underneath the cup side of the hinge.
    Blum
    38B358BF22
    Nickel
    Steel
    Full Overlay
    Face Mount (1-3/8" or greater)
    Yes
    Yes
    One-Piece
    107 Degrees
    35
    45mm (1-3/4")
    Yes
    Two #6 x 5/8" Wood Screws
    Prop 65 Warning
    You're reviewing Blum Blumotion Compact Hinge, Face Mount
    Rate Product
    No Reviews Yet

    1 Question asked about Blum Blumotion Compact Hinge, Face Mount

    Q John S. • 06/26/2018, 3:36:59 PM I have 18 year old KraftMade kitchen cabinets with "Blum" hinges. I have to replace a couple of the hinges and they appear to look exactly like the "Blum Compact 33" hinge. My hinges are not 'soft close', however, I'd prefer to replace all or most of the hinges with soft close ones. Would these hinges (Blum Blumotion Compact Hinge) work for my cabinets. The overlay dimension on my cabinets is 2-3/8" and the depth of the hinge cup is 7/16" or 1/2" total including the cup and the thickness of the face plate the cup is attached to. The cup diameter is 1-3/8". Thank you
    A 06/27/2018, 8:48:16 AM That overlay measurement seems a bit large, see below on how to measure your overlay, and then see your soft close replacement options below as well. https://www.hardwaresource.com/how-to-measure-your-overlay https://www.youtube.com/watch?v=hfqHvIO88Xg https://www.hardwaresource.com/blum-blumotion-compact-hinge-shallow-cup.html https://www.hardwaresource.com/blum-blumotion-compact-hinge-standard-cup.html
