Weld-On Strap Hinge, Uphill Hinge
Couldn't load pickup availability
Description
Description

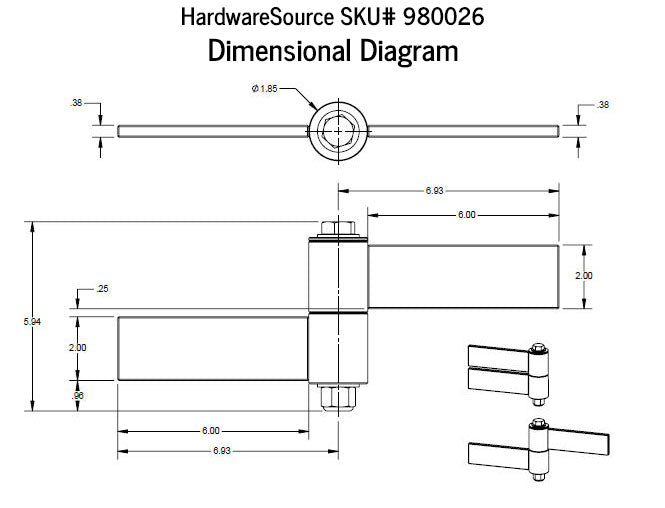

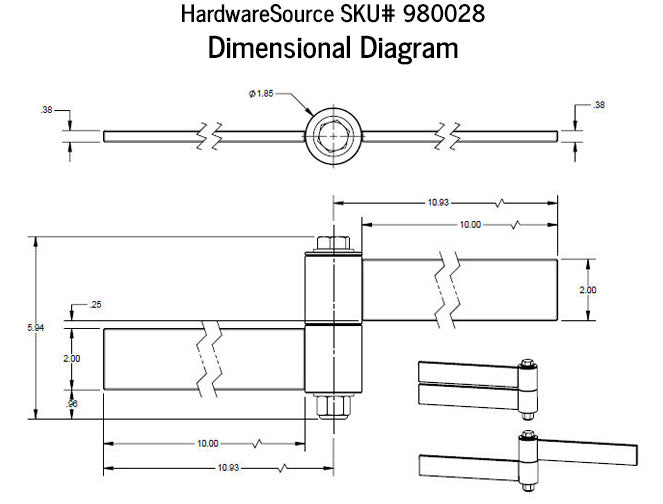

- A weld-on strap hinge that is available in a 6" and 10" strap length. See the dimensional diagrams under Downloads for more in-depth specifications.
- Made from weldable steel and zinc plated.
- Features four sealed roller bearings. No maintenance required.
- This hinge is sold by the each. You would normally order two or more hinges per gate.
- Can also be used as an uphill hinge for gates:
- By purchasing one of each size hinge (one 6" and one 10"), the hinges can be installed on a gate that opens uphill.
- The 6" hinge would be the top hinge.
- The 10" hinge would be the bottom hinge.
Read More
Read More
An uphill hinge, also known as an inclined plane hinge, is a type of hinge that is designed to allow a door or gate to swing uphill or downhill smoothly and easily. It works by incorporating an inclined plane into the hinge mechanism, which helps to reduce the friction between the hinge and the surface that the door or gate is mounted on.
Uphill hinges are commonly used in areas with uneven terrain, such as in hilly or mountainous regions, where a gate or door needs to be able to swing smoothly and easily over uneven ground. They are also used in areas where a gate or door needs to be able to swing over a curb or other obstacle without scraping or dragging on the ground.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10286
-
Manufacturer
-
Finish Name
-
MaterialSteel
-
Weight Rating
-
Heavy Duty Hinge TypeWeld-On
-
BearingsRoller Bearing
