Truth Heavy Duty Stainless Steel 4 Bar Hinge (301 Series)

Overview

• Designed for commercial projects requiring heavier window sections.
• Maximum weight of up to 200 lbs depending on the model. See the documents found under Downloads for further details.
• Truth 301 Series, 4 Bar Heavy Duty Window Hinges, for casement or awning windows and for projected vents with a lip on the outside edge.
• 4 Bar Hinges are designed to project the sash out as it pivots to avoid interference between a lipped vent and frame.
• These hinges are non-handed, they work on both left and right opening windows. Arm swings in both directions so the hinge can be used in either hand.
• Features set screw friction adjustment.
• These hinges also feature a "stop".

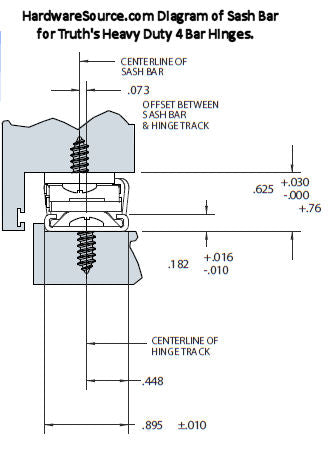

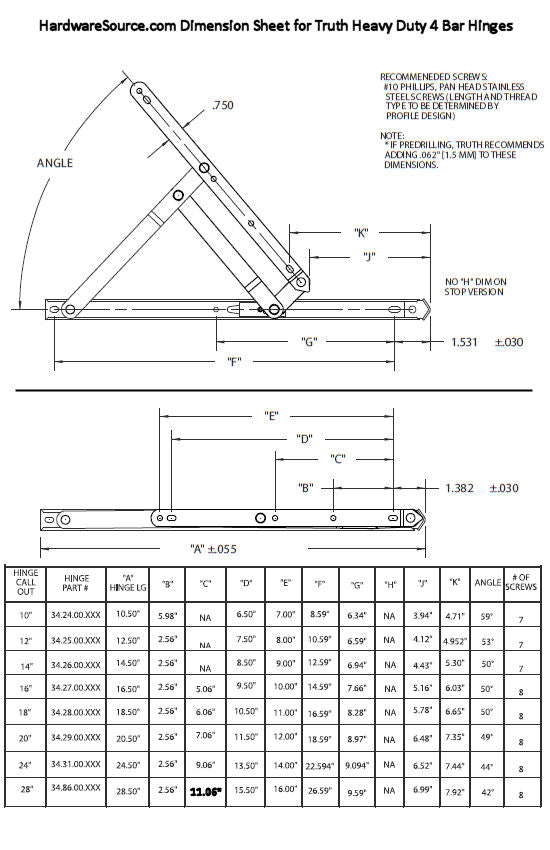

• Each hinge uses #10 Pan Head Stainless Steel Screws (see Dimensional Diagram for number of screws per hinge). Screws are not included, but are available for purchase separately.
• Note: Model sizes listed are nominal sizes. For more precise specifications see the documents found under Downloads.
