Overview
- Hinge is adjustable vertically and horizontally.
- Made of glass-fiber reinforced polymer (UV stabilized).
- Will not rust and never needs lubrication.
- Hinge measures 3-3/4" high by 4" wide
- Will work for gates with a gap of up to 2"
- Spring tension is incrementally adjustable with a screwdriver
- Self closes gates weighing up to 55 lb per pair of hinges.
- Weight rating is based on gate maximum size of 5' high by 3' wide.
- Hinge has side legs for added strength which wrap 1" around the fence post and edge of gate.
- This hinge is not handed.
If you've ever realized that you didn't close your gate at home or on your business property and had to return to lock it, you need self-closing hinges. With these, they'll close the gate at the speed you set, so you can have peace of mind that it's fully closed when you leave. The TruClose regular multi-adjustable spring hinge is an ideal option that has a few unique features.
This high-quality spring hinge can be used anywhere you need it. It's made of glass-fiber reinforced polymer (UV stabilized), so it will never rust or need lubrication. The TruClose regular multi-adjustable spring hinge self-closes gates weighing up to 55 lbs. per pair of hinges. Note that this weight rating is based on a gate maximum size of 5' x 3'. These will work for gates with gap up to 2". When installing, the TruClose regular multi-adjustable spring hinge can be adjusted vertically and horizontally, and the spring tension may be adjusted as well with a screwdriver. The gate should close fast enough to not let young children and pets out, but not so fast that it'll hit you. For extra support, these hinges have side legs that wrap an inch around the fence post and edge of the gate. Never again worry about open gates once you've left home, your business or other property. Stainless steel fasteners are included with your purchase, so separate installation hardware will not need to be purchased. Please note that these hinges are sold per pair, not individually.

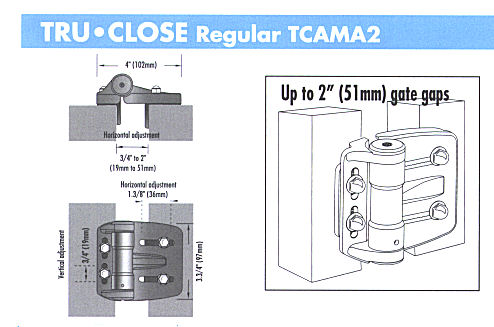

For specifics on these hinges, download the Dimensional Diagram found on this page. Once we've received your order, we'll have your spring hinges shipped out within the next business day. Use our LiveChat system on our website to speak directly with one of our online agents if you have quick questions about these hinges before ordering. If you have any other questions about the TruClose regular multi-adjustable spring hinge or would like to learn more about our large inventory of spring hinges, please feel free to contact us for additional information.
Manufacturer | D & D Technologies |
Model Number | TCAMA2 |
Finish Name | Black |
Material | Polymer |
Weight Rating | 55 lb per pair |
Spring Hinge Type |
Surface Mounted |
Action | Single Acting |
Mounting Hardware Included | Yes |
Mounting Hardware Type | Stainless steel fasteners |
California Residents | Prop 65 Warning |
