Square Corner Spring Hinge
Couldn't load pickup availability
Description
Description
- Made in the USA.
- These hinges are not handed. They will work on both right hand and left hand doors.

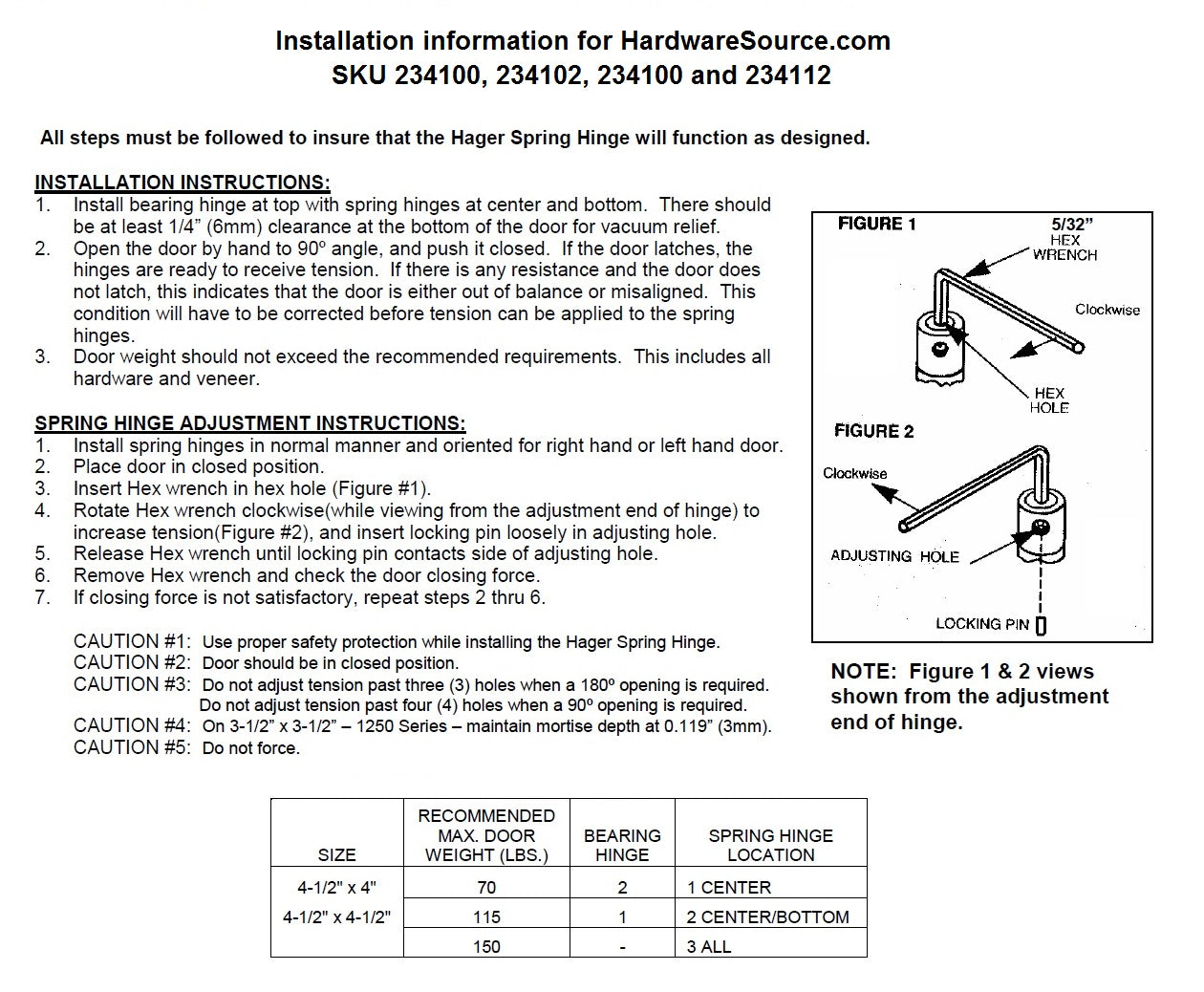

- Easily adjusted spring tension. See the document found under Downloads for instructions.
- Screw hole pattern conforms to ANSI specifications for template hinges.
- Pivot point aligns with non-spring hinges of the same size.
- Note: U.L. listed Grade 1 hinge and may be used on a fire door. A minimum of two hinges per door is required for a fire door.
Weight Rating:
- 3-1/2" x 3-1/2" size - 90 lb per three hinges
- 4" x 4" size - 110 lb per three hinges
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10180
-
MaterialSteel
-
Spring Hinge TypeButt
-
ActionSingle Acting
-
Grade
-
CornerSquare
-
Mounting Hardware Included
-
Mounting Hardware Type
