- The self closing feature on this semi-concealed cabinet hinge prevents cabinet doors from hanging open.

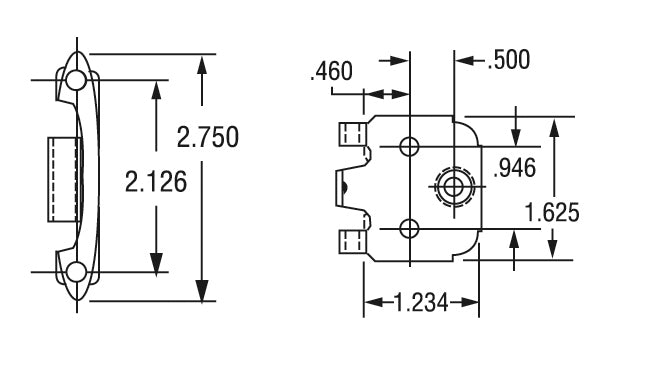

- The center to center screwhole dimension for the hinge wing that mounts on the face frame is 2-1/8"
|Finish Group||Black Tones,Brass Tones,Bronze Tones,Pewter Tones,Satin Nickel / Stainless Steel|
|Cabinet Door Type||Variable Overlay|
|Cabinet Type||Face Frame,Frameless|
|Mounting Hardware Included||Yes|
|Mounting Hardware Type||Matching wood screws|
ReviewsYou're reviewing Semi-Concealed Variable Overlay Hinge
4/5 Stars out of 1 Reviews
| September 18th, 2018
I wish I had looked at this website better. I overlooked that they come in pairs. Oh well, they are cheap so I will keep them and use the extras to update our other bathroom. Wife will be happy.
7 Questions asked about Semi-Concealed Variable Overlay Hinge
Q Abby Harrison • 12/13/2017, 11:00:10 AM How heavy of a door can this hold? My doors are solid wood... I don't see that listed on the specs.
A 12/13/2017, 1:19:54 PM Unfortunately, the manufacturer does not provide a weight rating for these hinges, so you will need to use your best judgment!
Q Jonathan G Long • 01/18/2018, 11:37:57 AM is the finish satin nickel?
A 01/18/2018, 4:03:42 PM Yes, satin nickel is one of the available finish options.
Q Christopher Meagher • 01/28/2018, 3:38:20 AM I am trying to replace some Kitchen cabinet hinges. I believe they are Amerock. The inside butt of the existing hinges are stamped with the number 7128. Is this the same hinge that I see listed at your sight under the SKU #C10032? If this is not the same product, could you please direct me to the correct one? Thank you, Chris
A 01/30/2018, 1:18:50 PM Hello Chris, this link will take you to Amerock 7128 hinges that we stock: https://www.hardwaresource.com/3-8-inset-cabinet-hinge.html
Q Gloria Craven • 02/07/2018, 2:23:07 PM May I order 2 hinges as a “trial”? I’m replacing some simple Liberty hinges, and I need black. Thank you.
A 02/08/2018, 12:07:05 PM Hi Gloria! We have a 30 day return policy. You are welcome to buy a pair to test and return them if they don't work out. We just ask that you cut the polybag open with scissors so we can easily reseal it if needed!
Q John Bond • 02/27/2018, 11:05:58 AM If I'm mounting two hinges, back to back, what is the minimum with required for the face frame?
A 02/27/2018, 12:45:44 PM Its not a measurement given by the manufacture, and not something that's measurable in house, but each plate is abou a 1/4" wide on the face frame, so I would say a 5/8"-3/4" face frame width is what might be needed.
