Overview
- Semi-concealed pivot hinge, only the tip shows through from the cabinet front.

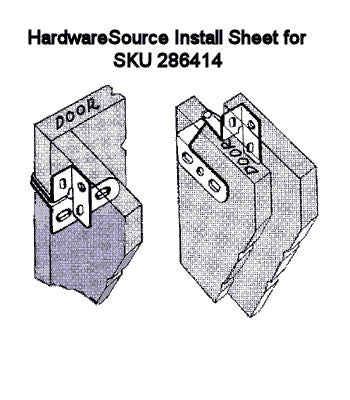

- To install cut an angled 7/32" slot through the edge of the door.
- For door thickness of 5/8" to 3/4"
- Door opens 270 degrees when installed on a 5/8" door.
- Door opens 255 degrees when installed on a 3/4" door.
- This hinge is sold by the pair. A pair includes a top hinge (as shown in photo) and a bottom hinge. These hinges are not handed, they will work on both a left hand and right hand door.
Finish Name | Dark Bronze |
Material | Steel |
Width | 2" |
Height | 1 - 3/4" |
Mounting Hardware Included | No |
Mounting Hardware Type | Twelve #6 Oval Head Wood Screws |
California Residents | Prop 65 Warning |
You're reviewing
Semi-Concealed Pivot Hinge
No Reviews Yet
1 Question asked about Semi-Concealed Pivot Hinge
Q
Toby • 02/14/2018, 8:55:50 PM
What is the overlay for this hinge? IE will it work for a full overlay on a 3/4" box with a 3/4" door?
A
02/15/2018, 4:49:15 PM
Yes, this is intended for a full overlay application.
