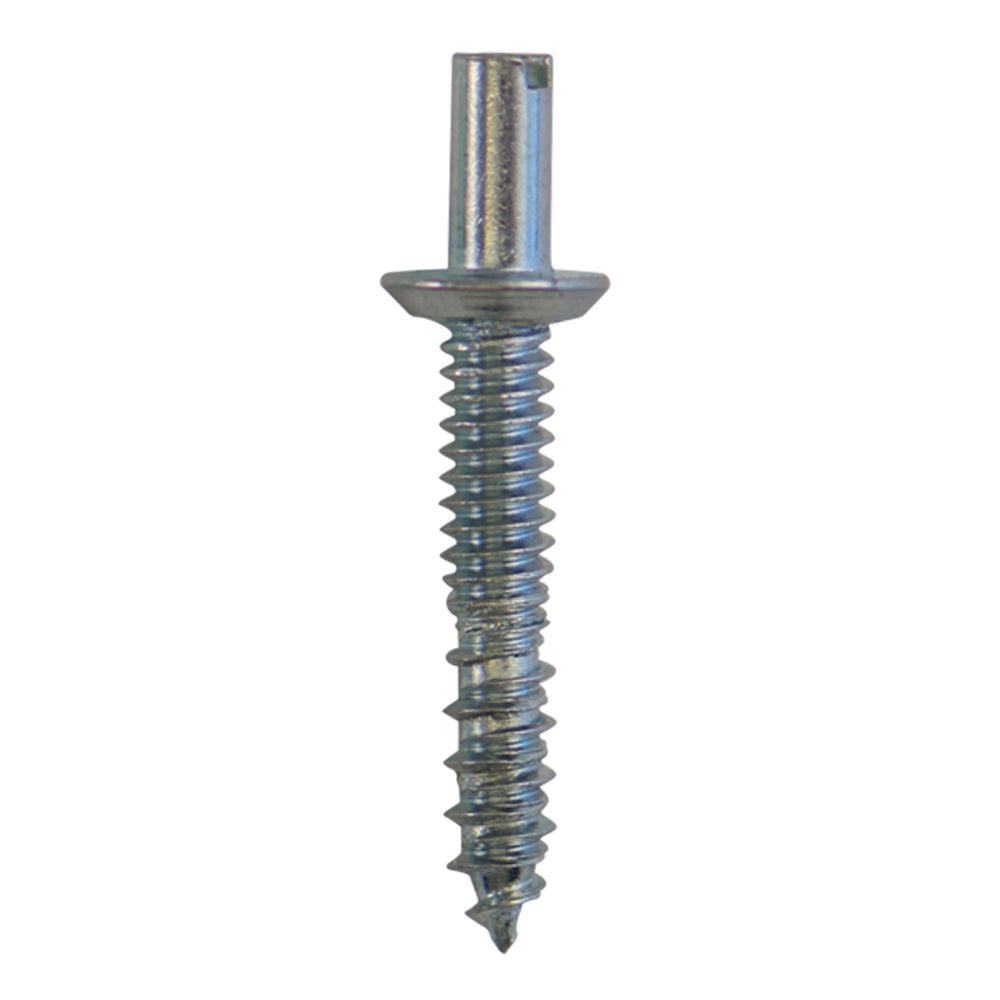

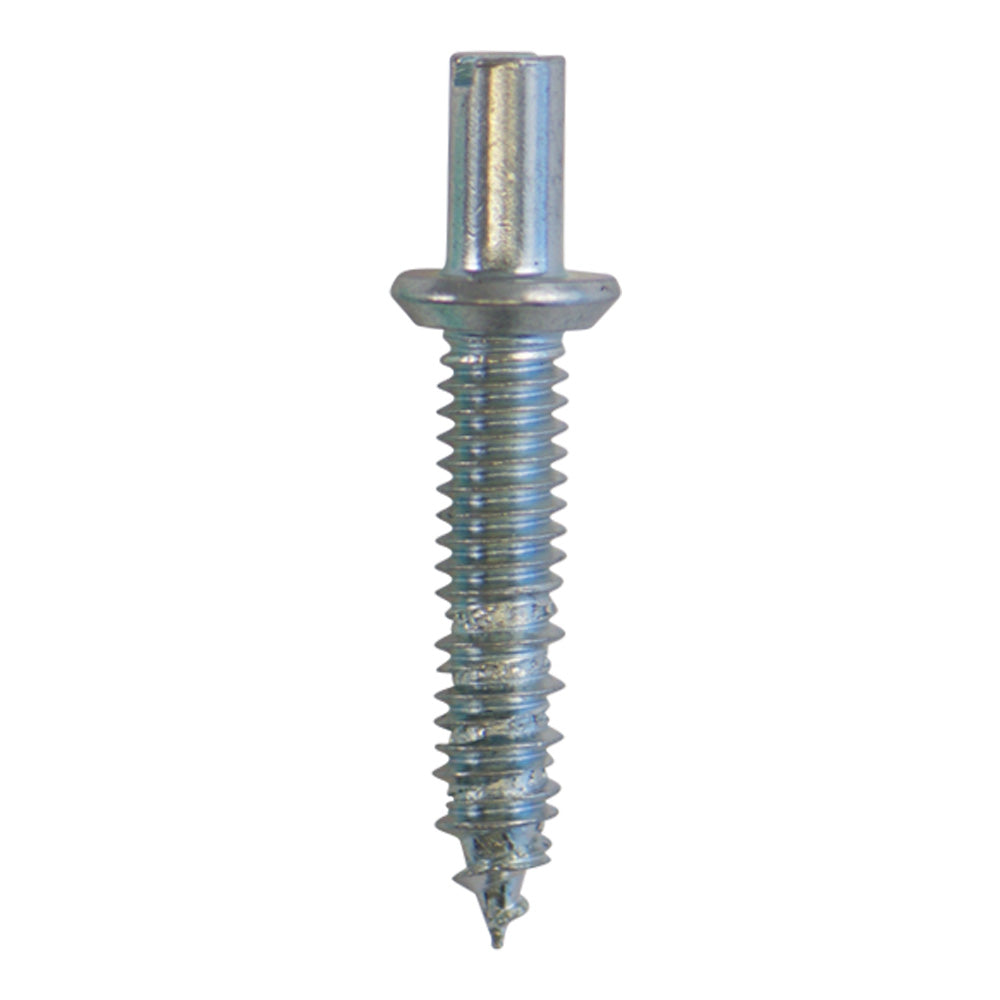

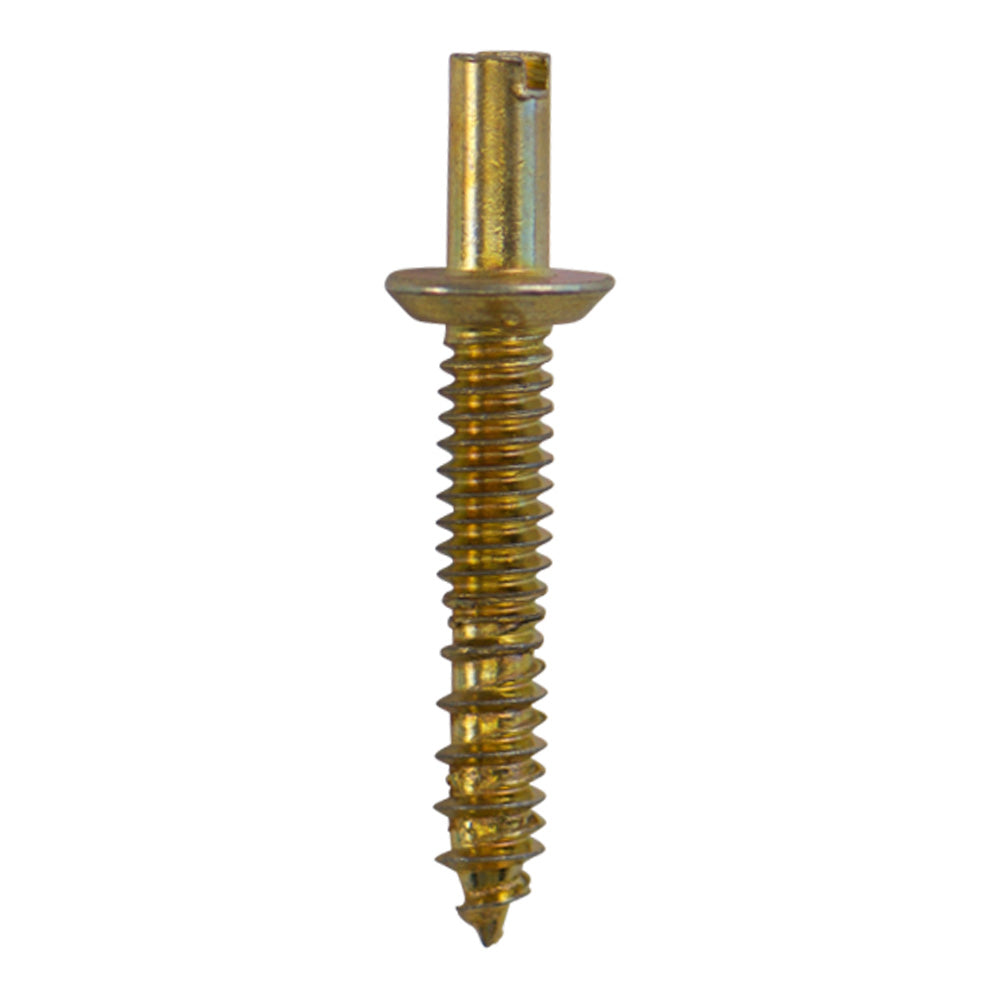

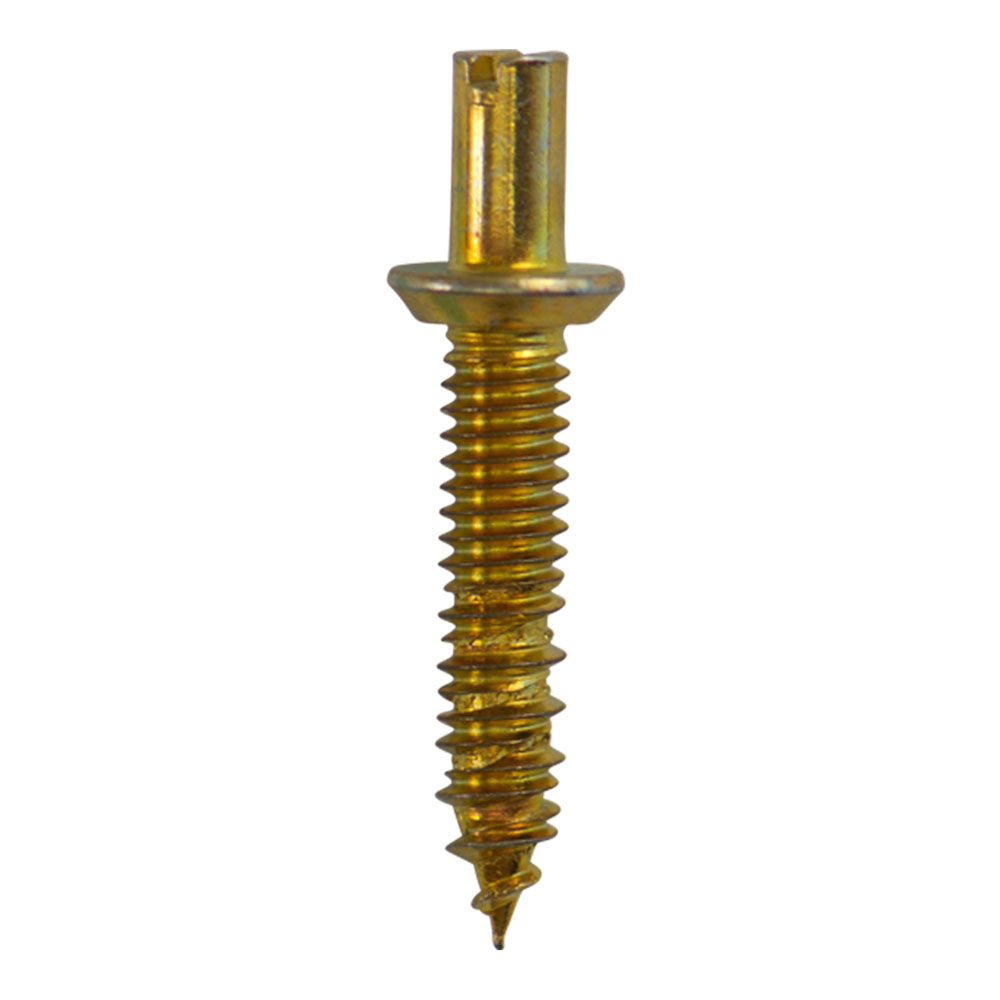

Security Stud for Door Hinges

Overview

Security studs are used for exterior doors that open outward. Doors that open outward have their hinge pins on the outside of the building.
If a potential intruder removes the hinge pins, the security stud protects the door from being removed by locking the leaves of the hinges together.

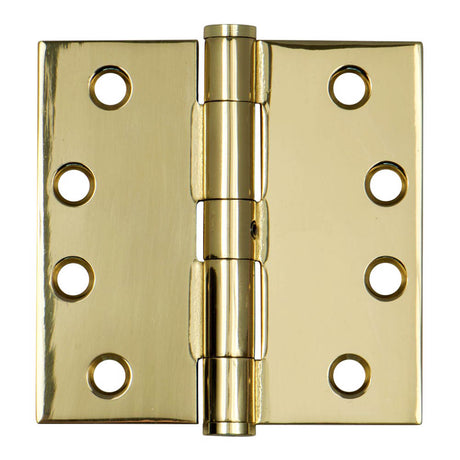

To install the security studs, remove two screws from your hinge. These two screws must be aligned back to back when the hinge (or door) is closed.
Replace one of the screws with a security stud and drill a receiving hole in the other empty screwhole
When the door closes the security stud will slide into the receiving hole locking the two hinge leaves in place
To determine your screw hole size it is best to take a countersunk screw with a known size and place it in the hinge screw hole.
Installed with a slotted screwdriver.
Use caution when installing not to break screwdriver slot tabs.
We advise using a slightly oversized pilot drill prior to installation.
Installing in hardwood jambs can be problematic, and it is a good idea to pre-form the pilot hole threads using a steel wood screw prior to installing the security stud.

#10 Size

#12 Size

Replaces #12 countersunk head screws measuring 3/8" across the head.
Threaded with a 12-24 machine screw thread which matches the thread that is used on metal door frames.
Will work on wood and metal doors and frames.
