Salice Clip On Frameless Mounting Plates

Overview

• This product is the companion for our 40mm Salice European hinges. These mounting plates snap on to connect to the hinge.

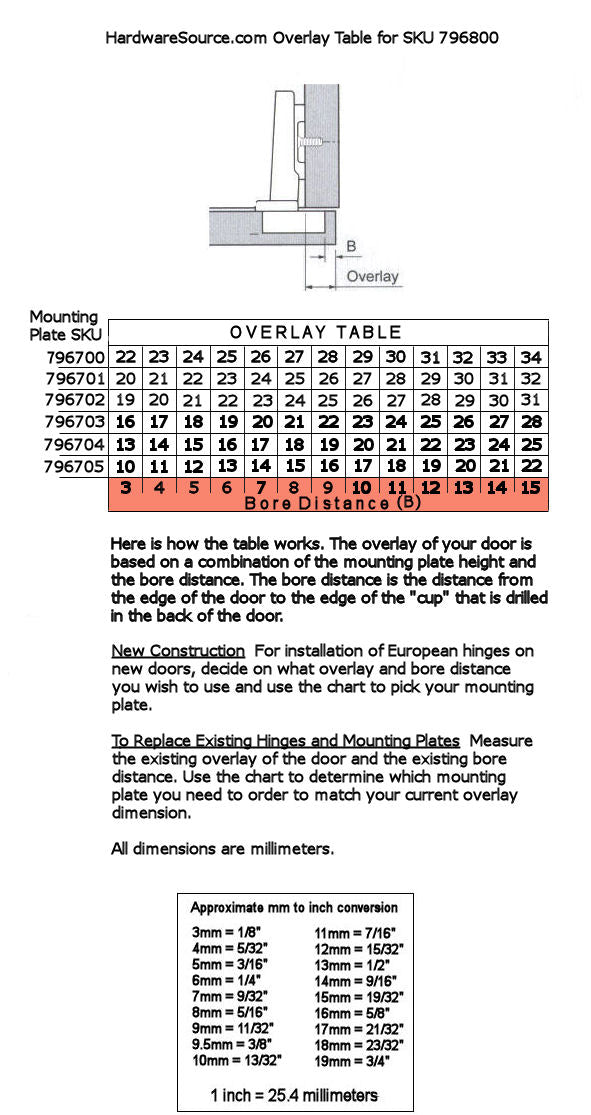

• Which mounting plate you need is dependent on the bore distance and overlay of your cabinet doors. Please reference the table linked below.
• If you are replacing existing plates match up your plate's actual plate height with the options listed below. See the link below for instructions on how to measure your plate's actual height.

Mounting Plate Actual Heights

• 0mm (SKU 796700): 5/16" Actual Plate Height
• 2mm (SKU 796701) 15/32" Actual Plate Height
• 3mm (SKU 796702): 7/16" Actual Plate Height
• 6mm (SKU 796703): 9/16" Actual Plate Height
• 9mm (SKU 796704): 21/32" Actual Plate Height
• 12mm (SKU 796705): 25/32" Actual Plate Height
