Roller Bearing Weld-On Hinge
Couldn't load pickup availability
Description
Description
- Heavy duty weld-on hinges made with dependable roller bearing design.
- Roller bearings are made using a hardened steel inner raceway and a hardened steel roller cage bearing held in place with a grade 5 zinc plated bolt.
- Fitted with a grease fitting for applying periodic lubrication.
- Features a very large weld surface for maximum weight bearing.
1000 Pound Model:
- Weight Rating: 1000 pounds per pair
- Height: 3 - 1/2"
- Width: 2 - 3/8"

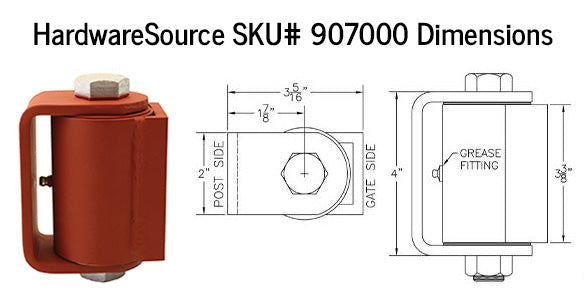

3000 Pound Model:
- Weight Rating: 3000 pounds per pair
- Height: 4"
- Width: 3 - 5/16"
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: C10273
-
Finish Name
-
MaterialSteel
-
Heavy Duty Hinge TypeWeld-On
-
BearingsRoller Bearing
