Overview

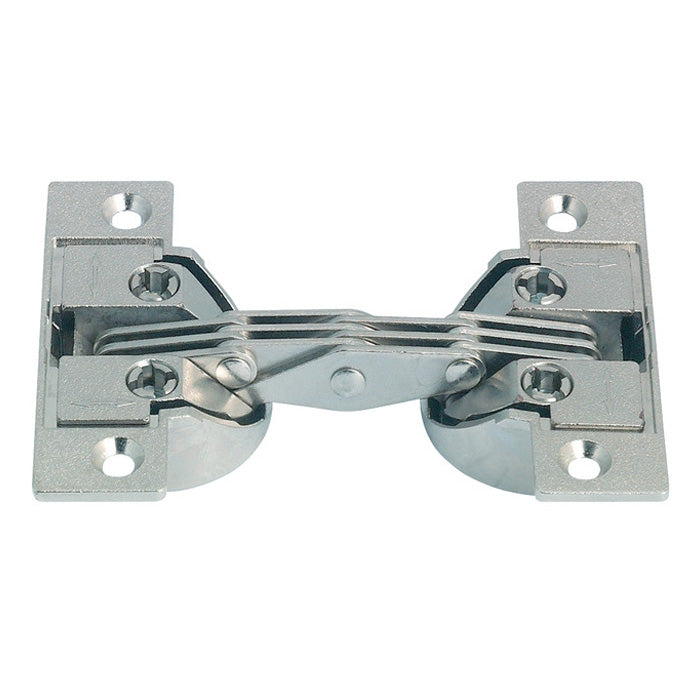

- European style hinge for Doors and Drop Flaps with a mitred edge (45 degree mitre).

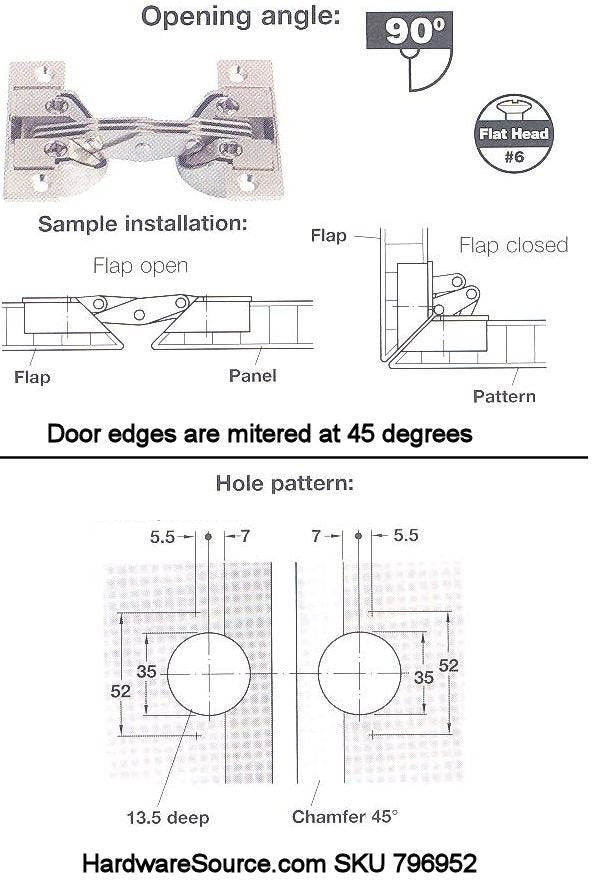

- Hinge fits into 35mm (1-3/8") cups drilled in the back of the doors. See the document found under Downloads for drilling diagram.
- Adjustable after installation:
- 3 mm in height
- 1.5 mm in depth
- 1.5 mm in width
- Construction:
- The hinge cup is made from zinc die-cast metal
- The hinge arms are made from steel
- The entire hinge is zinc chromate plated
- Made for the following Door, Drop Flap and Side Panel Thicknesses
- Door or Drop Flap thickness range of 16 to 22 mm (5/8" to 7/8")
- Side panel thickness range of 16 to 22 mm (5/8" to 7/8")
- This hinge is sold by the each. You will normally order 2 hinges for each door or flap.
- Click on links below for dimension, installation and adjustment information.
PLEASE NOTE: A Drop Flap normally needs a lid stay to help support the flap in the down position. This hinge is not meant to act as the only means of support for a Drop Flap.
Finish Name | Zinc |
Material | Steel |
Plate Connection Type | One-Piece |
Opening Angle | 90 Degrees |
Cup Diameter | 35 |
Screw Hole Spacing | 52mm (2-1/16") |
Mounting Hardware Included | No |
Mounting Hardware Type | Four #6 Flat Head Screws |
California Residents | Prop 65 Warning |
