- For "up opening" lids
- Use on hampers, piano benches, chest lids, etc.
- In the fully open position the hinge measues 6" long by 13/16" wide.
- Hinge will hold lid open at 90 degrees
- Designed for maximum lid overlay of 3/4"
- Spring action holds lid in closed position
- When lid is closed hinge is completely concealed.
|Opening Angle||90 Degrees|
|Mounting Hardware Included||No|
|Mounting Hardware Type||Four #6 Flat Head Screws|
|California Residents||Prop 65 Warning|
ReviewsYou're reviewing Lid Support Hinge, Up Opening
No Reviews Yet
5 Questions asked about Lid Support Hinge, Up Opening
Q Ed • 12/12/2017, 11:38:49 AM How does hinge attach to lid and chest?

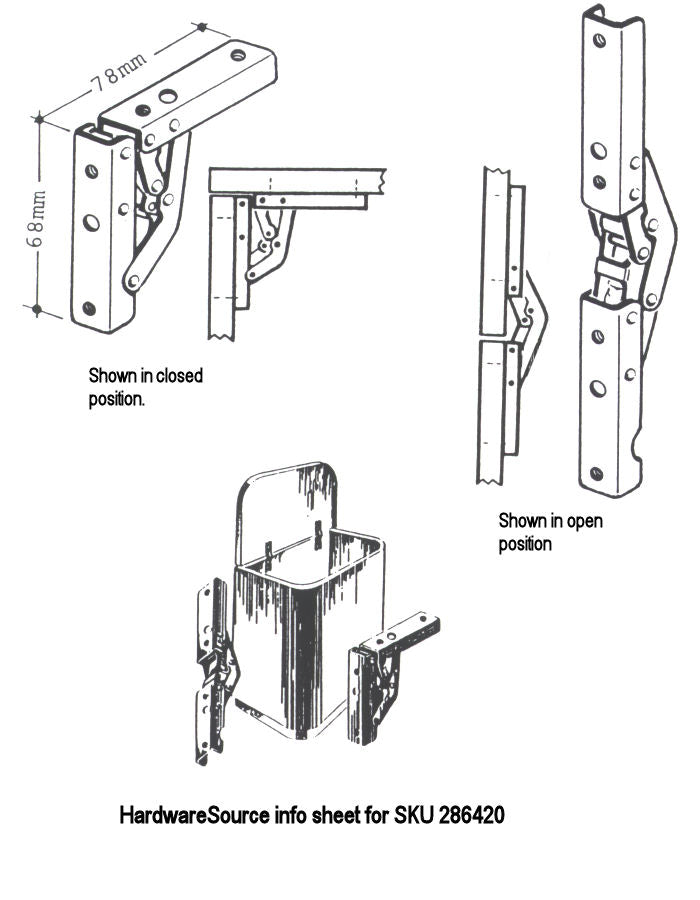

A 12/13/2017, 12:27:43 PM This hinge is installed with four #6 flat head screws. They are not included and will need to be purchased separately. For detailed installation information, click the link for "Informational Diagram" under the More Information section of this page.
Q Becky Bohling • 02/21/2018, 7:17:19 PM Will these support weight and hold a lid open at a 90 degree angle? If they do support weight, how much?
A 02/22/2018, 6:09:54 PM These supports will hold a lid up at 90 degrees. The manufacturer has not tested them for a weight rating, but they are generally for light duty applications.
Q Lisa K Mileski • 04/26/2018, 7:44:20 AM Will these hinges hold a lid open at any angle?
A 04/26/2018, 11:43:48 AM Hi Lisa! This product will just hold it in the open position (90 degrees).
Q scott carlton • 10/15/2018, 3:03:11 PM I want to have a kitchen cabinet door open upwards and stay open at 90 degrees so I don't have to hold it open. The door is 15" high by 30" wide. Will this hinge work for this application?
A 10/15/2018, 4:16:15 PM Hi Scott! This product doesn't have a weight rating, so we don't believe it will work for the application. You may want to review our section of Vertical Door Stays as these items should have way of calculating to see if it will work. Knowing the weight of the cabinet door will be beneficial as well. https://www.hardwaresource.com/cabinet/cabinet-accessories/door-stays-restraints.html
Q Russell Parnell • 10/22/2018, 3:29:14 PM How do you install the Lid Support Hinge, Up Opening SKU: 286420 ? I do a lot of handyman work but I'm not able to figure out how to attach the hinges. The bottom hole is easy to attach but the upper hole on the hinge is in the spring area, how is it possible to get a screw in that area?
A 10/23/2018, 4:23:39 PM Hi Russell! The support hinge in the closed position should allow you access to upper most screw hole.
