Inset Blind Corner Hinge for Tight Spaces
Couldn't load pickup availability
Description
Description
This is a blind corner hinge for inset doors. A typical inset door is hinged to a panel that is positioned at a 90 degree angle to the door. A blind corner cabinet has a door that is hinged to a panel that is in the same plane (inline) as the door. The door is "flush" with the cabinet panel. See the document found under Downloads to view a diagram of this type of installation. This hinge is unique in that it is much shorter than a typical Blind Corner Inset Door hinge. It is useful when you have a tight space situation.

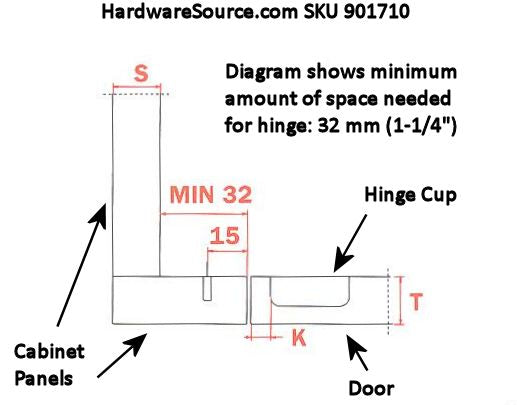

- Only needs a minimum of 32 mm (1-1/4") of panel space for the end of the hinge and the mounting plate.
- Hinge is adjustable after installation
- This product is sold as a set. You would typically order two to hang one door. A set includes one hinge, one mounting plate, and required fasteners.
Installation Information
- Hinge cup size is 35mm (1-3/8")
- Minimum hinge cup depth is 11 mm (7/16")
- Bore distance range is from 3 mm to 8 mm
- Hinge is adjustable after installation
- This product is sold as a set. You would typically order two to hang one door. A set includes one hinge, one mounting plate, and required fasteners.
Store Policies & Information
Store Policies & Information
Shipping & Delivery
Returns
Contact Us
We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.
Page Code: B10042
-
Manufacturer
-
Model Number
-
Finish Name
-
MaterialSteel
-
Cabinet Door TypeFlush Inset
-
Soft CloseNo
-
Self-ClosingYes
-
Plate Connection Type
-
Opening Angle94 Degrees
-
Cup Diameter
-
Mounting Hardware Included
-
Mounting Hardware Type
