Heavy Duty Weld & Bolt-On Hinge, 9" Model
    Heavy Duty Weld & Bolt-On Hinge, 9" Model
    Purchase Heavy Duty Weld & Bolt-On Hinge, 9" Model
    SKU #: 907006 Not Rated Yet

    Heavy Duty Weld And Bolt-On Hinge, 9" Model

    $107.92 Each Fasteners Not Included
      HardwareSource - Checkmark In Stock  & Ships by the next day!

      Overview

      • Bolt-on Gorilla Hinge.
      • Hinge features a grease fitting for ease of lubrication.
      • Made for installations where the post or frame is flush with the gate or door.

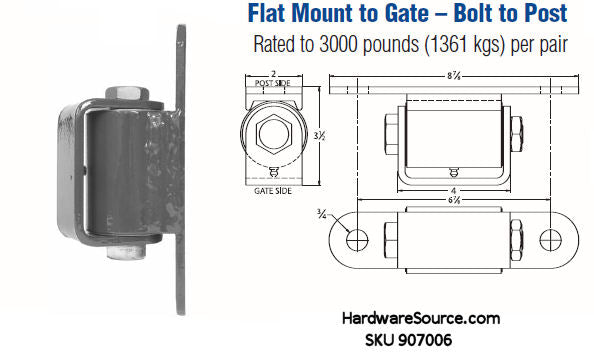

      • Hinge measures 7" tall by 3-1/4" wide. For more detailed dimensions, see dimensional diagram below.
      • Gorilla gate hinges are sold individually but weight rated by the pair. You will normally order 2 or more hinges per door or gate.
      To achieve listed weight ratings:
      • Grade 5 or better bolts must be used for attachment.
      • Note: we do not stock grade 5 or better bolts, they must be purchased from an alternate source.

      The heavy-duty weld and bolt-on hinge, 9" model is built for your heaviest of gates. With a weight rating of 3,000 lbs. per pair, the heavy-duty weld and bolt-on hinge, 9" model is more than capable of securing your gates onto fence posts. As a weld-on hinge, you must employ standard and acceptable welding practices; otherwise, use a professional welder for these hinges. If you don't want to weld, you may also choose to bolt the hinges instead.

      The heavy-duty weld and bolt-on hinge, 9" model is great for commercial and residential applications. From backyards and ranches to private docks and warehouses, these heavy-duty hinges will support your gates without fail. They're designed to bolt on to the post and, from there, weld on to the gate frame. There is a large weld surface to complete the installation should you choose to weld. The overall height of this hinge is 8 7/8". It's built with a grease fitting for future lubrication, so your hinge will continue to function smoothly. When you receive these hinges, they'll be prime coated in red so you can finish them in whichever color you'd like. We highly recommend using two Grade 5 or better ¾" bolts to install these hinges. Using this caliber and size of bolt will ensure the 3,000 lb. weight rating. Anything less may affect this. For more information on the heavy-duty weld and bolt-on hinge, 9" model, download the Dimensional Diagram and Hinge Construction Information PDF located on this page. Please note that these hinges are sold individually, not as a pair.

      These hinges are in stock and ready to ship within the next business day. Need clarification about these before ordering? Use the LiveChat system on our website to speak directly with one of our online agents. If you have any other questions about the heavy-duty weld and bolt-on hinge, 9" model or would like to learn more about our expansive selection of weld-on gate hinges, please feel free to contact us for additional information.

      Specs

      Primed for Painting (Red)
      Steel
      3000 lb per pair
      3000 lb per pair
      Bolt-On
      Weld-On
      Roller Bearing
      No
      Two 3/4" Diameter Bolts, Grade 5 or Better.
