Heavy Duty Lift-Off Strap Hinge
    Heavy Duty Lift-Off Strap Hinge
    Purchase Heavy Duty Lift-Off Strap Hinge
    SKU #: C10348 Not Rated Yet

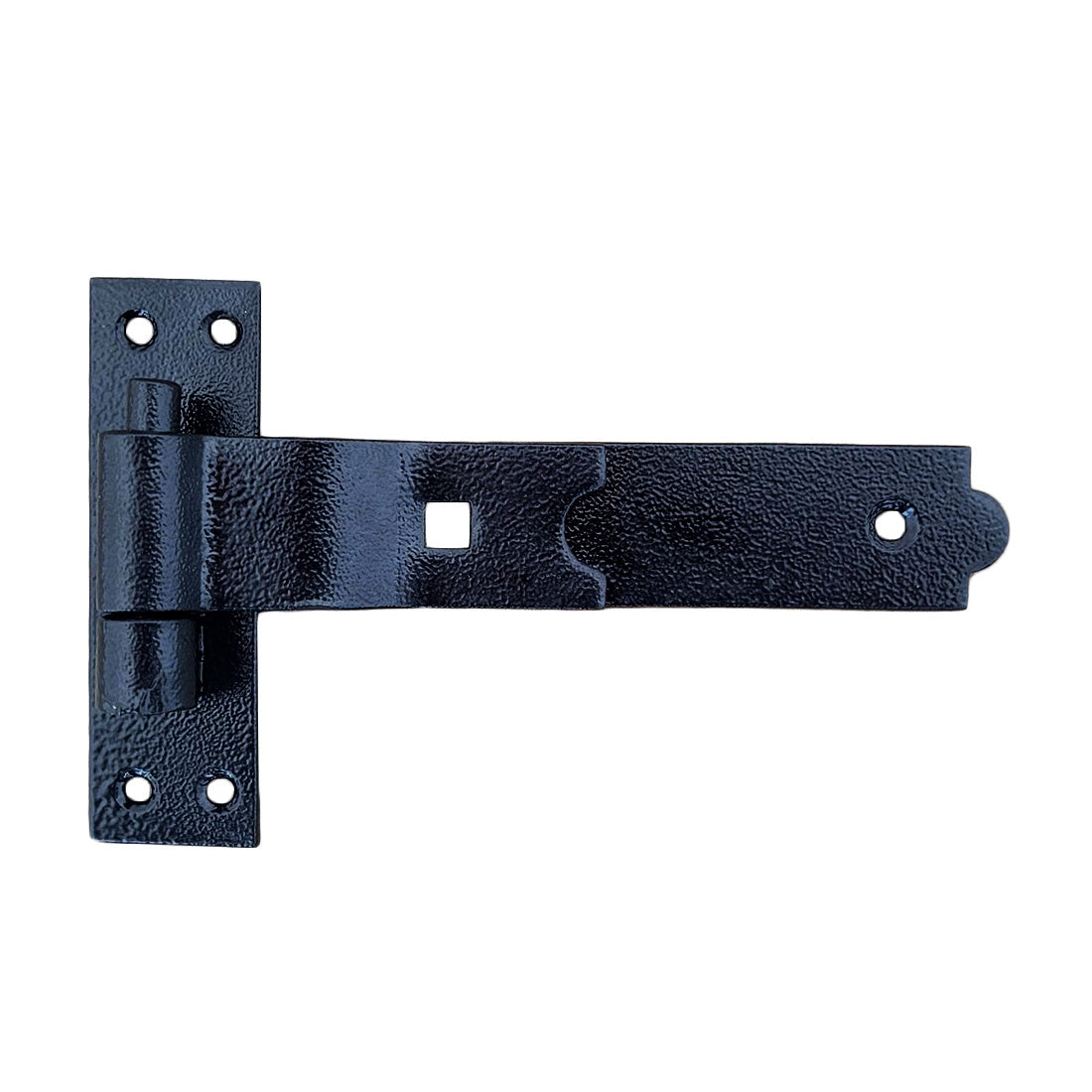

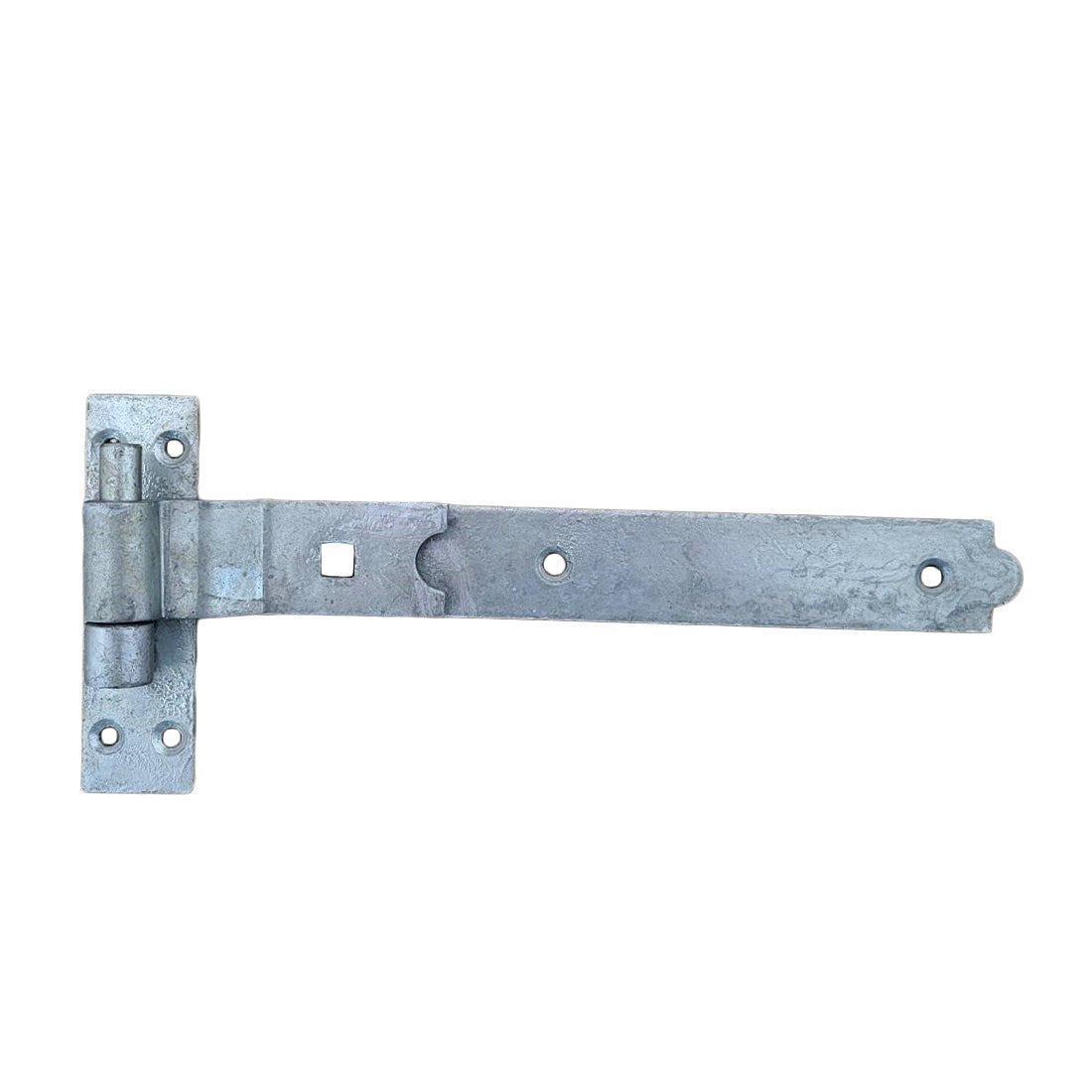

    Heavy Duty Lift Off Strap Hinge

    $31.55 Per Pair
      HardwareSource - Checkmark In Stock  & Ships by the next day!

      Overview

      8" Size

      • Strap: 8" L x 1-1/2" W
      • Vertical Mounting Plate: 5-1/4" L x 1-7/16" W
      • 35 lb per pair

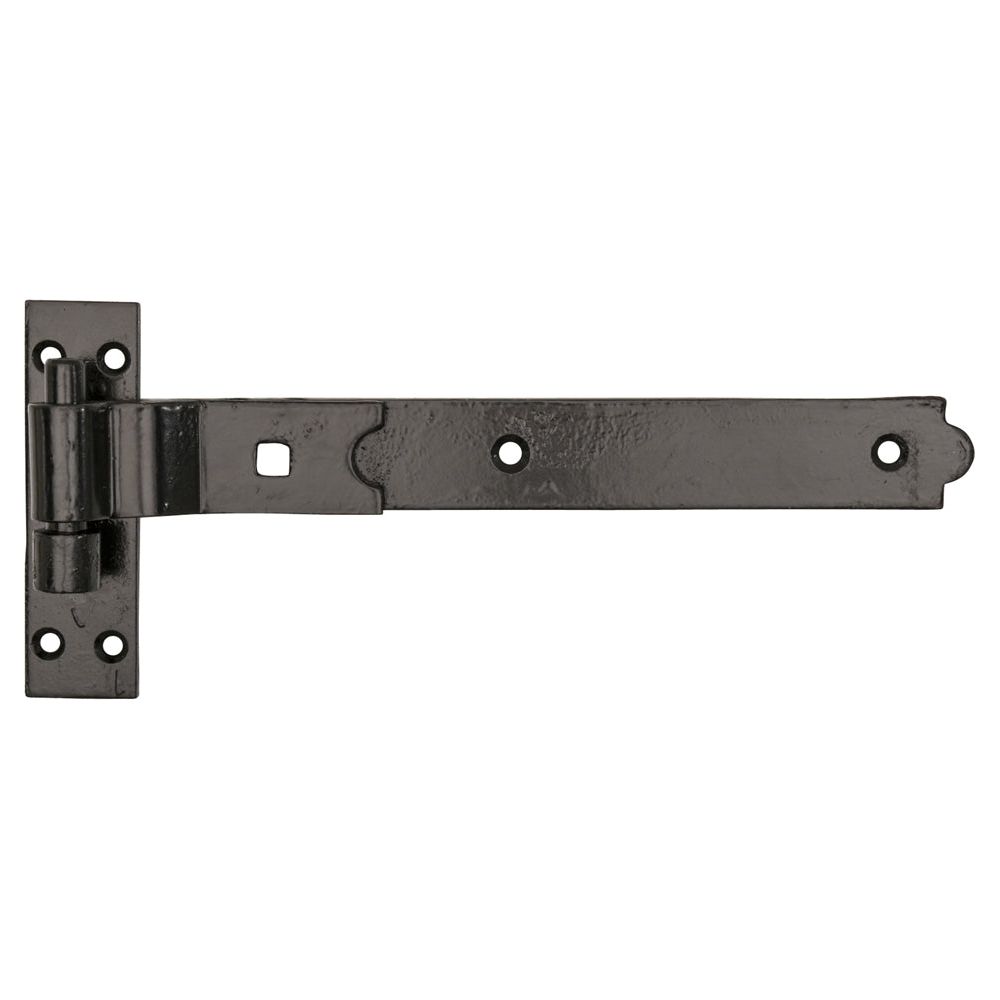

      12" Size

      • Strap: 12" L x 1-1/2" W
      • Vertical Mounting Plate: 5-3/8" L x 1-1/2" W
      • 60 lb per pair

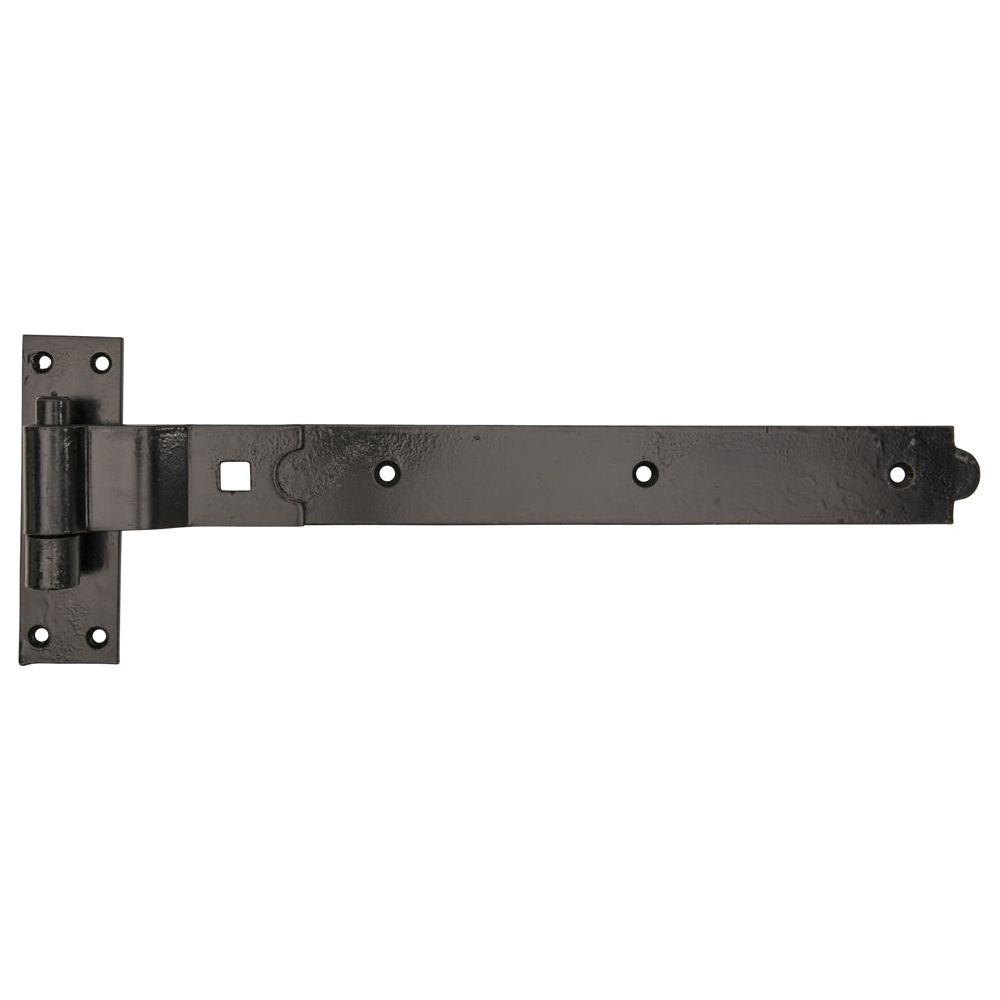

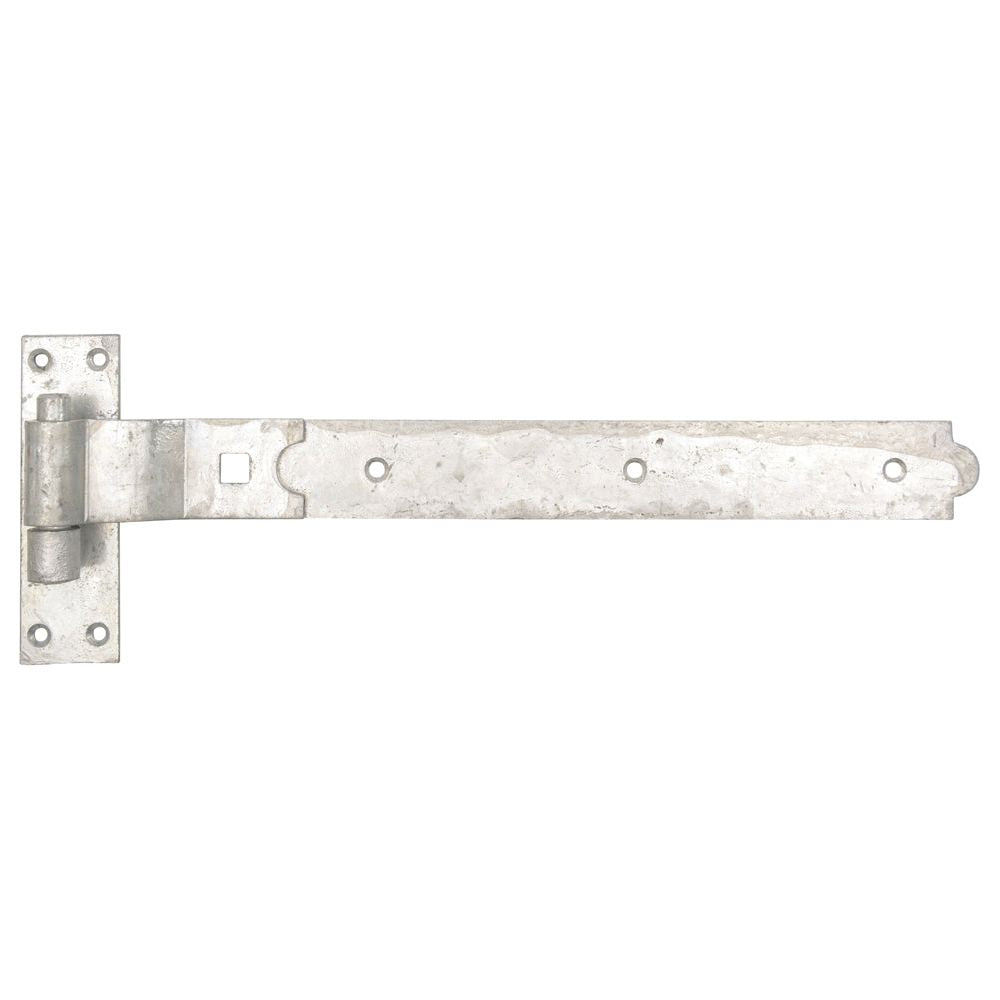

      18" Size

      • Strap: 18" L x 2" W
      • Vertical Mounting Plate: 6-1/2" L x 2" W
      • 90 lb per pair

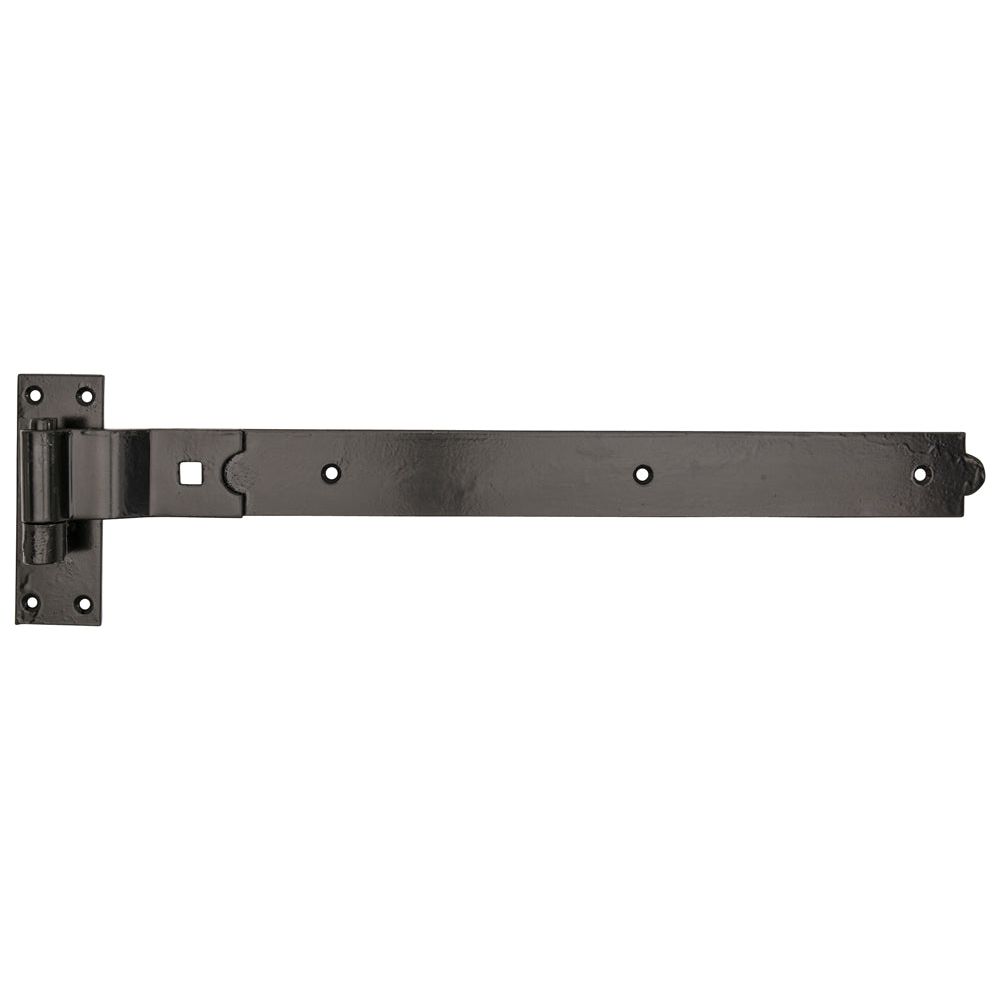

      24" Size

      • Strap: 24" L x 2-3/16" W
      • Vertical Mounting Plate: 6-1/2" L x 2-3/16" W
      • 150 lb per pair

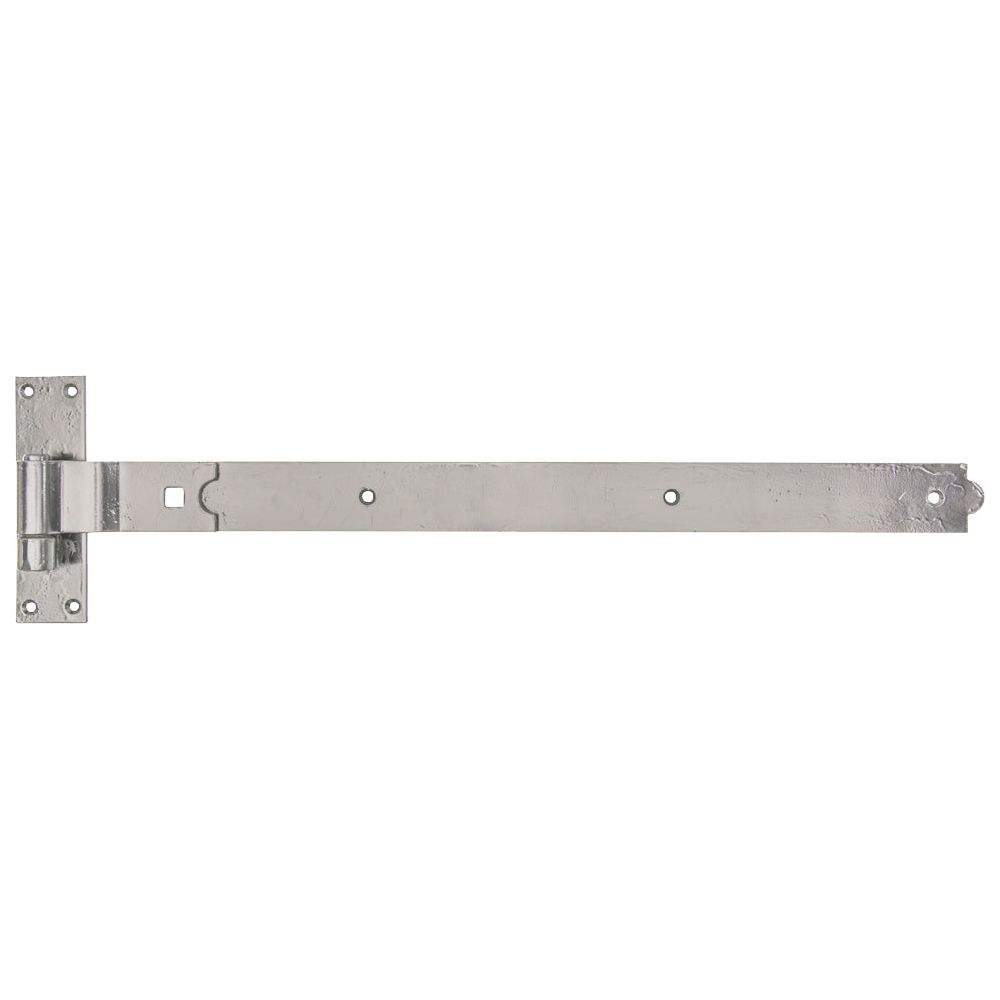

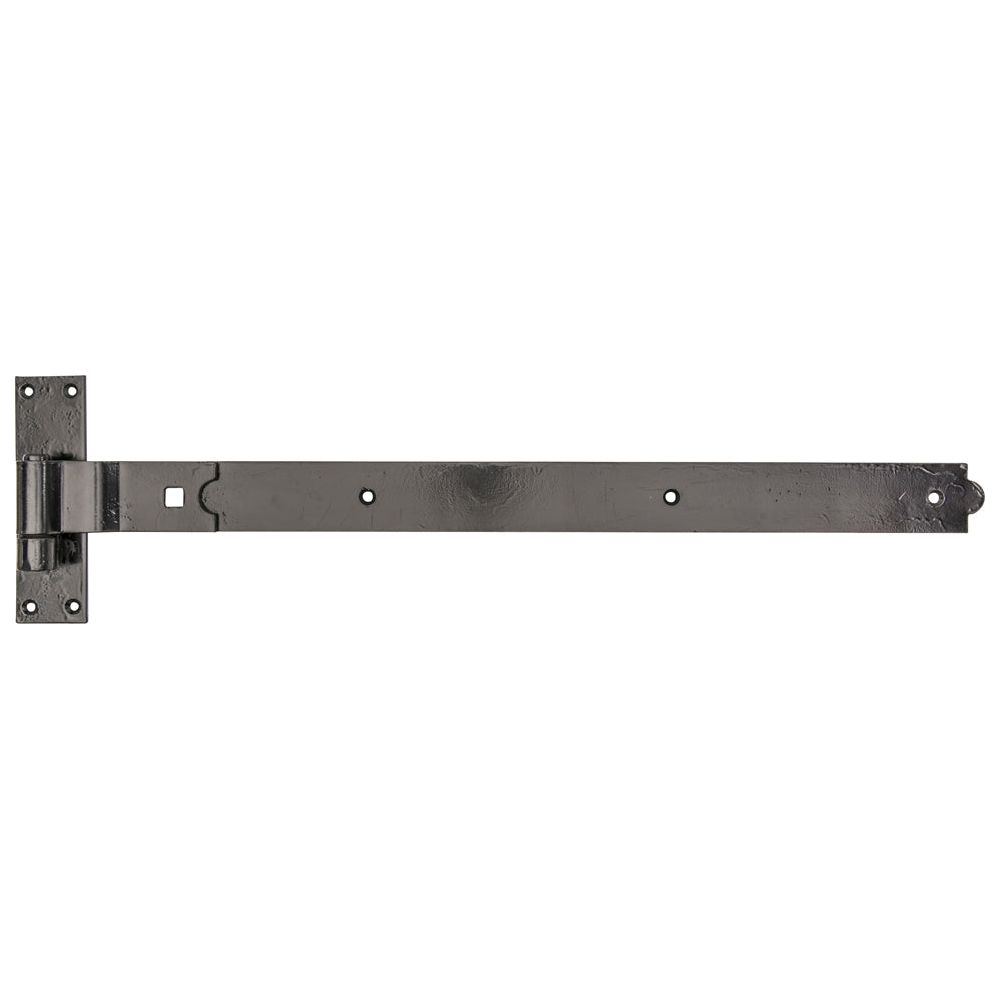

      30" Size

      • Strap: 30" L x 2-1/4" W
      • Vertical Mounting Plate: 8" L x 2-3/16" W
      • 200 lb per pair

      Do you have doors or gates that need to be removed temporarily to fit objects inside or move them out? It can be time-consuming to remove the pin to turn around and re-install it, again and again. Eliminate this issue with the heavy-duty lift-off strap hinge. This steel hinge allows users to easily lift doors and gates off the hinge without needing to remove the pin, saving you time and preventing unnecessary work.

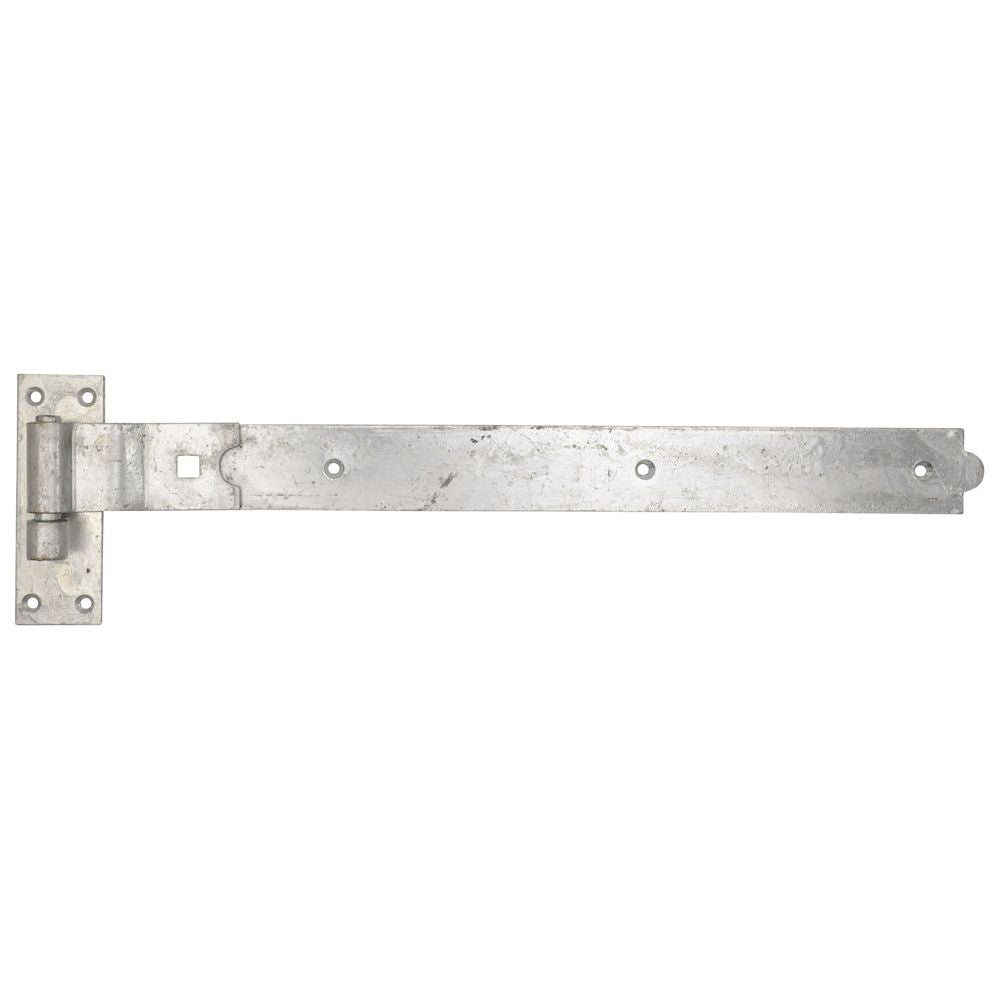

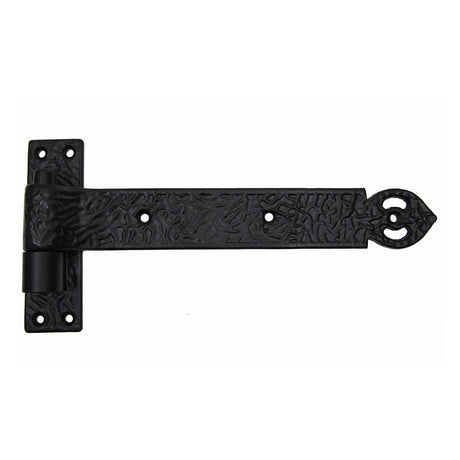

      Designed in a traditional British hardware style, the heavy-duty lift-off strap hinge can make daily tasks much easier. If you move large, bulky objects in and out of your space or property regularly, you don't want to worry about keeping doors or gates open. This hinge will allow you to quickly lift the door or gate up and off to the side so you can do what needs to get done. You can purchase this useful steel hinge in either matte black or heavy galvanized steel, both of which will look great. If your property lies along a coast or is situated in an area with harsh weather, choose the galvanized finish for extended longevity. These are offered of straps lengths ranging from 8" to 30", each with specific dimensions and weight ratings. Determine the dead weight of your door or gate to choose the right heavy-duty lift-off strap hinge for it. You'll receive the mounting hardware with your order, which includes matching wood screws and one galvanized 3/8" x 4" carriage bolt. These hinges are sold per pair.

      If you're unsure about choosing these hinges, use our LiveChat system on our website to ask one of our online agents. They'll help you determine what's best for your door or gate. Once you place your order, we'll have your strap hinges sent out within one business day. If you have any other questions about the heavy-duty lift-off strap hinge or would like to learn more about our large inventory of hinges, please feel free to contact us for additional information.

      Specs

      Steel
      3/16"
      Yes
      Matching wood screws and one galvanized 3/8" x 4" carriage bolt (for the square hole)
      Prop 65 Warning

      Reviews

      You're reviewing Heavy Duty Lift-Off Strap Hinge
      Rate Product
      No Reviews Yet

      Product Questions


      3 Questions asked about Heavy Duty Lift-Off Strap Hinge

      Q scott manders • 12/15/2017, 3:00:31 PM On the "Heavy Duty Lift Off Strap Hinge" it says the price is per "pair". Does that mean two of the sets shown or just one set of two items?
      A 12/16/2017, 3:33:08 PM You will receive two straps, two pintle plates, and mounting hardware.
      Q Ross Treiber • 03/07/2018, 3:17:17 PM Is the weight rating really per pair? Looking at other comparable hardware even on this same site, it seems drastically under-rated. For instance, the Upright Pintle and Strap Hinge has a 100lb rating in the 1/2" pintle size in a 6" length, and thats per hinge! Compare that to the 18" Heavy Duty Lift Off Strap above, which is 90lb but per pair!
      A 03/07/2018, 3:28:51 PM Hi Ross! The manufacturer has weight rated these per pair, correct. These are more on the decorative side compared to other hardware/manufacturers so specifications can vary of course.
      Q Deborah Durand • 03/15/2018, 9:31:51 AM I am looking for new hinges for my carriage garage doors. They weigh about 80 lbs each. Will these hinges work if I use three per door? Also I am wondering why the prices for some hinges are so different? Such as these $30 per pair vs SHU 215049 Heavy Duty Stainless Steel Hinge for $160 per pair?
      A 03/15/2018, 10:48:34 AM We do have several sizes of strap hinges within that section that should work for you no problem, depending on gate width of course. A good rule of thumb is to make sure the strap is at least a third the width of the gate. The difference in pricing between these straps and our SKU# 215049, is the base material. SKU# 215049 is made out of Solid Stainless Steel. Please call us with any other questions or help you may need, (858)322-6353.
