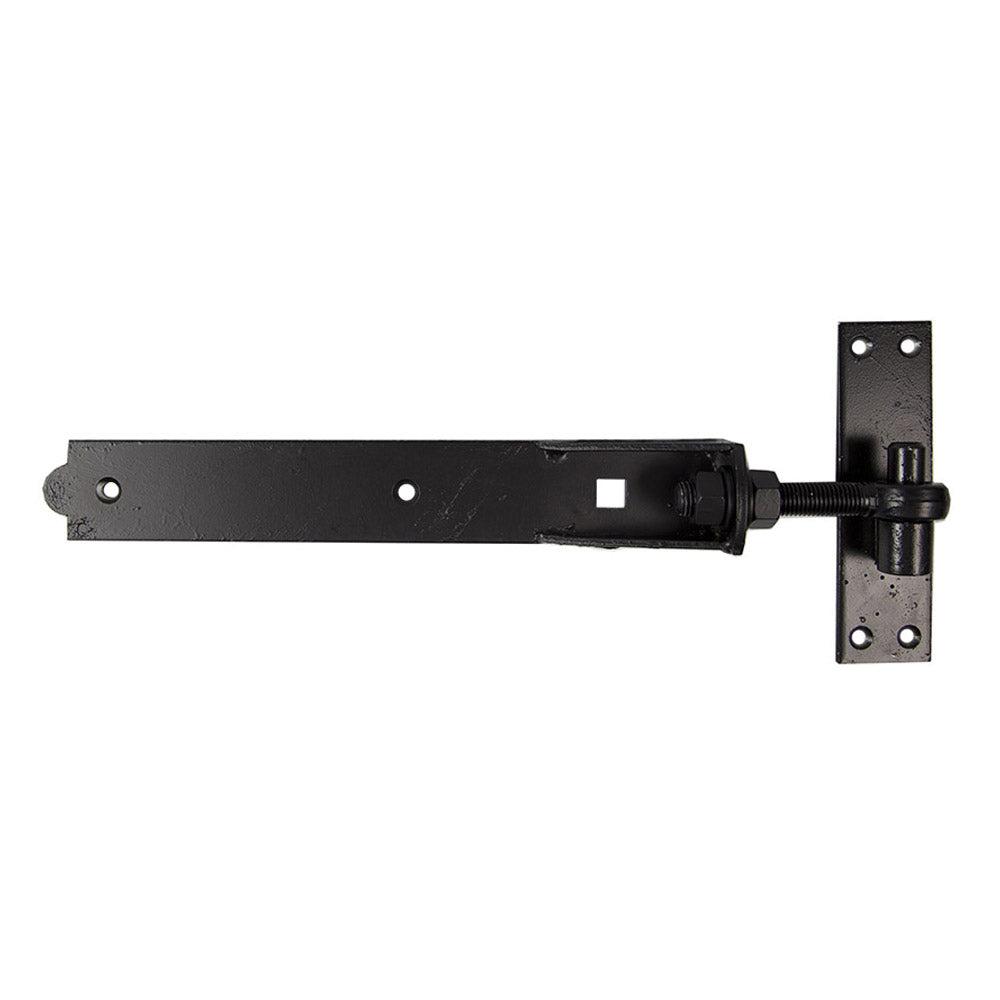

Heavy Duty Adjustable Band and Pintle Strap Hinge
    Heavy Duty Adjustable Band and Pintle Strap Hinge
    Click to zoom
    Purchase Heavy Duty Adjustable Band and Pintle Strap Hinge
    SKU #: C10370 Not Rated Yet

    Heavy Duty Adjustable Band and Pintle Strap Hinge

    $74.97 Per Pair
      HardwareSource - Checkmark In Stock  & Ships by the next day!
      In Stock

      Overview

      • Heavy duty pintle type strap hinge for gates and doors.
      • Door or gate can be lifted off after installation.
      • This hinge is adjustable horizontally. There is a 2" range of adjustment after installation
      • This hinge is sold by the pair. There are two hinges in a pair.

      Details

      • Pintle plate measurements:
        • Pintle plate is 6-1/2" tall by 2-1/4" wide by 3/16" thick.
        • Pintle is 3/4" diameter by 1-1/2" tall.
        • Projection is approximately 2-1/4".
      • Straps are made from 3/16" thick heavy duty steel and have welded diagonal plates at the post end for additional strength. Straps are 2-3/16" tall. Projection at post end is approximately 2".
      • Available in three strap lengths. Listed weight ratings are per pair of hinges.
        • 14 Inch Strap Model: Actual strap length is 13". 120 lb per pair weight rating
        • 18 Inch Strap Model: Actual strap length is 17". 160 lb per pair weight rating
        • 24 Inch Strap Model: Actual strap length is 22-1/2". 200 lb per pair weight rating

      Specs

      Black
      Steel
      120 lb per pair
      6 - 1/2"
      2 - 3/16"
      2 - 1/4"
      3/16"
      Yes
      Matching wood screws and one black carriage bolt per strap.
