    Grass Soft-Close Hinge for Back-to-Back Overlay Cabinets - Bundle SKU #: B10139 Not Rated Yet

    Grass Soft-Close Hinge for Back-to-Back Overlay Cabinets - Bundle

    $13.51 Per Bundle
    1
    $-.--
    1
    $-.--
    2
    $-.--
    Total: $0.00
    HardwareSource - Checkmark In Stock  & Ships by the next day!

    Overview

    • Half cranked soft-close hinge bundle for back-to-back frameless cabinets with overlay doors.
    • Can also be used for frameless cabinets with a smaller overlay than a typical straight arm type hinge.
    • With these hinges, the soft-close mechanism is integrated into the hinge cup providing a very low profile design.
    • This hinge can be used for new construction or to replace worn out or obsolete Grass half cranked hinges that open approximately 110 degrees.
    • This hinge is available with either 42mm (1-5/8") or 45mm (1-3/4") screw hole spacings for the hinge cup. Screw holes are measured from center to center (center of one hole to the center of the other hole). See the document found under Downloads to view a diagram showing the screw hole spacing.
    • Please see the "Reveal & Overlay Information" document below to verify if this bundle will work for your application and determine which mounting plate is needed.

    Features

    • A soft close feature which eliminates the slamming door sound that you get with typical self-closing European hinges.
      • This hinge has a lever one the back that adjusts the soft close speed by choosing one of three different closing pressure settings.
      • The soft close mechanism is fully integrated into the hinge arm rather than the hinge cup.
    • Four different adjustments
      • Soft close pressure
      • Depth adjustment (+3mm and -2mm)
      • Side adjustment / Overlay (+2mm and -2mm)
      • Height adjustment (+2mm and -2mm)
      • See the document found under Downloads for information on how to adjust

    Details

    • Hinge cup size is 35mm (1-3/8"). Cup depth is 12.6mm (1/2").
    • Door opening angle is 110 degrees
    • Works for bore distances from 3mm (1/8") to 7mm (9/32")
    • Works for overlay dimensions from 3.5mm (~1/8") to 14.5mm (~9/16")
    • Works for door thicknesses from 16mm (5/8") to 24mm (15/16")

    What's Included

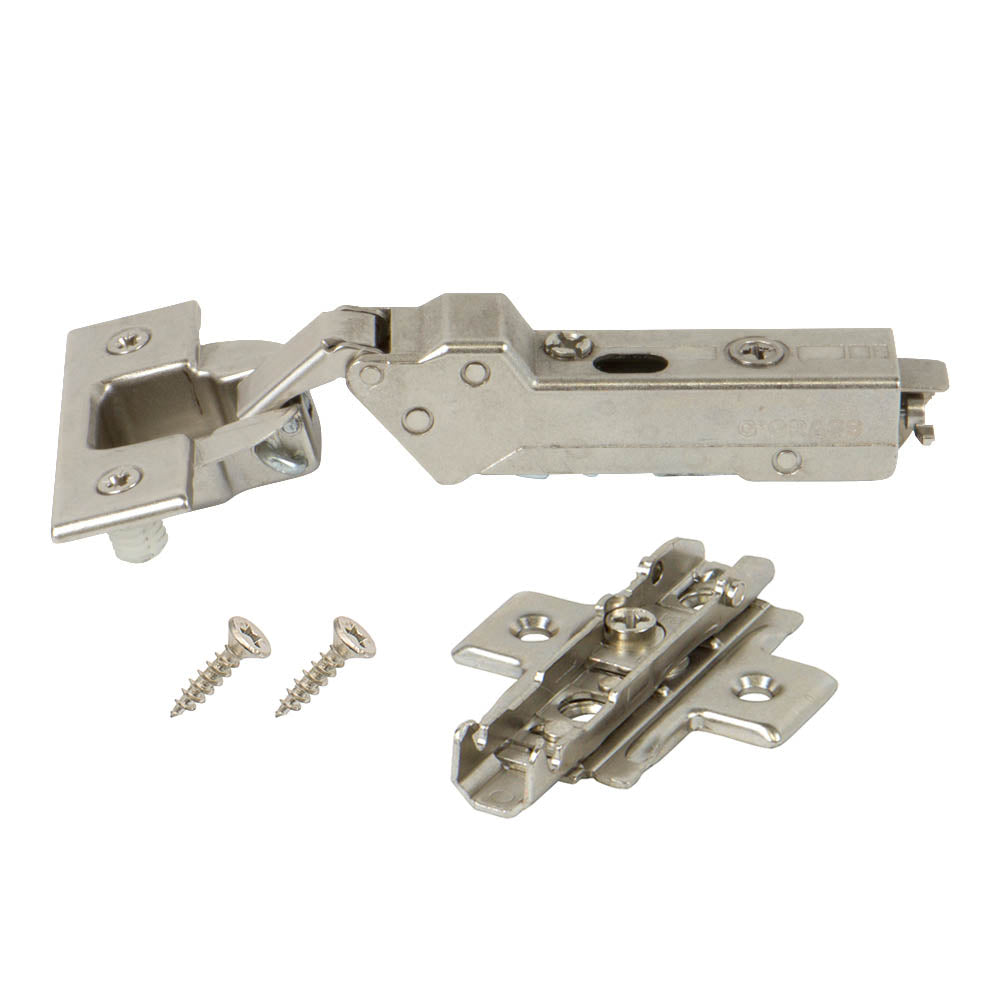

    • 1 x Grass Tiomos Half Cranked Soft-Close Hinge
    • 1 x 3mm Frameless Mounting Plate
    • 2 x #6 Screws for the Mounting Plate
    • 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).

    Available for purchase separately:

    • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
    • #6 flat head wood screws for the hinge side, can be used in place of the included plastic dowels and dowel screws (SKU 652360)
    • Restriction clip. Limits angle of opening to 85 degrees (SKU 701349)
    • 35mm Forstner Bit, for new installations (SKU 204000)
    Grass
    42mm Hinge: F028138343
    45mm Hinge: F028138525
    3mm Plate: F058139748
    Nickel
    Steel
    Half Overlay
    Yes
    Yes
    Clip-On
    110 Degrees
    35
    Yes
    Two plastic dowels and dowel screws for the hinge cup and two #6 screws for the mounting plate.
