Grass  |  SKU: 701370, 701800, 652360

Grass 170 Degree Hinge For Face Frame Overlay Cabinets - Bundle

$1277 Per Bundle

One bundle includes 1 hinge, 1 mounting plate, and 2 screws.

Hinge Screw Hole Spacing
Mounting Plate Height

Description

  • Straight Arm 170 degree hinge bundle for face frame cabinets with overlay doors.
  • These hinges can be used to replace old Mepla brand hinges which have a 48mm screw hole center to center spacing.
  • You will no longer find new hinges with "Mepla" stamped on them, as Mepla and Grass merged in 2007 to simply become Grass.
  • Also available in a 42mm screw hole spacing dimension.
  • Please see the "How to Select Your Mounting Plate" document below to verify if this bundle will work for your application and determine which mounting plate is needed.

Features

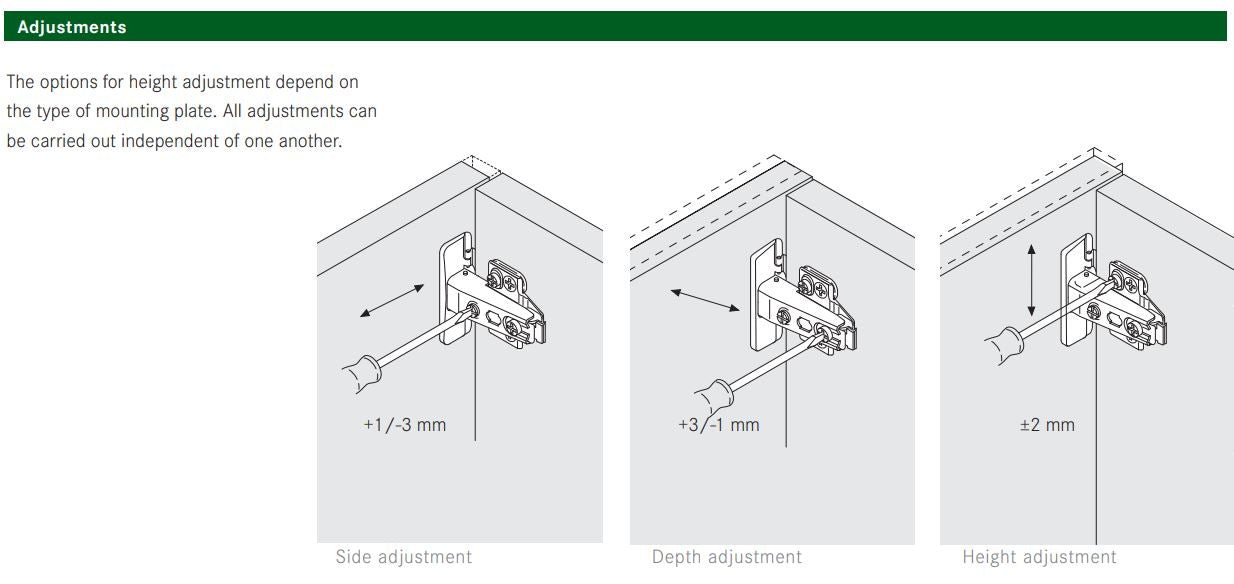

  • Four different adjustments:
    • Depth adjustment (+3mm and -1mm)
    • Side adjustment / Overlay (+1mm and -3mm)
    • Height adjustment (+2mm and -2mm)
    • See the document found under Downloads for information on how to adjust

Details

  • Hinge cup size is 35mm (1-3/8"). Cup depth is 11mm (7/16").
  • Door opening angle is 170 degrees
  • Works for bore distances from 3mm (1/8") to 8mm (5/16")
  • Works for overlay dimensions from 9mm (11/32") to 22mm (7/8")
  • Works for door thicknesses up to 32mm (1-1/4")

What's Included

  • 1 x Grass "Nexis 170" Straight Arm Hinge
  • 1 x Face Frame Mounting Plate (two options available depending on desired overlay dimension)
  • 2 x #6 Screws for the Mounting Plate
  • 2 x Plastic Dowels and Dowels Screws (pre-attached to the hinge) - Dowels are typically used on manufactured wood or MDF doors because they hold better than wood screws. If you have a solid wood door, discard the plastic dowels and use either the dowel screws (blunt and slightly shorter) that come with the hinge or purchase #6 flat head wood screws (two per hinge, our SKU 652360).

Available for purchase separately:

  • Soft-Close Add-On Device - Eliminates slamming of the door and dampens the closing action. (SKU 701807)
  • Plastic Dowels, used on manufactured wood products where wood screws do not hold well (SKU 652368)
  • #6 flat head wood screws for the hinge side, can be used in place of the included plastic dowels and dowel screws (SKU 652360)
  • 35mm Forstner Bit, for new installations (SKU 204000)

Store Policies & Information

Shipping & Delivery
Returns
Contact Us

We have been selling hardware and hinges for over 130 years. When you shop with us, you can count on prompt, personal customer service and reliable support.

Page Code: B10152

  • Manufacturer
    Grass
  • Model Number
    42mm Hinge: F015072949217
    48mm Hinge: F015072840217
    0mm Plate: F061073275236
    4mm Plate: F061073277236
  • Finish Name
    Nickel
  • Material
    Steel
  • Cabinet Door Type
    Half Overlay, Full Overlay
  • Soft Close
    No
  • Self-Closing
    Yes
  • Plate Connection Type
    Clip-On
  • Opening Angle
    170 Degrees
  • Cup Diameter
    35mm
  • Screw Hole Spacing
    42mm (1-5/8"), 48mm (1-7/8")
  • Mounting Hardware Included
    Yes
  • Mounting Hardware Type
    Two plastic dowels and dowel screws for the hinge cup and two #6 x 5/8" screws for the mounting plate.
